Threaded Angle Type Fire Valve

VKYD-16

DATASHEET

PRODUCT FEATURES

TECHNICAL SPECIFICATIONS

PRODUCT DESCRIPTIONS

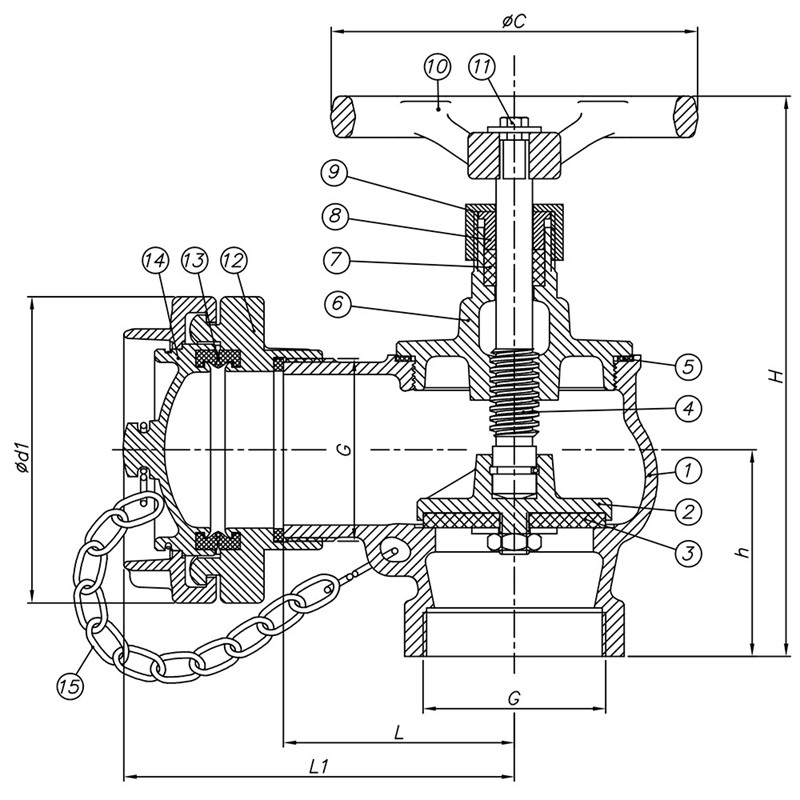

NO	PART NAME	MATERIAL	NO	PART NAME	MATERIAL
1	Body	Bronze Rg5 / CuSn10 / GS-C25	9	Glnad Nut	Brass Ms58
2	Disc	Bronze Rg5 / CuSn10 / GS-C25	10	Handwheel	GG 25 / Bronze Rg5
3	Seal	NBR / EPDM	11	Bolt	A2 (SS304)
4	Stem	Cu Zn39Pb3 / SS 420 / SS316	12	Fixed Coupling	Bronze Rg5 / Aluminum
5	Gasket	NBR / EPDM / Klingerite	13	Seal	NBR / EPDM
6	Bonnet	Bronze Rg5 / CuSn10 / GS-C25	14	Blind Coupling	Bronze Rg5 / Aluminum
7	Packing	Graphite / PTFE	15	Chain / Rope	SS
8	Gland	Brass Ms58 / SS420

Nominal Diameter		Valve Dimensions DIN 86211							Weight


DN	Size	L	L1	h	H (C/O)	G	d1	C	kg
40	1-1/2"	75	145	60	195/210	1-1/2"	98	140	4,5
50	2”	75	145	70	205/220	2”	98	140	5
65	2-1/2"	95	160	85	230/250	2-1/2"	126	150	7,8

Anma Basıncı	:	PN 10-16
Ölçü Aralığı	:	DN40-DN50-DN-65
Ölçüler	:	DIN 86211
Flanş	:	DIN EN 10226-1 (Threaded)
BSB İç Dişli Giriş
BSB Dış Dişli Çıkış

Seçenekler

Flanş Seçenekleri:

:

İngiliz Kaplin,Nor Kaplin,Nakajima Kaplin,Bronz Volan

ANSI,JIS,BS ve VG
