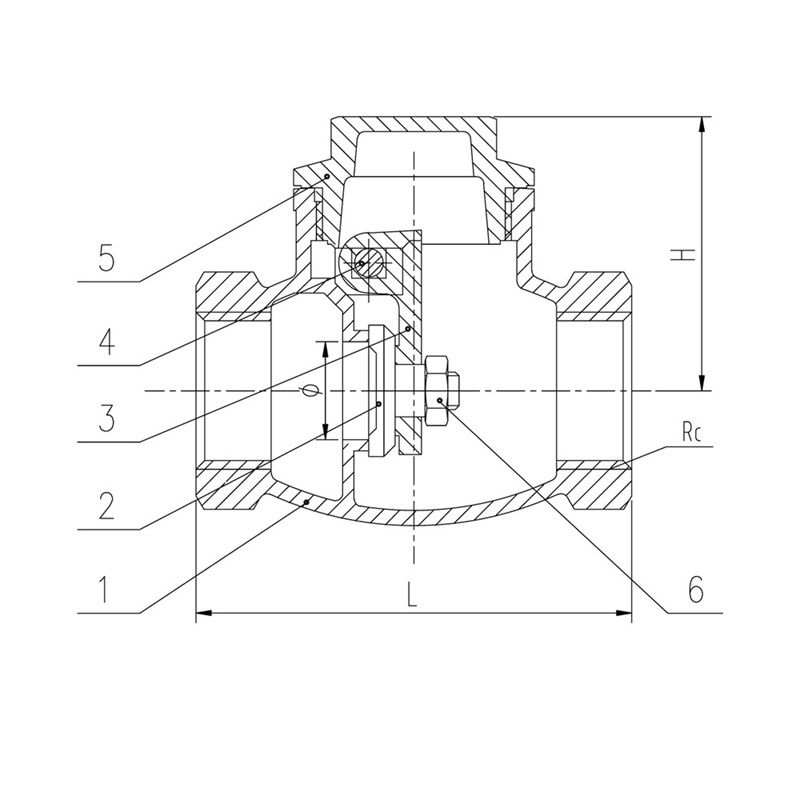

NO | PART NAME | MATERIAL |
|---|---|---|
1 | Body | Bronze Rg5 |
2 | Disc | CuZn39Pb3 |
3 | Hinge | CuZn39Pb3 |
4 | Pin | SS420 |
5 | Bonnet | Bronze Rg5 |
6 | Nut | CuZn39Pb3 |
| Nominal Pressure | Nominal Diameter | Valve Dimensions | |||
|---|---|---|---|---|---|
| PN | DN | L | H | Ø | Rc |
| 20 | 15 | 58 | 37 | 13 | 1/2" |
| 20 | 66 | 43 | 19 | 3/4" | |
| 25 | 76 | 49 | 25 | 1" | |
| 32 | 88 | 57,5 | 32 | 1-1/4" | |
| 40 | 96 | 63 | 39 | 1-1/2" | |
| 50 | 112 | 72 | 50 | 2" | |
| Pressure Rate | : | 20 Bar |
| Size Range | : | DN15-DN50 |
| Ends | : | BSP |
| Temperature | : | <170 Cº |
| Application | : | Water, Oil and Gas. |
