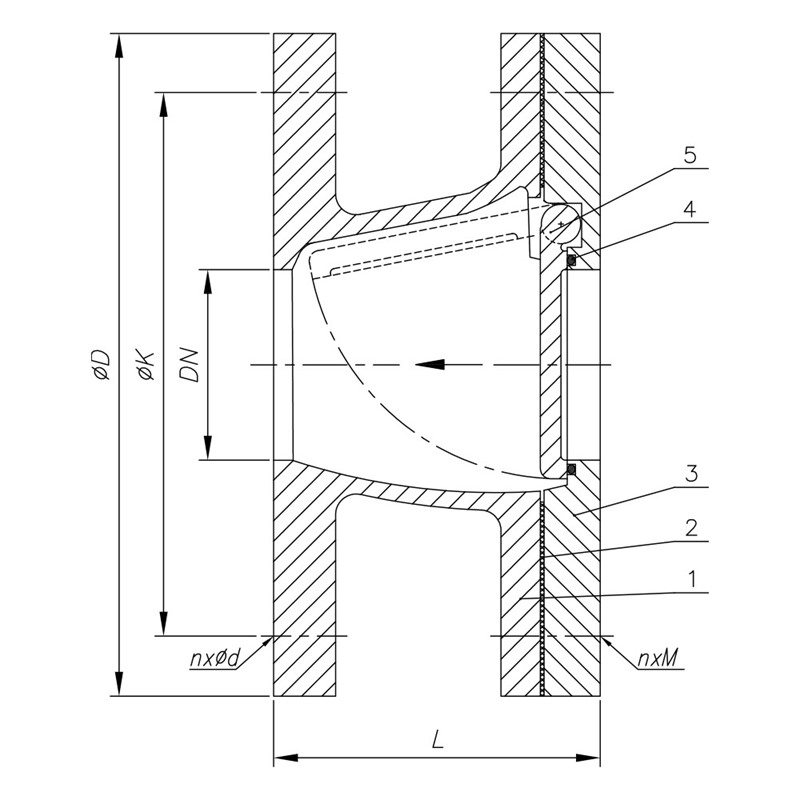

| NO | Part Name | Material |
|---|---|---|
| 1 | Body | Bronze RG5 (CuSn5Zn5Pb5-C) |
| 2 | Disc | Bronze RG5 (CuSn5Zn5Pb5-C) |
| 3 | Disc Seal (o-ring) | NBR |
| 4 | Body gasket | NBR |

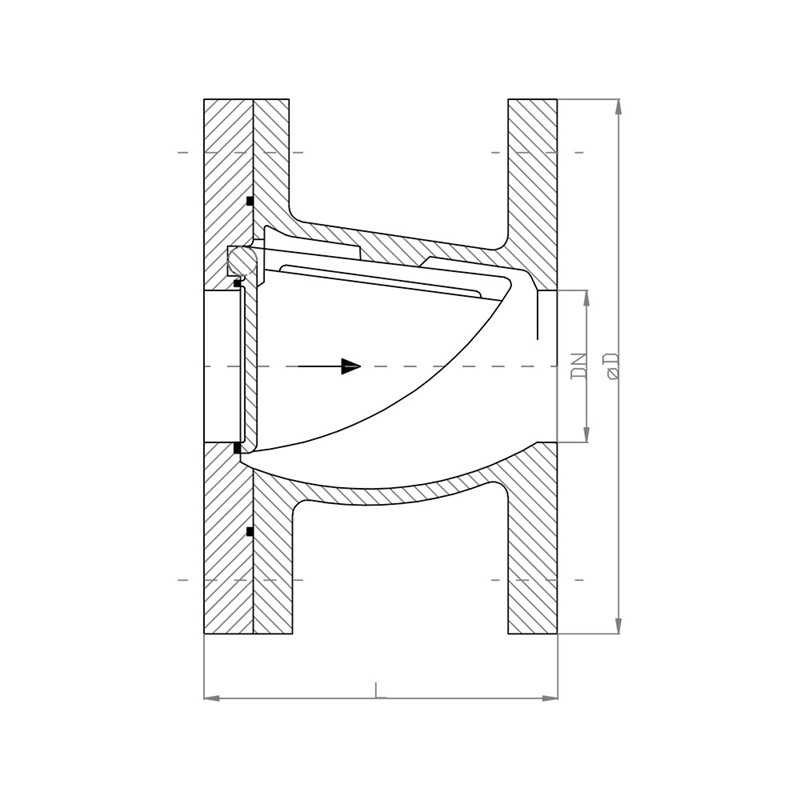

| Dimensions | |||
|---|---|---|---|
| DN | 25 | 32 | 40 |
| ØD | 115 | 140 | 150 |
| L | 70 | 75 | 80 |
| KG | 3 | 5 | 6 |
| Dimensions | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 |
| ØD | 95 | 105 | 115 | 140 | 150 | 165 | 185 | 200 | 220 | 250 | 285 | 340 | 395 | 445 |
| L | 65 | 65 | 70 | 75 | 80 | 85 | 105 | 125 | 145 | 170 | 200 | 255 | 310 | 360 |
| KG | 2.1 | 2.5 | 3 | 5 | 6 | 7 | 9 | 11 | 16 | 21 | 29 | 44 | 64 | 79 |

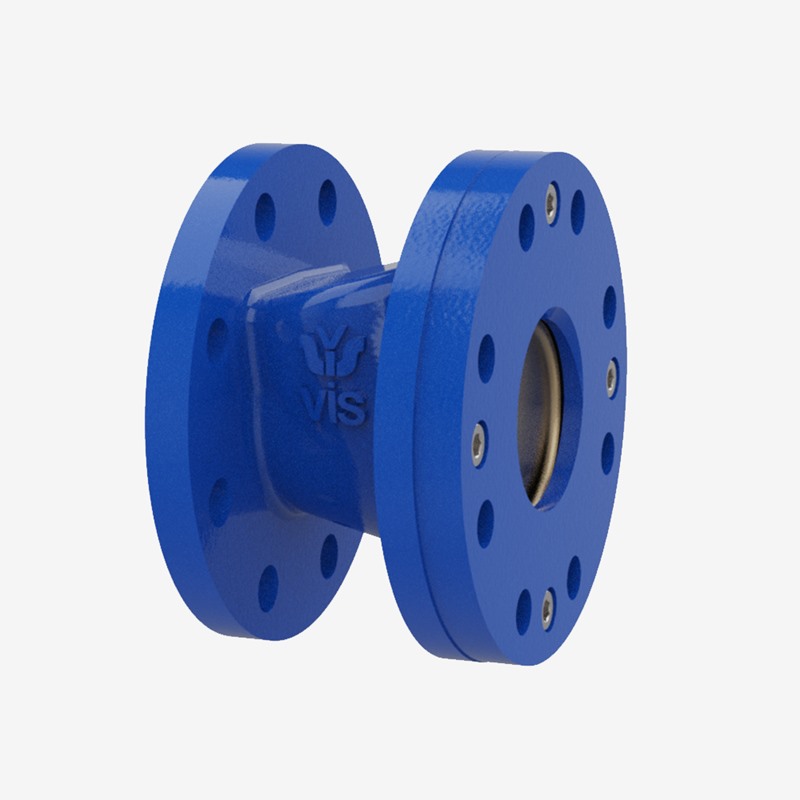

| Pressure | : | PN16 |
| Flanged Ends | : | DIN, ANSI, JIS Flanged |
| Materials | : | Cast Iron, Ductile Iron, Cast Steel, Bronze are available |
| Test | : | EN 12266 |
