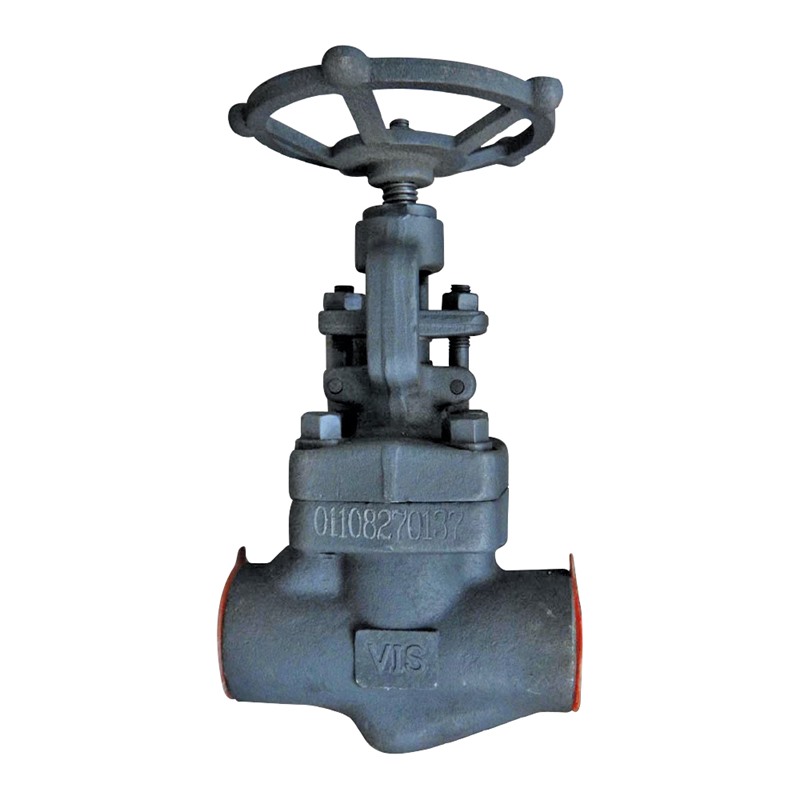

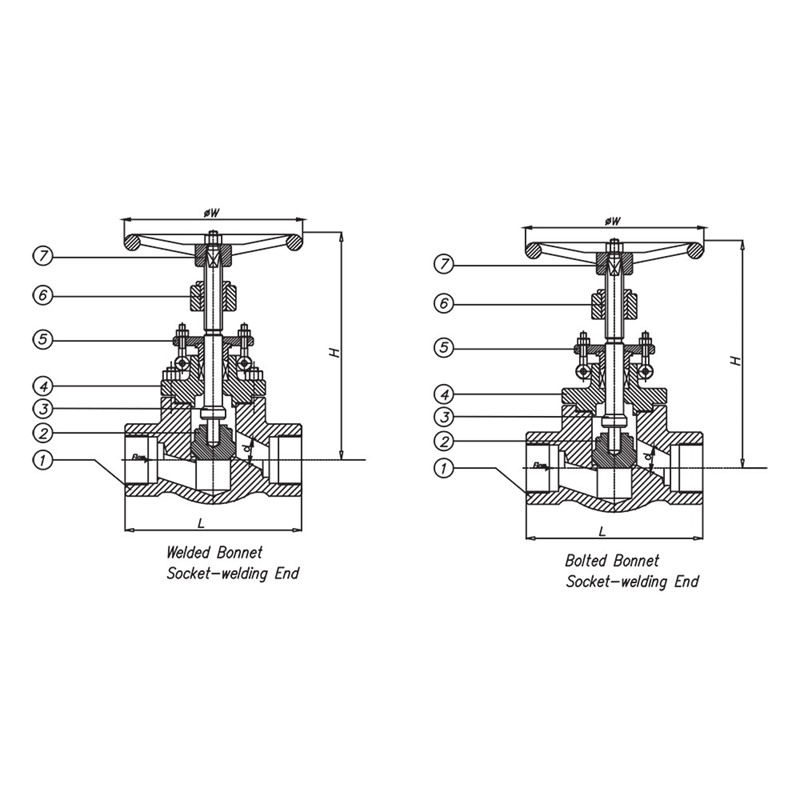

| Part Name | Material | |||
|---|---|---|---|---|
| 1 | Body | ASTM A105 | ASTM A182F304 | ASTM A182F316 |
| 2 | Disc | ASTM A105 | ASTM A182F304 | ASTM A182F316 |
| 3 | Stem | ASTM A182F6 | ASTM A182F304 | ASTM A182F316 |
| 4 | Bonnet | ASTM A105 | ASTM A182F304 | ASTM A182F316 |
| 5 | Gland Flange | ASTM A105 | ASTM A182F304 | ASTM A182F316 |
| 6 | Stem Nut | ASTM A276410 | ||
| 7 | Handwheel | ASTM A197 | ||
| Nominal Pressure | Nominal Diameter | Valve Dimensions (mm) | NPT | Weight (kg) | ||||
|---|---|---|---|---|---|---|---|---|
| DN | NPS | L (RF) | d | H | W | |||
| 150-800 | 15 | 1/2" | 79 | 10 | 158 | 100 | 1/2" | 2.0 |
| 20 | 3/4" | 92 | 13 | 158 | 100 | 3/4" | 2.2 | |
| 25 | 1 | 111 | 17.5 | 192 | 125 | 1" | 2.5 | |
| 32 | 1 1/4" | 120 | 23 | 227 | 160 | 1 1/4" | 5.5 | |
| 40 | 1 1/2" | 152 | 28.5 | 240 | 160 | 1 1/2" | 7.0 | |
| 50 | 2" | 172 | 35 | 279 | 180 | 2" | 11.5 | |
| 900-1500 | 15 | 1/2" | 92 | 10 | 187 | 125 | 1/2" | 3.5 |
| 20 | 3/4" | 111 | 13 | 187 | 125 | 3/4" | 4.0 | |
| 25 | 1" | 120 | 17.5 | 227 | 160 | 1" | 6.3 | |
| 32 | 1 1/4" | 152 | 23 | 242 | 160 | 1 1/4" | 8.0 | |
| 40 | 1 1/2" | 172 | 28.5 | 278 | 180 | 1 1/2" | 12.5 | |
| 50 | 2" | 220 | 35 | 325 | 200 | 2" | 19.5 | |
| 2500 | 15 | 1/2" | 150 | 11 | 293 | 160 | 1/2" | 10.8 |
| 20 | 3/4" | 150 | 11 | 293 | 160 | 3/4" | 12.0 | |
| 25 | 1" | 170 | 14 | 344 | 200 | 1" | 13.5 | |
| 32 | 1 1/4" | 200 | 16 | 383 | 250 | 1 1/4" | 18.5 | |
| 40 | 1 1/2" | 200 | 25 | 383 | 250 | 1 1/2" | 22.0 | |
| 50 | 2" | 250 | 28 | 442 | 300 | 2" | 37.0 | |
| Design and Manufacture | : | API 602 |
| Inspection and Tests | : | API 598 |
| Socket-weld dimension | : | ASME B16.11 |
| End threads dimension | : | ASME B1.20.1 |
| Pressure-temperature ratings | : | ASME B16.34 |
