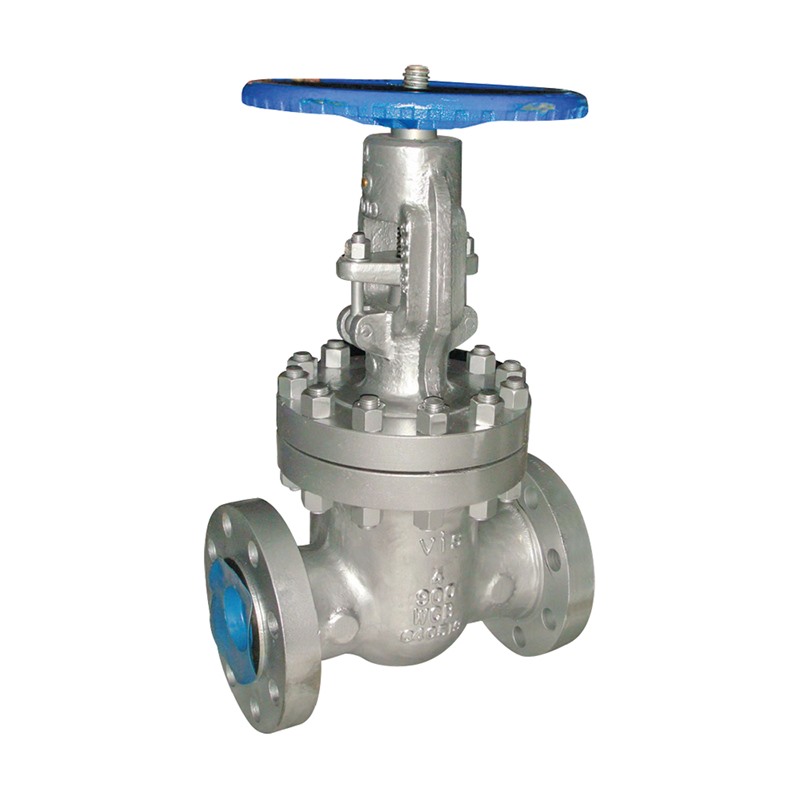

API Gate Valves

VYM-C1500 / VYM-C2500

DATASHEET

TECHNICAL SPECIFICATIONS

PRODUCT DESCRIPTIONS

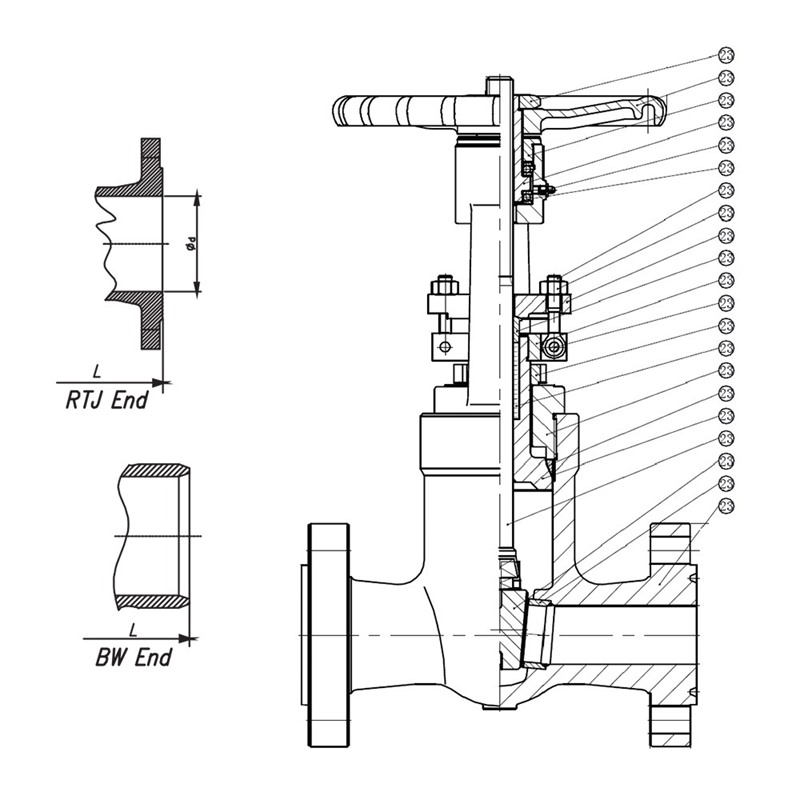

Nominal Pressure	Nominal Diameter		Valve Dimensions (mm)									Weight (kg)
	DN	NPS	L				d	H	H1	W	W1	Weight (kg)
	DN	NPS	RF	RTJ	BW (BB)	BW (PSB)	d	H	H1	W	W1	H.W	G.O
Class 1500	50	2	368	371	368	216	47	430	-	280	-	70	-
	65	2 1/2	419	422	419	254	57	490	-	300	-	110	-
	80	3	470	473	470	305	69	540	680	350	310	175	202
	100	4	546	549	546	406	92	650	810	400	310	270	300
	125	5	673	676	673	483	125	780	920	450	310	378	405
	150	6	705	711	705	559	136	835	1035	500	460	520	575
	200	8	832	841	832	711	177	925	1180	750	530	820	915
	250	10	991	1000	991	864	222	1230	1525	900	600	1560	1750
	300	12	1130	1146	1130	991	263	-	1620	-	600	-	2120
	350	14	1257	1276	1257	1067	288	-	1905	-	600	-	3306
	400	16	1384	1407	1384	1194	330	-	2050	-	600	-	3450

Nominal Pressure	Nominal Diameter		Valve Dimensions (mm)									Weight (kg)
	DN	NPS	L				d	H	H1	W	W1	Weight (kg)
	DN	NPS	RF	RTJ	BW (BB)	BW (PSB)	d	H	H1	W	W1	H.W	G.O
Class 2500	50	2	451	454	451	279	38	490	580	280	310	100	130
	65	2 1/2	508	514	508	330	47	580	630	300	310	150	180
	80	3	578	584	578	368	57	630	765	350	310	245	275
	100	4	673	683	673	457	72	725	850	400	310	390	420
	125	5	794	807	794	533	96	900	960	500	460	550	580
	150	6	914	927	914	610	111	1040	1100	600	530	780	835
	200	8	1022	1038	1022	762	146	1150	1150	750	460	1260	1355
	250	10	1270	1292	1270	914	184	1400	1460	900	600	2380	2565
	300	12	1422	1445	1422	1041	218	-	1660	-	600	-	3250

Design and Manufacture	:	API 600,API6D
Inspection and Tests	:	API598,API6D,API600
End Flange Dimension	:	ASME B16.5
End Flange Dimension	:	ASME B16.47 A, MSS SP-4
End Flange Dimension	:	ASME B16.47 B, API605
BW end Dimension	:	ASME B16.25
Face to Face	:	ASME B16.10
Pressure-temperature ratings	:	ASME B16.34
