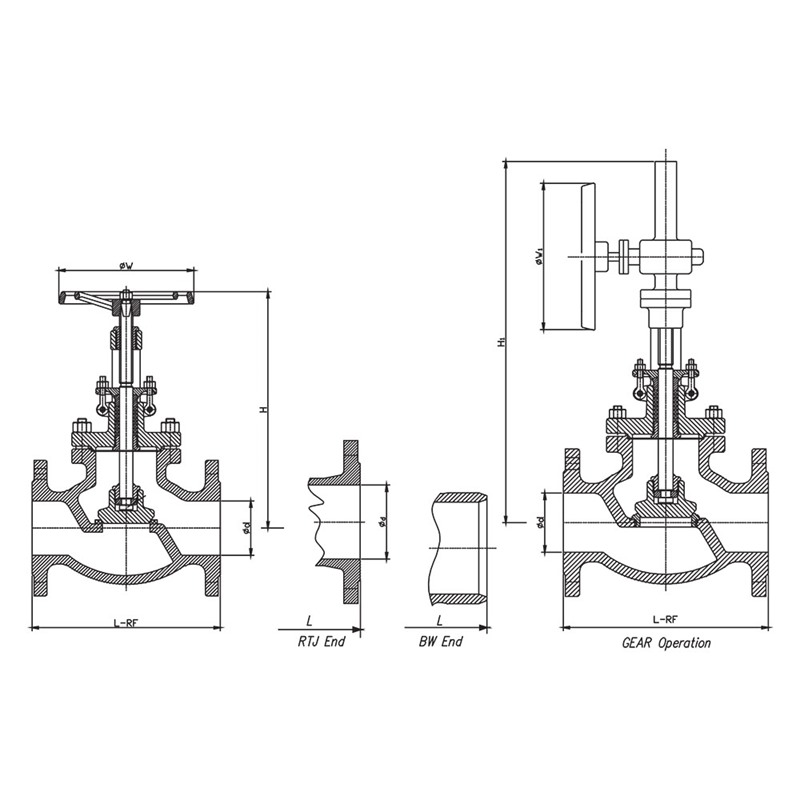

| Nominal Pressure | Nominal Diameter | Valve Dimensions (mm) | Weight (kg) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN | NPS | L (RF) | L (RTJ) | L (BW) | d | H | H1 | W | W1 | H.W | G.O | |
| 600 | 50 | 2 | 292 | 295 | 292 | 51 | 360 | - | 250 | - | 35 | - |
| 65 | 2 1/2 | 330 | 333 | 330 | 64 | 410 | - | 280 | - | 42 | - | |
| 80 | 3 | 356 | 359 | 356 | 76 | 465 | - | 280 | - | 66 | - | |
| 100 | 4 | 432 | 435 | 432 | 102 | 545 | 575 | 400 | 310 | 117 | 148 | |
| 125 | 5 | 508 | 511 | 508 | 127 | 625 | 660 | 500 | 310 | 243 | 208 | |
| 150 | 6 | 559 | 562 | 559 | 152 | 785 | 975 | 550 | 460 | 263 | 334 | |
| 200 | 8 | 660 | 664 | 660 | 200 | 930 | 1120 | 650 | 460 | 469 | 544 | |
| 250 | 10 | 787 | 791 | 787 | 248 | - | 1219 | - | 600 | - | 875 | |
| 300 | 12 | 838 | 841 | 838 | 298 | - | 1570 | - | 600 | - | 1280 | |
| 900 | 50 | 2 | 368 | 371 | 368 | 48 | 480 | - | 350 | - | 55 | - |
| 65 | 2 1/2 | 419 | 422 | 419 | 57 | 520 | - | 350 | - | 68 | - | |
| 80 | 3 | 381 | 384 | 381 | 73 | 564 | 630 | 400 | 310 | 113 | 128 | |
| 100 | 4 | 457 | 460 | 457 | 98 | 685 | 720 | 450 | 310 | 179 | 210 | |
| 125 | 5 | 559 | 562 | 559 | 127 | 780 | 840 | 550 | 460 | 270 | 325 | |
| 150 | 6 | 610 | 613 | 610 | 146 | 950 | 1015 | 650 | 460 | 429 | 480 | |
| 200 | 8 | 737 | 740 | 737 | 190 | 1050 | - | 700 | - | 815 | - | |
| 1500 | 50 | 2 | 368 | 371 | 368 | 48 | 505 | - | 350 | - | 137 | - |
| 65 | 2 1/2 | 419 | 422 | 419 | 57 | 550 | - | 400 | - | 141 | - | |
| 80 | 3 | 470 | 473 | 470 | 70 | 630 | 765 | 450 | 310 | 261 | 320 | |
| 100 | 4 | 546 | 549 | 546 | 92 | 808 | 890 | 460 | 310 | 336 | 397 | |
| 150 | 6 | 705 | 711 | 705 | 137 | 930 | 1020 | 610 | 530 | 966 | 1035 | |
| 200 | 8 | 832 | 841 | 832 | 178 | 1140 | 1230 | 610 | 530 | 1210 | 1280 | |
