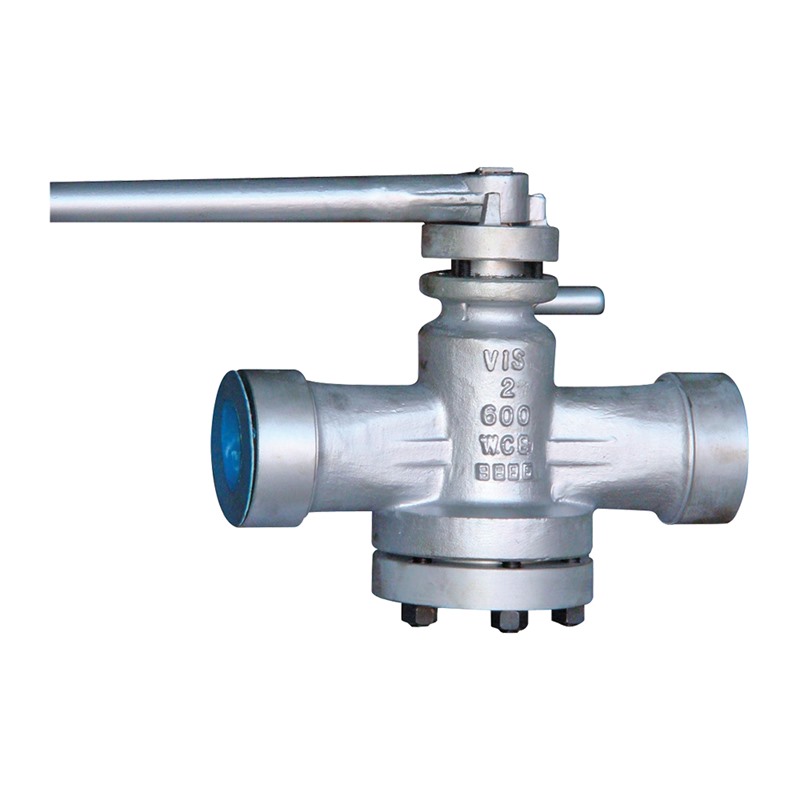

API Lucricated Plug Valve

PRODUCT FEATURES

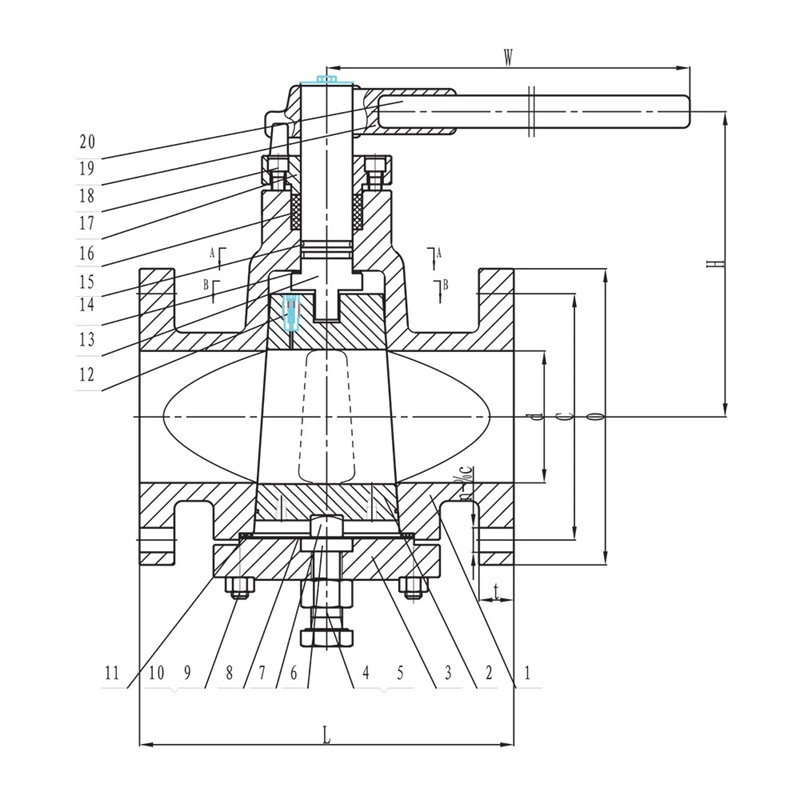

Nominal Diameter		Class 150 Valve Dimensions (mm)				Wt(kg) W.H	Class 300 Valve Dimensions (mm)				Wt(kg) W.H
DN	NPS	L	d	H	W	Wt(kg) W.H	L	d	H	W	Wt(kg) W.H
15	1.2	108	13	180	400	10	140	13	180	400	12
20	3.4	117	19	180	400	12	152	19	180	400	14
25	1	127	25	165	500	14	165	25	185	500	16
32	1 1/4	140	32	200	500	17	178	32	200	600	19
40	1 1/2	165	38	214	600	19	190	38	210	600	21
50	2	178	49	215	600	21	216	49	215	820	24
65	2 1/2	190	62	250	820	29	241	62	250	1000	31
80	3	203	74	270	820	33	283	74	270	1000	36
100	4	229	100	300	300	48	305	100	300	300	61
125	5	254	127	340	300	75	381	127	340	300	86
150	6	267	150	365	320	98	403	150	365	320	130
200	8	292	201	400	320	125	419	201	400	320	190
250	10	330	252	450	350	171	457	252	450	350	255
300	12	356	303	510	380	230	502	303	510	380	380
350	14	381	334	590	380	370	762	334	590	380	560

Standards
Design standard	:	API 599, API 6D
Face to face	:	ASME B16.10.API6D
Butt weldinng end	:	ASME B16.25
End flange	:	ASME B16.5
Test and Inspection	:	API 598
Specifications
Construction type	:	Pressure Balance; Inverted Plug Valve
Opertior type	:	Handwheel, Gear Operation
