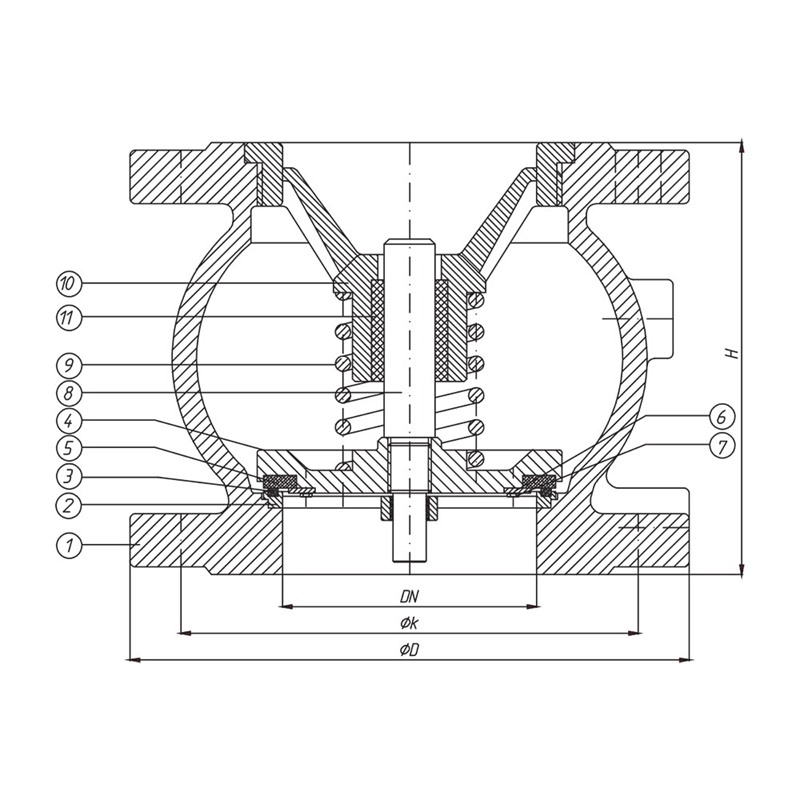

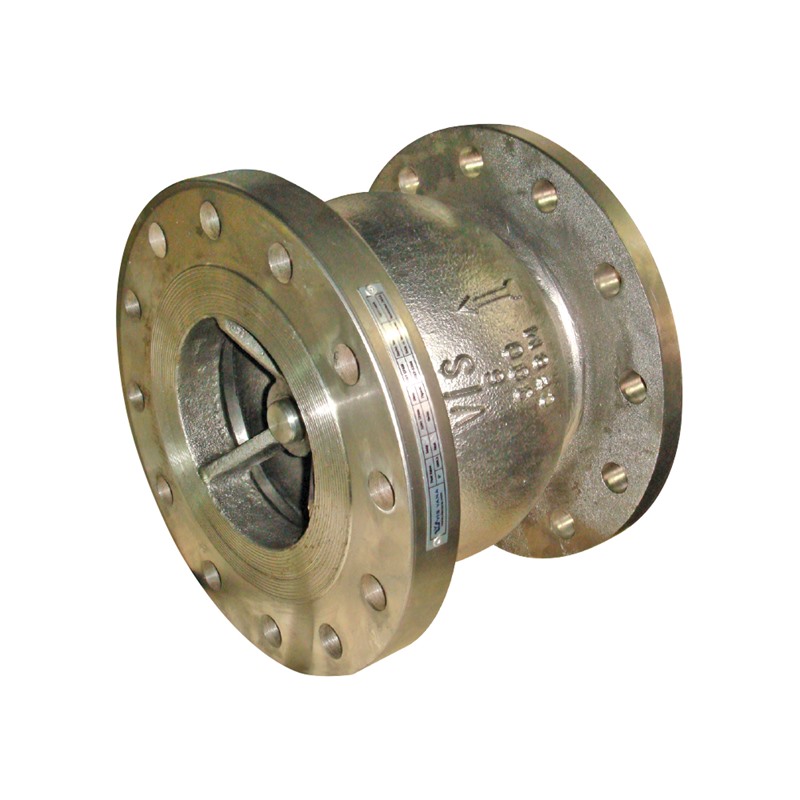

| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | GG25 / GGG-40 / GS-C 25 / SS 304 / 316 |
| 2 | Small Guide | GG25 / GGG-40 / GS-C 25 / SS 304 / 316 |
| 3 | Seat | Brass / Bronze / SS |
| 4 | Disc | GG-25 / GGG-40 / GS-C 25 / Branze / SS |
| 5 | Seal | EPDM / NBR / Teflon / Bronze / SS |
| 6 | Bolt | St, SS |
| 7 | Plate | St, SS |
| 8 | Stem | Brass / SS |
| 9 | Spring | SS |
| 10 | Big Guide | GG25 / GGG-40 / GS-C 25 / SS 304 / 316 |
| 11 | Bush | Brass / Bronze / Teflon |
| PN | Disc test x 1,1 | Body test x 1,5 |
|---|---|---|
| PN 10 | 11 Bar | 15 Bar |
| PN 16 | 18 Bar | 24 Bar |
| PN 25 | 28 Bar | 38 Bar |
| PN 40 | 44 Bar | 60 Bar |
| Nominal Pressure | Nominal Diameter | Valve Dimensions | PN10 Flange Dimensions DIN EN 1092 | PN16 Flange Dimensions DIN EN 1092 | Weight | ||
|---|---|---|---|---|---|---|---|
| PN | DN | L | D | k | D | k | kg |
| 10-16 | 40 | 85 | 150 | 110 | 150 | 110 | 4,2 |
| 50 | 100 | 165 | 125 | 165 | 125 | 5,8 | |
| 65 | 120 | 185 | 145 | 185 | 145 | 8,1 | |
| 80 | 140 | 200 | 160 | 200 | 160 | 10,2 | |
| 100 | 170 | 220 | 180 | 220 | 180 | 14,5 | |
| 125 | 200 | 250 | 210 | 250 | 210 | 24 | |
| 150 | 230 | 285 | 240 | 285 | 240 | 32 | |
| 200 | 288 | 340 | 295 | 340 | 295 | 53 | |
| 250 | 354 | 400 | 350 | 400 | 355 | 94 | |
| 300 | 395 | 455 | 400 | 455 | 410 | 140 | |
| 350 | 472 | 505 | 460 | 520 | 470 | 225 | |
| 400 | 560 | 565 | 515 | 580 | 525 | 312 | |
| 500 | 670 | 670 | 620 | 715 | 650 | 540 | |
| Pressure Rate | : | PN10-16-25-40 |
| Size Range | : | DN40-DN500 |
| Flange Ends | : | DIN EN 1092, BS 4504 |
| Test | : | EN 12266-A |
