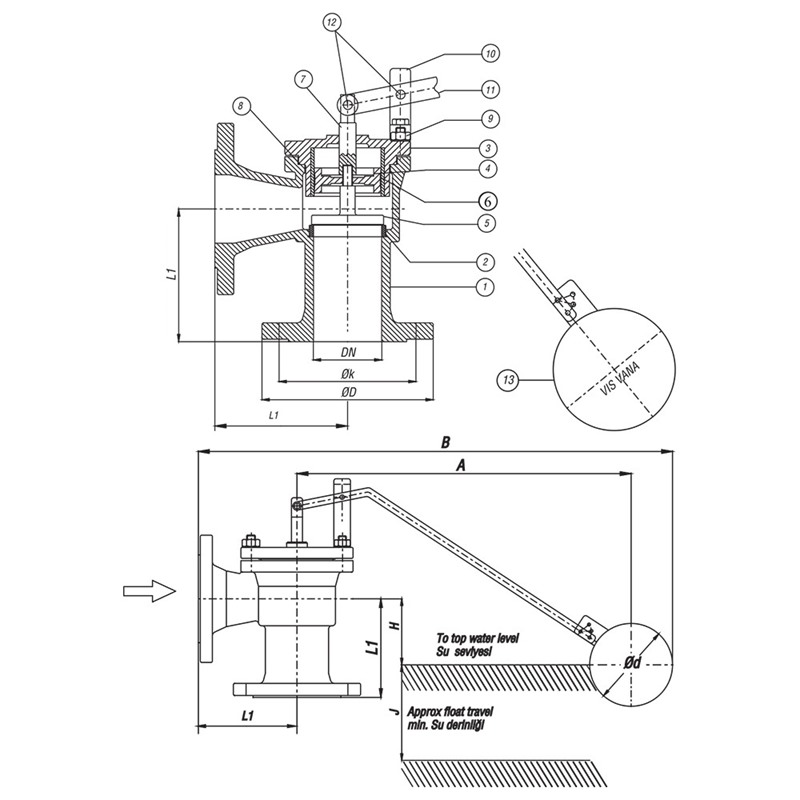

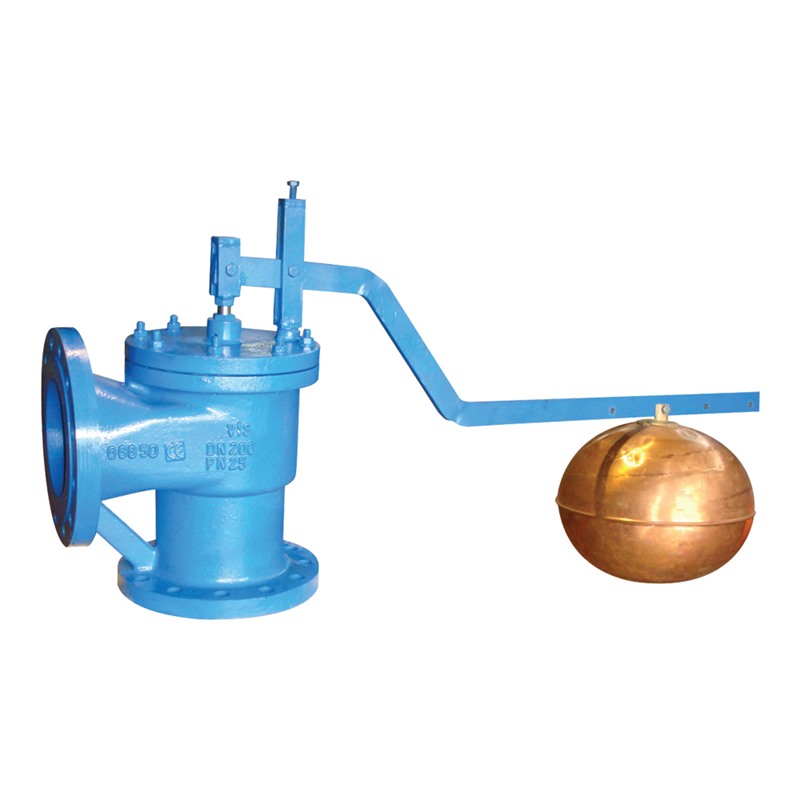

| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | GG 25 / GGG-40 |
| 2 | Seats Ring | Ms 58 / 1,4021 |
| 3 | Bonnet | GG 25 / GGG-40 |
| 4 | Seat | Ms 58 / 1,4021 |
| 5 | Disc | Ms 58 / 1,4021 |
| 6 | Cup Washer | St 37 / NBR |
| 7 | Stem | 1,4021 |
| 8 | Seal | EPDM |
| 9 | Bolt | 8,8 |
| 10 | Fulcrum | GG 25 / GGG-40 |
| 11 | Lever | St 37 |
| 12 | Pin | 1,4021 |
| 13 | Float | Bronze / St 337 / SS420 / SS304 |
| Nominal Pressure | Nominal Diameter | Valve Dimensions DIN 3356 DIN 3202-F32 | PN10 Flange Dimensions DIN 2501 / DIN EN 1092 - 2 | PN16 Flange Dimensions DIN 2501 / DIN EN 1092 - 2 | Weight | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PN | DN | L1 | A | B | H | J | Ød | D | k | D | k | kg |
| 10-16 | 40 | 115 | 1295 | 1555 | 172 | 450 | 280 | 150 | 110 | 150 | 110 | 19 |
| 50 | 125 | 1295 | 1555 | 172 | 450 | 280 | 165 | 125 | 165 | 125 | 20 | |
| 65 | 145 | 1460 | 1740 | 305 | 546 | 320 | 185 | 145 | 185 | 145 | 30 | |
| 80 | 155 | 1460 | 1740 | 305 | 546 | 320 | 200 | 160 | 200 | 160 | 35 | |
| 100 | 175 | 1535 | 1855 | 330 | 546 | 350 | 220 | 180 | 220 | 180 | 55 | |
| 125 | 200 | 1850 | 2260 | 340 | 700 | 350 | 250 | 210 | 250 | 210 | 70 | |
| 150 | 225 | 1850 | 2260 | 340 | 700 | 400 | 285 | 240 | 285 | 240 | 100 | |
| 200 | 275 | 2145 | 2675 | 340 | 920 | 400 | 340 | 295 | 340 | 295 | 180 | |
| 250 | 325 | 2545 | 3070 | 455 | 1230 | 500 | 395 | 350 | 405 | 355 | 270 | |
| 300 | 375 | 3035 | 3620 | 455 | 1580 | 500 | 445 | 400 | 460 | 410 | 370 | |
| Design | : | DIN 3356 |
| Face to Face | : | EN 558 Serie 8, DIN 3202 F32 |
| Pressure | : | PN 10-16 |
| Size Range | : | DN40 - DN600 |
| Flange Ends | : | EN 1092-2/B |
| Tests | : | EN 12266 |
