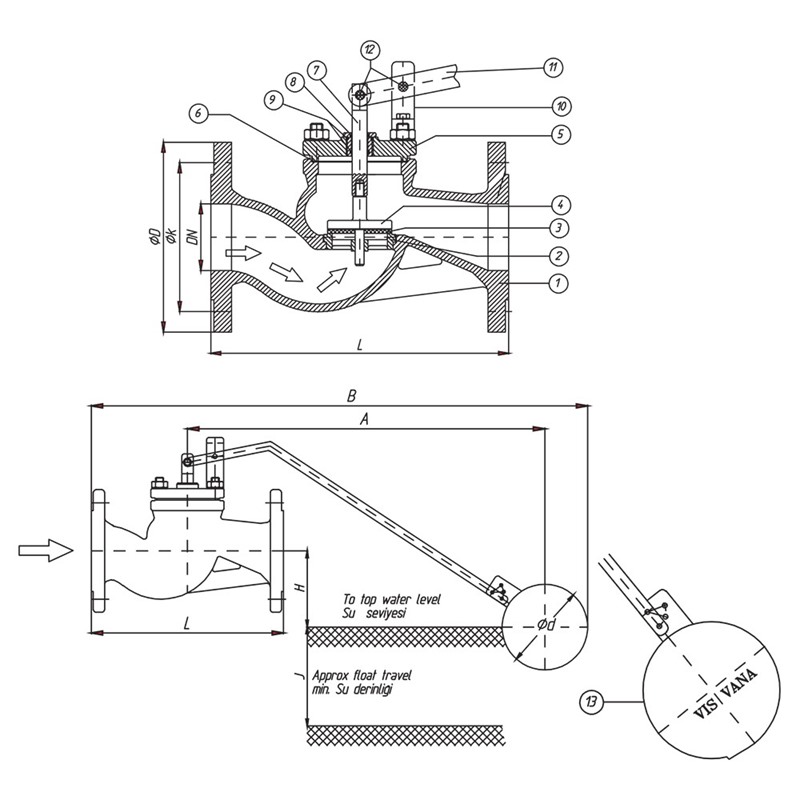

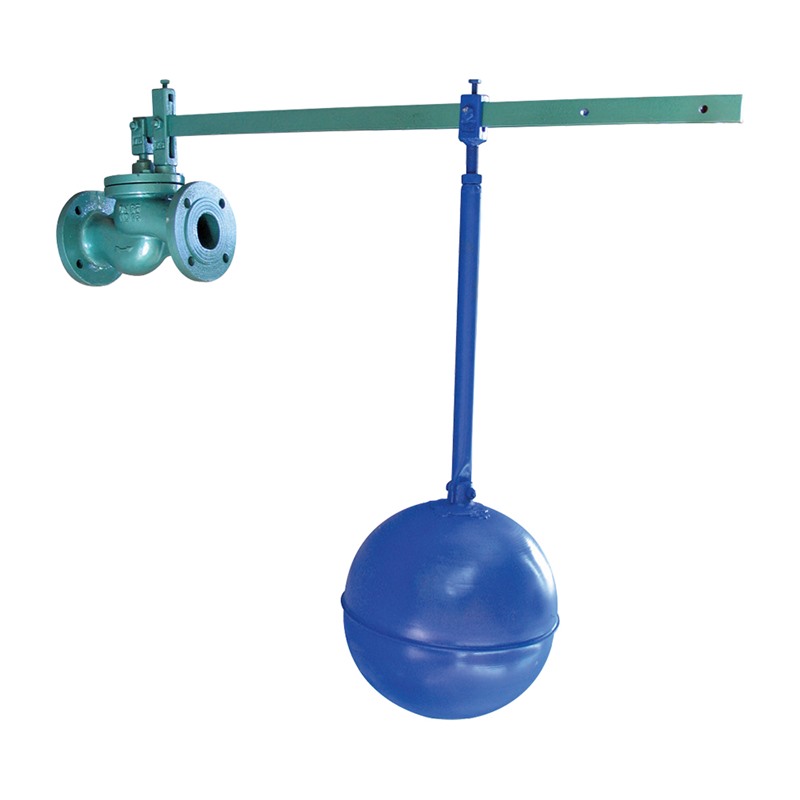

| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | GG 25 / GGG-40 |
| 2 | Seat Ring | Ms 58 / 1,4021 |
| 3 | Seal | EPDM |
| 4 | Disc | Ms 58 / 1,4021 |
| 5 | Bonnet | GG 25 / GGG-40 |
| 6 | Gasket | EPDM |
| 7 | Stem | 1,4021 |
| 8 | Packing Nut | Ms 58 / 1,4021 |
| 9 | O-Ring | EPDM |
| 10 | Fulcrum | St 37 |
| 11 | Lever | St 37 |
| 12 | Pin | 1,4021 |
| 13 | Float | Copper/AISI 304-316 |
| Nominal Pressure | Nominal Diameter | Valve Dimensions DIN 3202/2-F1 DIN EN 558-1-1 | PN10 Flange Dimensions DIN EN 1092 | PN16 Flange Dimensions DIN EN 1092 | Weight | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PN | DN | L | A | B | H | J | Ød | D | k | Øxn | D | k | Øxn | kg |
| 10-16 | 40 | 200 | 1295 | 1562 | 172 | 463 | 280 | 150 | 110 | Ø18x4 | 150 | 110 | Ø18x4 | 19 |
| 50 | 230 | 1295 | 1562 | 172 | 463 | 280 | 165 | 125 | Ø18x4 | 165 | 125 | Ø18x4 | 20 | |
| 65 | 290 | 1460 | 1755 | 305 | 545 | 320 | 185 | 145 | Ø18x4 | 185 | 145 | Ø18x4 | 30 | |
| 80 | 310 | 1460 | 1755 | 305 | 545 | 320 | 200 | 160 | Ø18x8 | 200 | 160 | Ø18x8 | 35 | |
| 100 | 350 | 1535 | 1890 | 330 | 546 | 350 | 220 | 180 | Ø18x8 | 220 | 180 | Ø18x8 | 55 | |
| 125 | 400 | 1850 | 2305 | 340 | 721 | 350 | 250 | 210 | Ø18x8 | 250 | 210 | Ø18x8 | 70 | |
| 150 | 480 | 1850 | 2305 | 340 | 721 | 400 | 285 | 240 | Ø22x8 | 285 | 240 | Ø22x8 | 100 | |
| 200 | 600 | 2145 | 2995 | 340 | 907 | 400 | 340 | 295 | Ø22x8 | 340 | 295 | Ø22x12 | 180 | |
| 250 | 730 | 2345 | 3150 | 455 | 1150 | 500 | 400 | 350 | Ø22x12 | 400 | 355 | Ø22x16 | 270 | |
| 300 | 850 | 2995 | 3700 | 455 | 1502 | 500 | 455 | 400 | Ø22x12 | 455 | 410 | Ø22x16 | 370 | |
| Design | : | DIN 3356 |
| Face to Face | : | EN 558 Serie 1, DIN 3202 F1 |
| Pressure | : | PN 10-16 |
| Size Range | : | DN40 - DN60 |
| Flange Ends | : | EN 1092-2/B |
| Tests | : | EN 12266 |
