Gate Valve PN100

VYM-100

DATASHEET

PRODUCT FEATURES

TECHNICAL SPECIFICATIONS

PRODUCT DESCRIPTIONS

DIN 2401 MALZEME VE SICAKLIK BAĞLANTI NORMU

MATERIAL	TEMPERATURE °C
G-SC 25 (GP 240GH+N)	-20° +120°	+200°	+250°	+300°	+350°	+400°
ASTM A Gr. A216 WCB	100 BAR	80 BAR	70 BAR	60 BAR	56 BAR	50 BAR

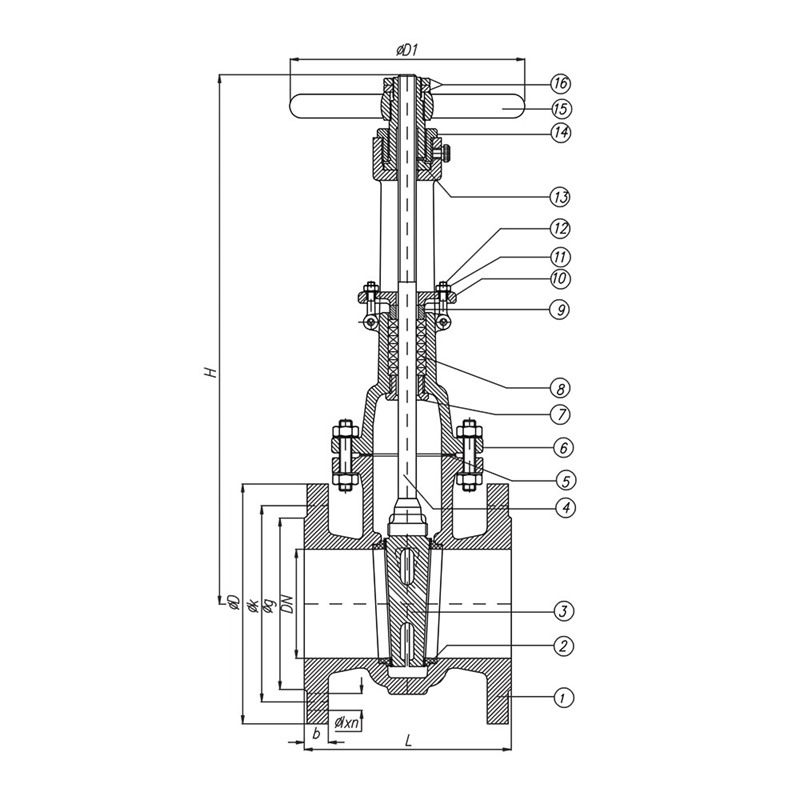

NO	PART NAME	MATERIAL
1	Body	GS-C25(GP240GH)(1.0619)(A216 WCB)/A217 WC6, WC9 / SS304 / SS316
2	Seats	13Cr/Stellite 12/SS304/SS316
3	Wedge	GS-C25(GP240GH)(1.0619)(A216 WCB)/A217 WC6, WC9 / SS304 / SS316
4	Stem	AlSl420(X20Cr13)(A182 F6)SS304/SS316
5	Gasket	Graphite / Graphite + SS304
6	Bonnet	GS-C25(GP240GH)(1.0619)(A216 WCB)/A217 WC6, WC9 / SS304 / SS316
7	Back Seat	13Cr(X20Cr13)(A182 F6)SS304/SS316
8	Packing	Graphite / PTFE
9	Packing Nut	GS-C25(GP240GH)(1.0619)(A216 WCB)/A217 WC6, WC9 / SS304 / SS316
10	Gland Flange	GS-C25(GP240GH)(1.0619)(A216 WCB)/A217 WC6, WC9 / SS304 / SS316
11	Eye Bolt	Cr. Mo Alaşımlı Çelik/Cr Mo Alloy Steel A193 Gr. B7
12	Nut	Carbon Steel A194 Gr. 2H
13	Yoke Nut	Bronze
14	Centering Nut	Bronze
15	Handwheel	Ductlle Iron / Ductile Iron
16	Handwheel Nut	SS420 / Bronze

Nominal Pressure	Nominal Diameter	Valve Dimensions DIN EN 558-1/26			PN100 Flange Dimensions DIN EN 1092-1					Weight
PN	DN	L	H	ØM	ØD	Øk	Øg	b	Ø1xn	kg
100	50	250	490	250	195	145	102	30	Ø22x4	25
	65	290	540	250	220	170	122	34	Ø22x8	32
	80	310	575	310	230	180	138	36	Ø22x8	36
	100	350	675	415	265	210	162	40	Ø30x8	55
	125	400	745	500	315	250	188	40	Ø33x8	88
	150	450	800	500	355	290	218	44	Ø33x12	110
	200	550	890	600	430	360	285	52	Ø36x12	155
	250	650	1050	720	515	430	345	60	Ø39x12	310
	300	750	1200	720	585	500	410	68	Ø42x16	355

Design	:	EN 1171, DIN 3352
Face to Face	:	EN 558 Serie 26 DIN3202 F7
Pressure Ratge	:	PN100
Size Range	:	DN50-DN300
Temperature	:	-20....+400°C
Flange Ends	:	DIN EN 1092-1
Test	:	DIN EN 12266
