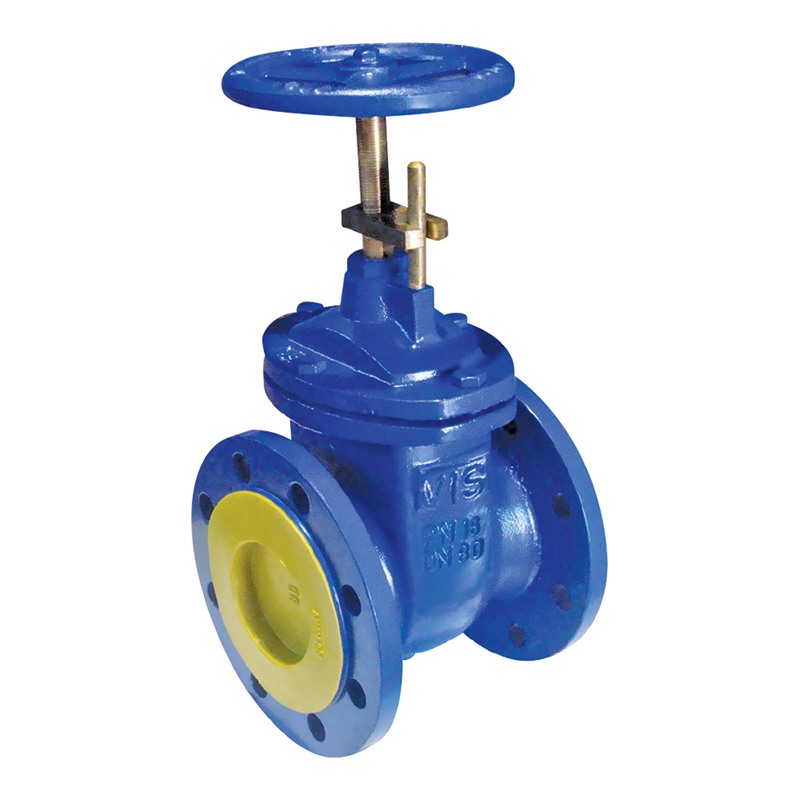

Gate Valve With Indicator

PRODUCT FEATURES

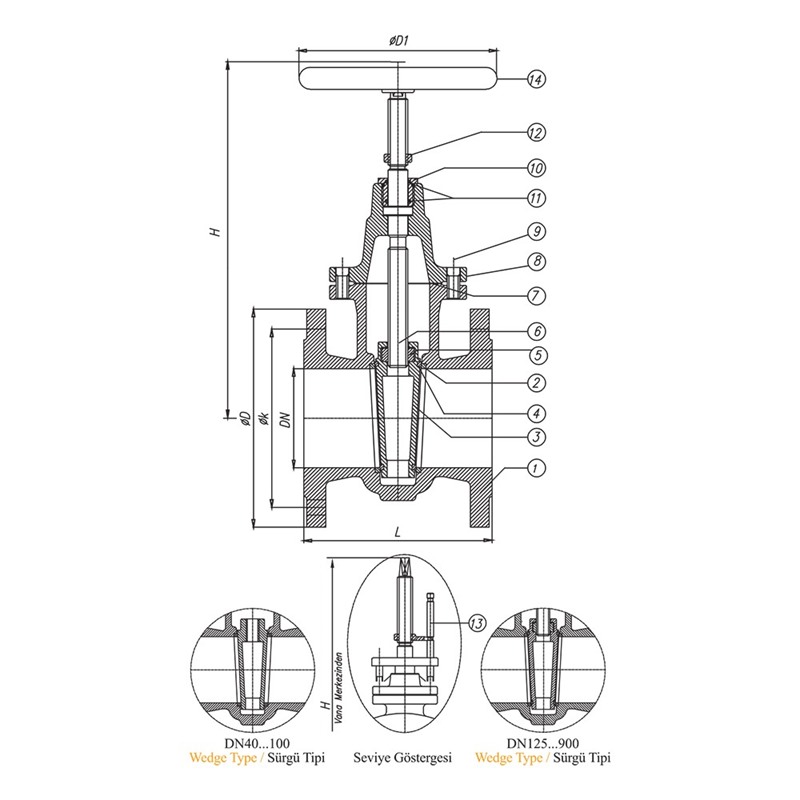

NO	PART NAME	MATERIAL
1	Body	GG 25 / GGG-40 / GGG40.3 / GSC25 / Bronze RG5, RG7, RGl 0/ SS304, SS3l 6
2	Body Seat	Bronze / SS304, SS3l 6
3	Wedge	GG 25 / GGG-40 / GGG40.3 / GSC25 / Bronze RG5, RG7, RGl 0/ SS304, SS3l 6
4	Wedge Seat	Bronze / SS304, SS3l 6 11
5	Stem Nut Only 125... 900	Ms58/Bronze /GGG 40
6	Stem	Ms5 B/Som 59/Cu Zn3 5Ni/CuSn8, CuSn l 0/SS420,SS304,SS3l 6
7	Gasket	EP0M/ NBR / Klingerit / Graphite
8	Bonnet	GG 25 / GGG-40 / GGG40.3 / GSC25 / Bronze RG5, RG7, RGl0/ SS304, SS3l 6
9	Bolt	8.8 / A2 / A4
10	Packing nut	Ms 58/Bronze/S.S
11	O-Ring	EPDM
12	Indicator	Ms 58/ SS420, SS304, SS316
13	Indicator Pin	Ms 58/ SS420, SS304, SS316
14	Handwheel	GG 20

Nominal Pressure	Nominal Diameter	Valve Dimensions DIN EN 1171			PN10 Flange Dimensions DIN 2501 - EN 1092-2		PN16 Flange Dimensions DIN 2501 - EN 1092-2		Weight
PN	DN	L	H	D1	D	k	D	k	kg
16-10	40	140	190	160	150	110	150	110	8,5
	50	150	235	160	165	125	165	125	10,5
	65	170	260	160	185	145	185	145	11,4
	80	180	290	160	200	160	200	160	11,6
	100	190	310	200	220	180	220	180	22,5
	125	200	435	250	250	210	250	210	37,5
	150	210	455	250	285	240	285	240	45
10-6	200	230	580	250	340	295	340	295	82
	250	250	720	315	395	350	405	355	125
	300	270	815	315	445	400	460	410	178
6-4	350	290	925	400	505	460	420	470	228
	400	310	1030	400	565	515	580	525	293
	500	350	1265	500	670	620	715	650	465
4-2,5	600	390	1450	500	780	725	840	770	685
4-2,5	700	430	1650	630	895	840	910	840	875
2,5-1,6	800	470	1860	800	1015	950	1025	950	1205
1,6-1	900	510	1990	800	1115	1050	1125	1050	1405
1,6-1	1000	550	2030	800	1230	1060	1255	1170	1540
