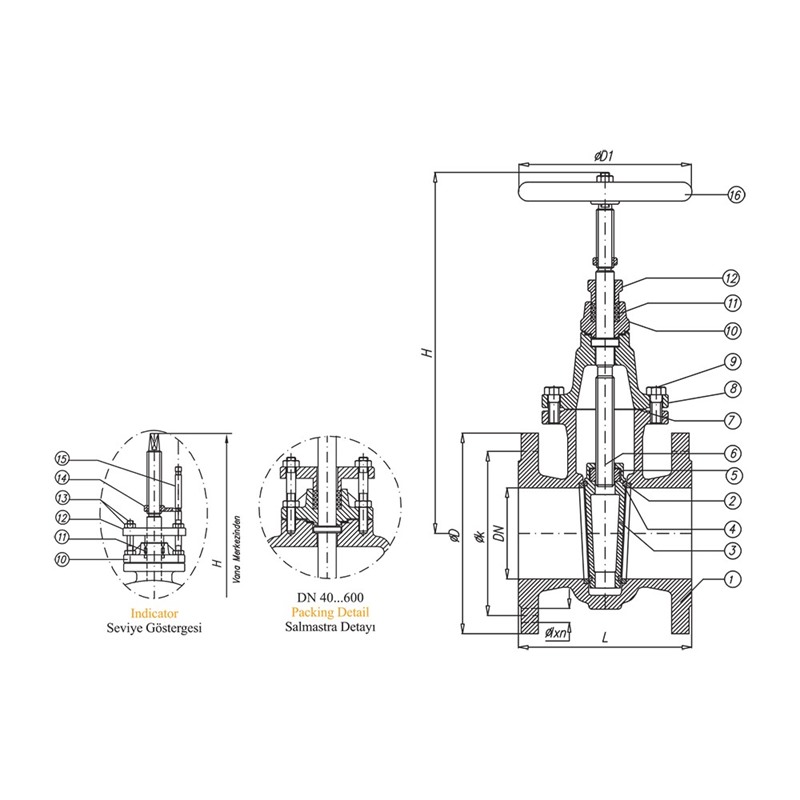

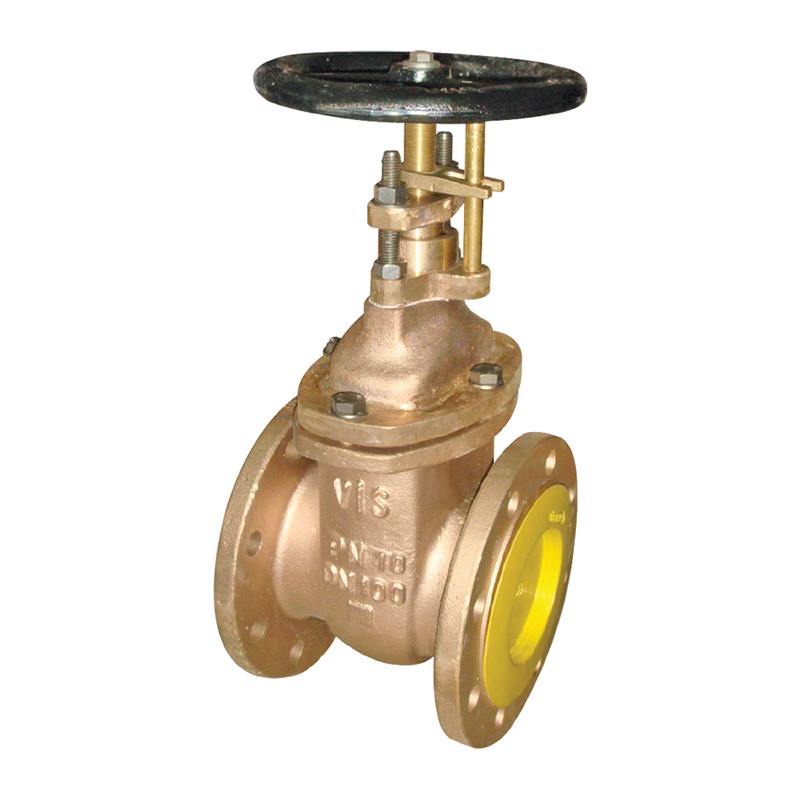

| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | GG 25 / GGG-40 / GGG40.3 / GSC25 / Bronze RG5, RG7, RGI0/ S5304, S5316 |
| 2 | Body Seat | Bronze RG5/ 5S304, S5316 |
| 3 | Wedge | GG 25 / GGG-40 / GGG40.3 / GSC25 / Bronze RG5, RG7, RGl0/ S5304, S5316 |
| 4 | Wedge Seat | Bronze RG5 / 5S304, S5316 |
| 5 | Stem Nut | Ms58 / Bronze / SS |
| 6 | Stem | Ms58/Sam 59/CuZn35 Ni/CuSn8, CuSnl 0/SS420,SS304,SS3l 6 |
| 7 | Gasket | EPDM / Klingerit / Grophite |
| 8 | Bonnet | GG 25 / GGG-40 / GGG40.3 / GSC25 / Bronze RG5, RG7, RGl0/ 5S304, S5316 |
| 9 | Bolt | 8 8 / A2 / A4 |
| 10 | Stuffing Box | GG 25 / GGG-40 / GGG40.3 / GSC25 / Bronze RG5, RG7, RGl 0/ 5S304, S5316 |
| 11 | Packing | Graphite / Teflon |
| 12 | Gland | GG 25 / GGG-40 / GGG40.3 / GSC25 / Bronze RG5, RG7, RGl 0/ S5304, S5316 |
| 13 | Stud, Nut | Steel / A2 / A4 |
| 14 | Indicator | CuSn 5ZnPb5-((Rg-5) |
| 15 | Indicator Pin | Ms 58 / SS420,SS304,SS3l 6 |
| 16 | Handwheel | GG 25 |
| Nominal Pressure | Nominal Diameter | Valve Dimensions DIN EN 1171 DIN EN 558-1/14 DIN EN 3352/2-F4 | PN10 Flange Dimensions EN 1092-2 | PN16 Flange Dimensions EN 1092-2 | Weight | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| PN | DN | L | H | D1 | D | k | Ølxn | D | k | Ølxn | kg |
| 16-10 | 40 | 140 | 195 | 160 | 150 | 110 | Ø18x4 | 150 | 110 | Ø18x4 | 11 |
| 50 | 150 | 235 | 160 | 165 | 125 | Ø18x4 | 165 | 125 | Ø18x4 | 13 | |
| 65 | 170 | 260 | 160 | 185 | 145 | Ø18x4 | 185 | 145 | Ø18x4 | 18 | |
| 80 | 180 | 280 | 160 | 200 | 16 | Ø18x8 | 200 | 160 | Ø18x8 | 21 | |
| 100 | 190 | 310 | 200 | 220 | 180 | Ø18x8 | 220 | 180 | Ø18x8 | 26 | |
| 125 | 200 | 435 | 200 | 250 | 210 | Ø18x8 | 250 | 210 | Ø18x8 | 41 | |
| 150 | 210 | 455 | 250 | 285 | 240 | Ø22x8 | 285 | 240 | Ø22x8 | 52 | |
| 10-6 | 200 | 230 | 580 | 250 | 340 | 295 | Ø22x8 | 340 | 295 | Ø22x8 | 81 |
| 250 | 250 | 720 | 315 | 395 | 350 | Ø22x12 | 400 | 355 | Ø22x12 | 120 | |
| 300 | 270 | 815 | 315 | 445 | 400 | Ø22x12 | 455 | 410 | Ø22x12 | 165 | |
| 6-4 | 350 | 290 | 925 | 400 | 505 | 460 | Ø22x16 | 520 | 470 | Ø22x16 | 222 |
| 400 | 310 | 1030 | 400 | 565 | 515 | Ø26x16 | 580 | 525 | Ø26x16 | 280 | |
| 500 | 350 | 1285 | 500 | 670 | 620 | Ø26x20 | 715 | 650 | Ø26x20 | 445 | |
| 4-2,5 | 600 | 390 | 1450 | 500 | 780 | 725 | Ø36x20 | 840 | 770 | Ø36x20 | 605 |
| Design | : | EN 1171 |
| Face to Face | : | EN 558 Serie 14 (DN3216 F4) |
| Pressure Rate | : | PN16 |
| Size Range | : | DN40-DN600 |
| Temperature | : | -10....+120°C |
| Flange Ends | : | DIN EN 1171 |
| Test | : | EN 12266 |
