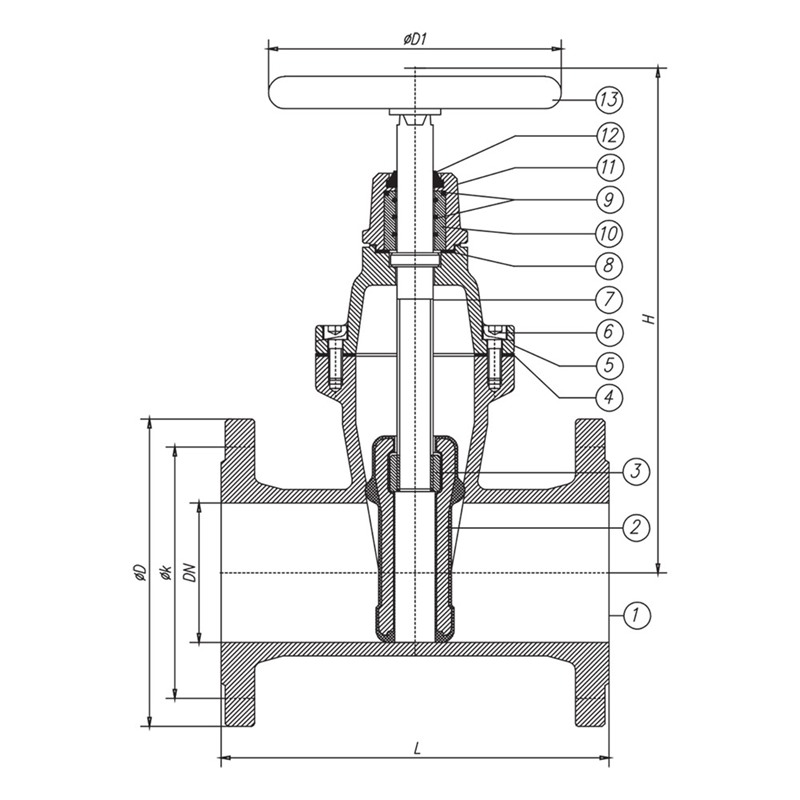

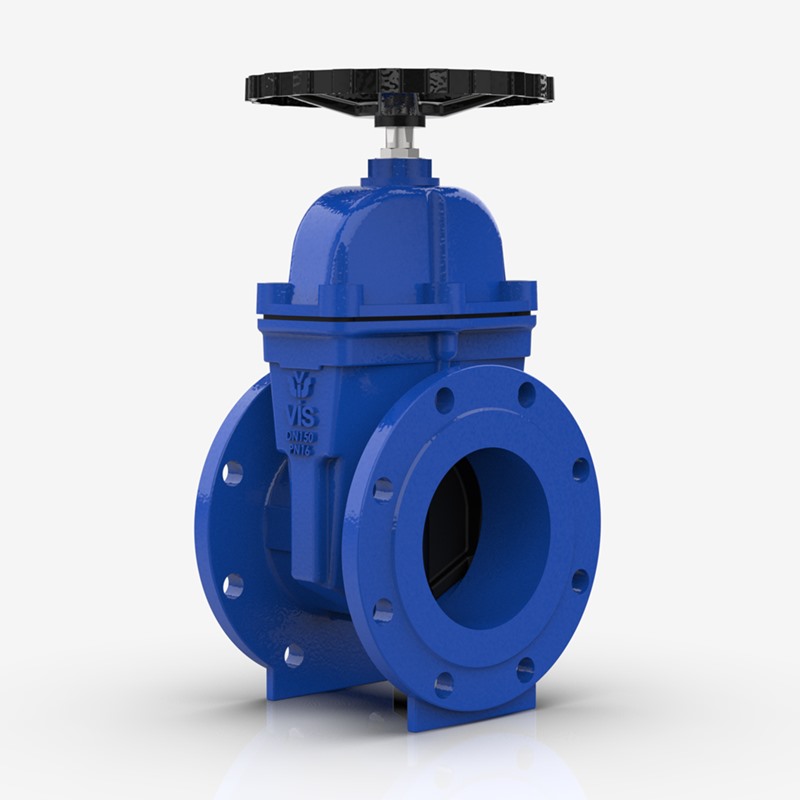

| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | GGG-40 |
| 2 | Wedge | GGG-40+EPDM / NBR |
| 3 | Stem Nut | Ms58 / Bronze |
| 4 | Gasket | EPDM/NBR |
| 5 | Bonnet | GGG-40 |
| 6 | Bolt | 8,8 |
| 7 | Stem | AISI420 (Stainless Steel) |
| 8 | Gasket | EPDM / NBR |
| 9 | O-Ring | EPDM / NBR |
| 10 | Yoke Nut | PTFE (Teflon) |
| 11 | Gland | GGG-40 |
| 12 | Cleand Gasket | EPDM / NBR |
| 13 | Handwheel | GG20 |
| Nominal Pressure | Nominal Diameter | Valve Dimensions TS EN 1171 DIN 3352/3-F5 | PN16 Flange Dimensions DIN EN 1092-1-2 | Weight | PN25 Flange Dimensions DIN EN 1092-1-2 | Weight | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| PN | DN | L | H | D1 | D | k | kg | D | k | kg |
| 10 - 16 - 25 | 40 | 240 | 230 | 200 | 150 | 110 | 9,3 | 150 | 110 | 10,2 |
| 50 | 250 | 240 | 200 | 165 | 125 | 11,5 | 165 | 125 | 12,5 | |
| 65 | 270 | 285 | 250 | 185 | 145 | 16 | 185 | 145 | 17 | |
| 80 | 280 | 310 | 250 | 200 | 160 | 19,5 | 200 | 160 | 21,5 | |
| 100 | 300 | 345 | 315 | 220 | 180 | 27 | 235 | 190 | 30 | |
| 125 | 325 | 385 | 315 | 250 | 210 | 29 | 27 | 220 | 39 | |
| 150 | 350 | 460 | 315 | 285 | 240 | 46 | 300 | 250 | 50 | |
| 200 | 400 | 656 | 400 | 340 | 295 | 63 | 360 | 310 | 81 | |
| 250 | 450 | 635 | 500 | 45 | 355 | 94 | 425 | 370 | 107 | |
| 300 | 500 | 710 | 500 | 455 | 410 | 130 | 485 | 430 | 154 | |
| Design | : | EN 1171 |
| Face to Face | : | EN 558 Serie 15 (DN3202 F5) |
| Pressure Rate | : | PN10-16-25 |
| Size Range | : | DN40-DN1000 |
| Temperature | : | -20....+120 oC |
| Flange Ends | : | DIN EN 1092-2/B |
| Test | : | EN 12266 |
