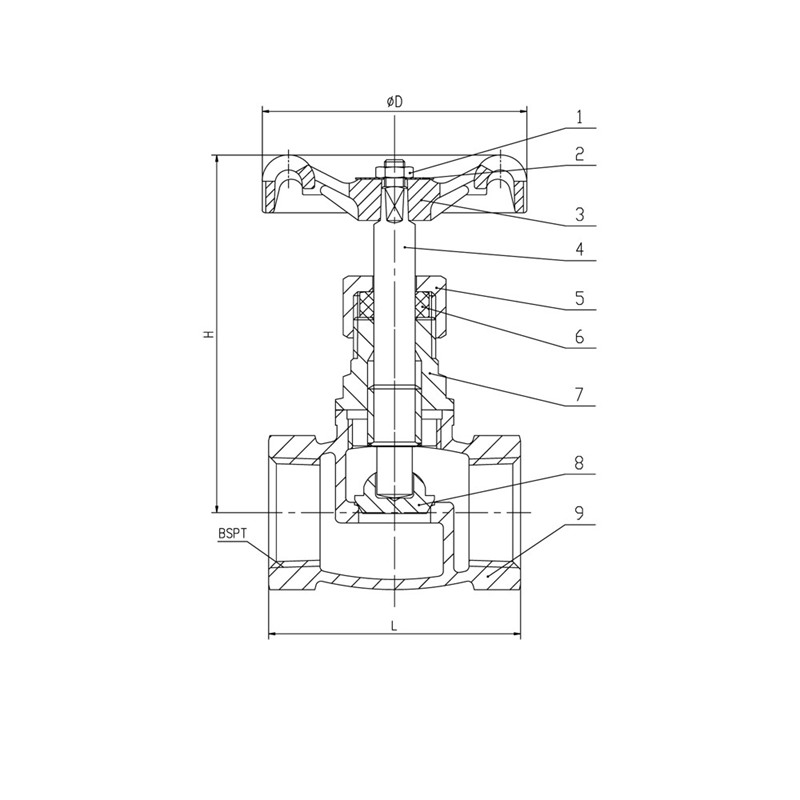

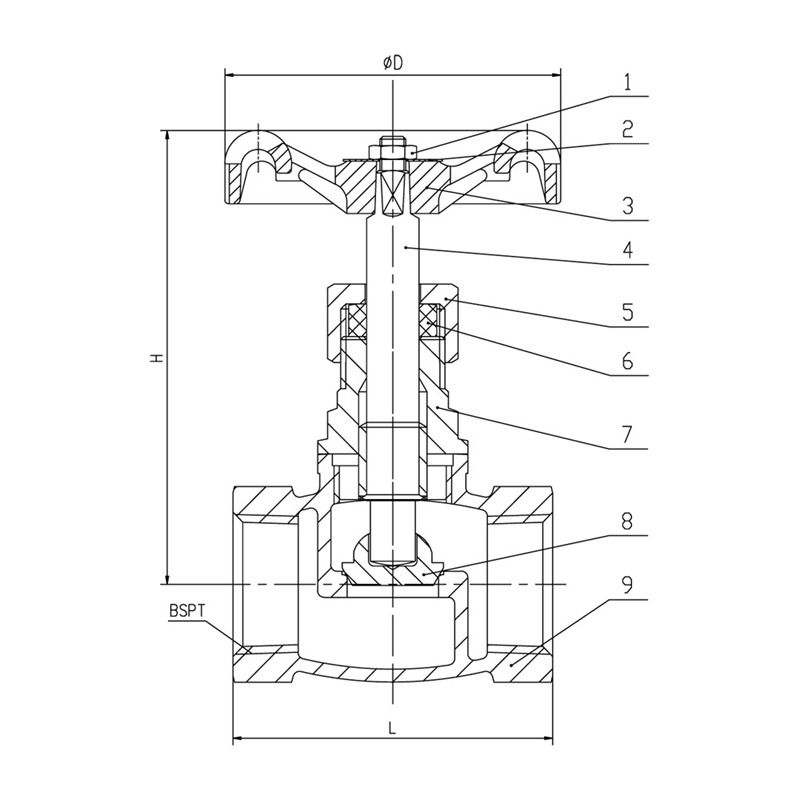

| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | Nut | Brass |
| 2 | Nameplate | Aluminum |
| 3 | Handwheel | Aluminum |
| 4 | Stem | Brass |
| 5 | Nut | Brass |
| 6 | Packing | PTFE |
| 7 | Bonnet | Bronze Rg5 |
| 8 | Disc | Bronze Rg5 |
| 9 | Body | Bronze Rg5 |
| Nominal Pressure | Nominal Diameter | Valve Dimensions | |||
|---|---|---|---|---|---|
| PN | DN | L | ØD | H | Rc |
| 16 | 15 | 49 | 52 | 71 | 1/2" |
| 20 | 56 | 60 | 73 | 3/4" | |
| 25 | 66 | 65 | 87 | 1" | |
| 32 | 74 | 70 | 95 | 1-1/4" | |
| 40 | 85 | 78 | 110 | 1-1/2" | |
| 50 | 100 | 92 | 124 | 2" | |
| Pressure Rate | : | 16 Bar |
| Size Range | : | DN15-DN50 |
| Ends | : | BSPT |
| Temperature | : | < 170 °C |
| Application | : | Water, Oil and Gas. |
