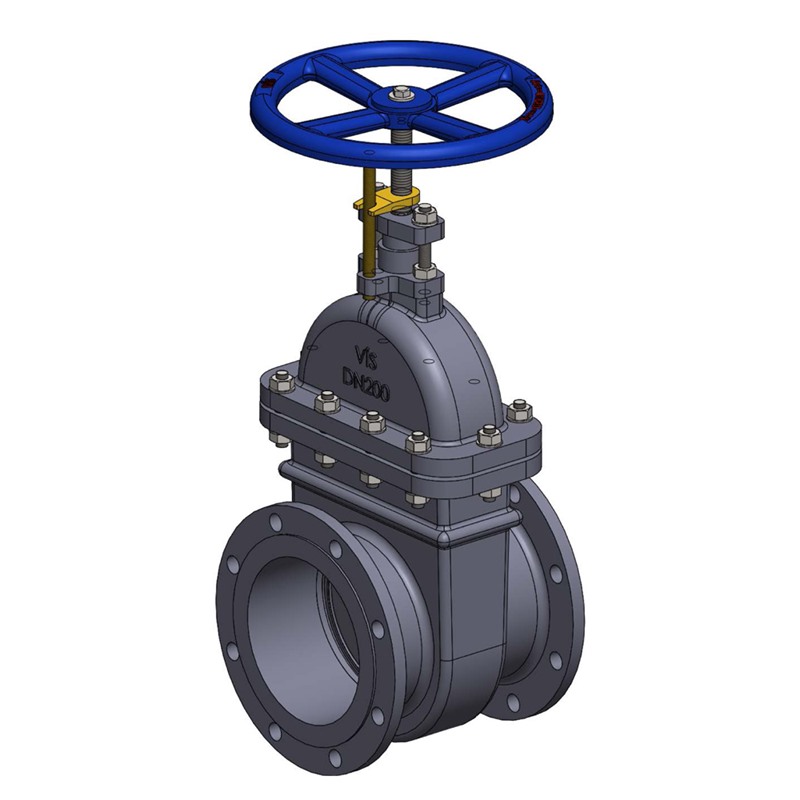

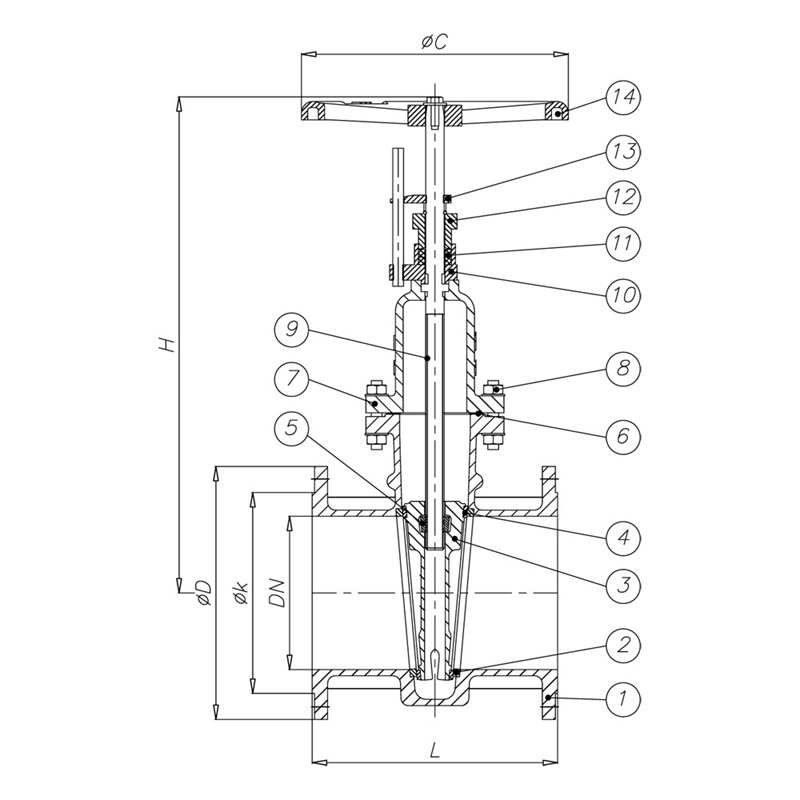

| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | Cast Steel |
| 2 | Body Seat | SS420 / Bronze |
| 3 | Wedge | Cast Steel |
| 4 | Wedge Ring | SS420 / Bronze |
| 5 | Stem Nut | GGG40 / Bronze |
| 6 | Gasket | Non - Asbestos |
| 7 | Bonnet | Cast Steel |
| 8 | Stud/Nut | Galvanized Steel |
| 9 | Stem | SS420 / Brass |
| 10 | Stuffing Box | Cast Steel |
| 11 | Packing | Graphite |
| 12 | Gland | Cast Steel |
| 13 | Indicator | Bronze |
| 14 | Handwheel | GG25 |
| Nominal Pressure | Nominal Diameter | Valve Dimensions | |||||
|---|---|---|---|---|---|---|---|
| JIS | DN | L | H | C | D | K | Øxn |
| 10K | 50 | 200 | 235 | 160 | 155 | 120 | Ø19x4 |
| 65 | 220 | 260 | 160 | 175 | 140 | Ø19x4 | |
| 80 | 230 | 290 | 200 | 185 | 150 | Ø19x8 | |
| 100 | 250 | 310 | 220 | 210 | 175 | Ø19x8 | |
| 125 | 270 | 435 | 250 | 250 | 210 | Ø23x8 | |
| 150 | 290 | 455 | 250 | 280 | 240 | Ø23x8 | |
| 200 | 310 | 580 | 300 | 330 | 290 | Ø23x12 | |
| 250 | 340 | 720 | 400 | 400 | 355 | Ø25x12 | |
| 300 | 380 | 815 | 400 | 445 | 400 | Ø25x16 | |
| 350 | 420 | 925 | 520 | 490 | 445 | Ø25x16 | |
| 400 | 450 | 1030 | 520 | 560 | 510 | Ø27x16 | |
| 450 | 480 | 1075 | 520 | 620 | 565 | Ø27x20 | |
| 500 | 500 | 1265 | 600 | 675 | 620 | Ø27x20 | |
| Design | : | JIS F7360 / JIS F7366 |
| Pressure Rate | : | 10K |
| Size Range | : | DN50- DN500 |
| Flange Ends | : | JIS B2220 - 10K |
| Inspection | : | JIS F7400 |
| Application | : | Water, Air, Gas, Oil |
