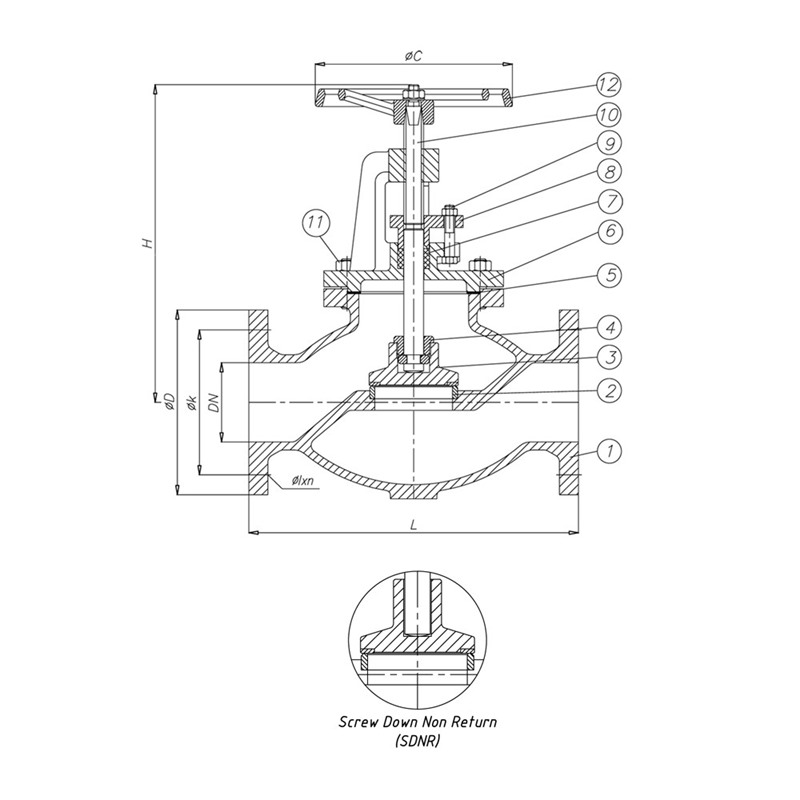

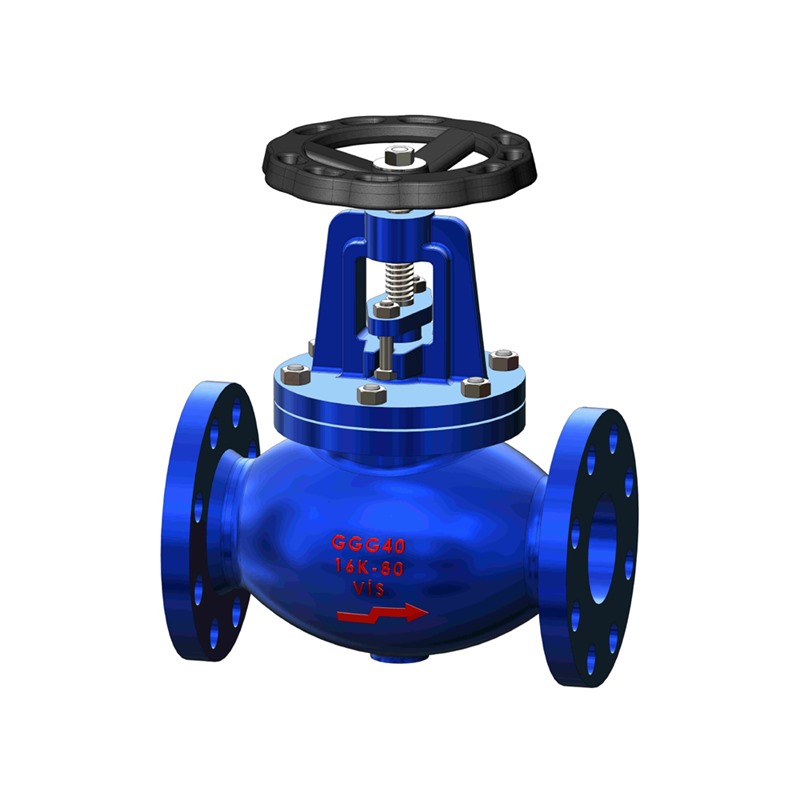

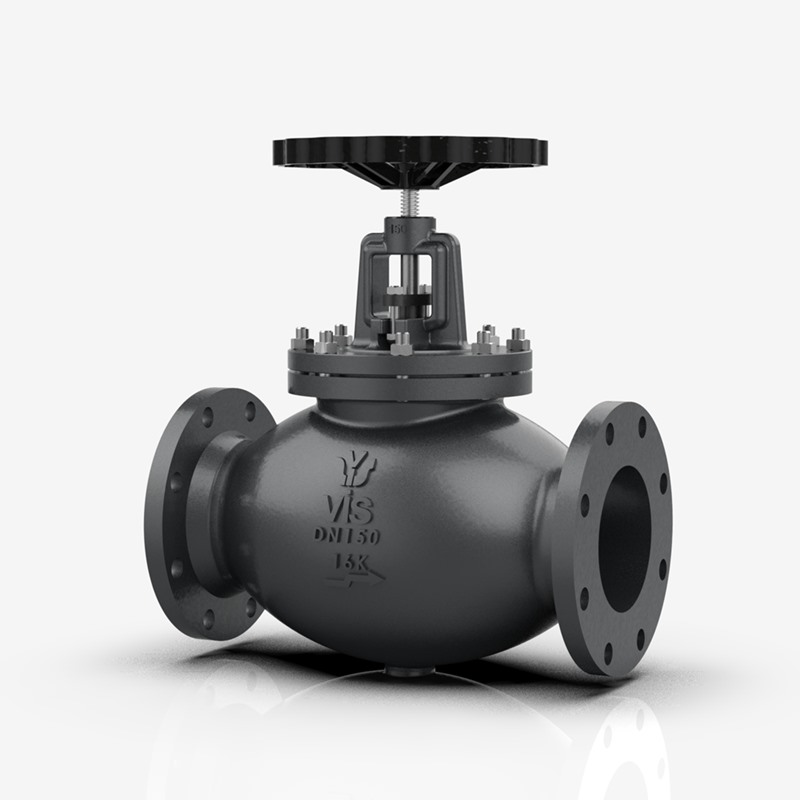

| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | GG 25 / GGG 40 / GS-C25 |
| 2 | Seat | Bronze Rg5 / 13Cr / SS 304 |
| 3 | Disc | GG 25 / GGG 40 / GS-C25 |
| 4 | Disc Nut | Brass / 13 Cr |
| 5 | Gasket | Klingerite |
| 6 | Bonnet | GG 25 / GGG 40 / GS-C25 |
| 7 | Packing | Graphite |
| 8 | Gland | GG 25 / GGG 40 / GS-C25 |
| 9 | Bolt/Nut | Galvanized Steel |
| 10 | Stem | CuZn35Ni / 13Cr / SS 304 |
| 11 | Stud/Nut | Galvanized Steel |
| 12 | Handwheel | GG 25 |
| Nominal Pressure | Nominal Diameter | Valve Dimensions | Weight | IMPA Code | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| JIS | DN | L | H | C | D | K | Øxn | kg | IMPA STOP | IMPA SDNR |
| 16K | 50 | 220 | 260 | 160 | 155 | 120 | Ø19x8 | 12,1 | 750261 | 751151 |
| 65 | 270 | 300 | 180 | 175 | 140 | Ø19x8 | 17,9 | 750262 | 751152 | |
| 80 | 300 | 315 | 200 | 200 | 160 | Ø23x8 | 25,7 | 750263 | 751153 | |
| 100 | 350 | 340 | 220 | 225 | 185 | Ø23x8 | 33,9 | 750264 | 751154 | |
| 125 | 430 | 400 | 250 | 270 | 225 | Ø25x8 | 54 | 750265 | 751155 | |
| 150 | 500 | 460 | 300 | 305 | 260 | Ø25x12 | - | 750266 | 751156 | |
| 200 | 570 | 550 | 400 | 350 | 305 | Ø25x12 | - | 750267 | - | |
| Design | : | JIS F7309 STOP - JIS F7377 SDNR |
| Pressure Rate | : | 16K |
| Size Range | : | DN50- DN200 |
| Flange Ends | : | JIS B2239 - 16K |
| Inspection | : | JIS F7400 |
| Application | : | Aboard ships for hot and cold water, oil and steam |
