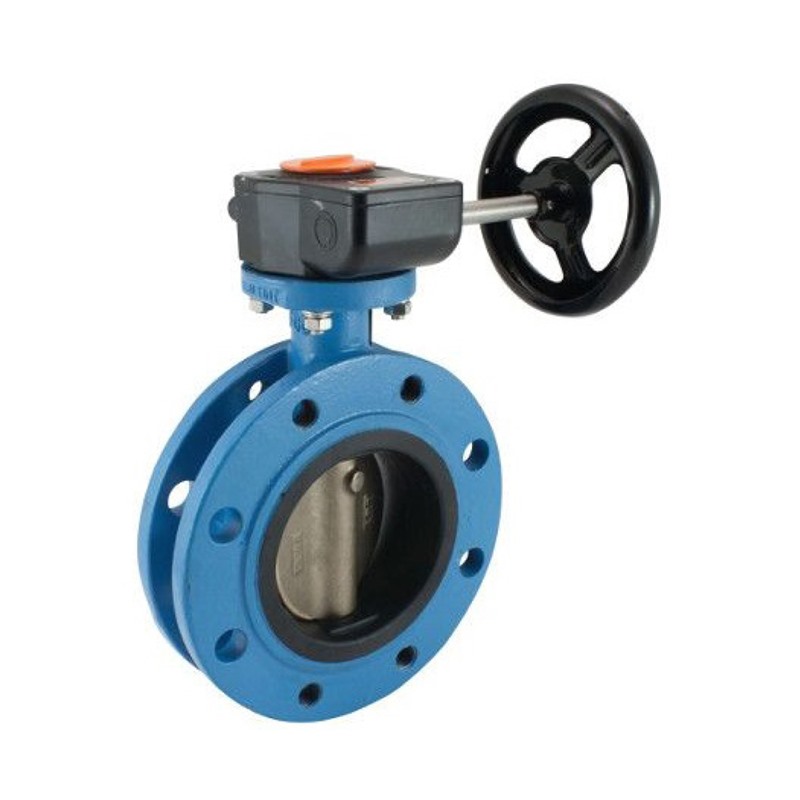

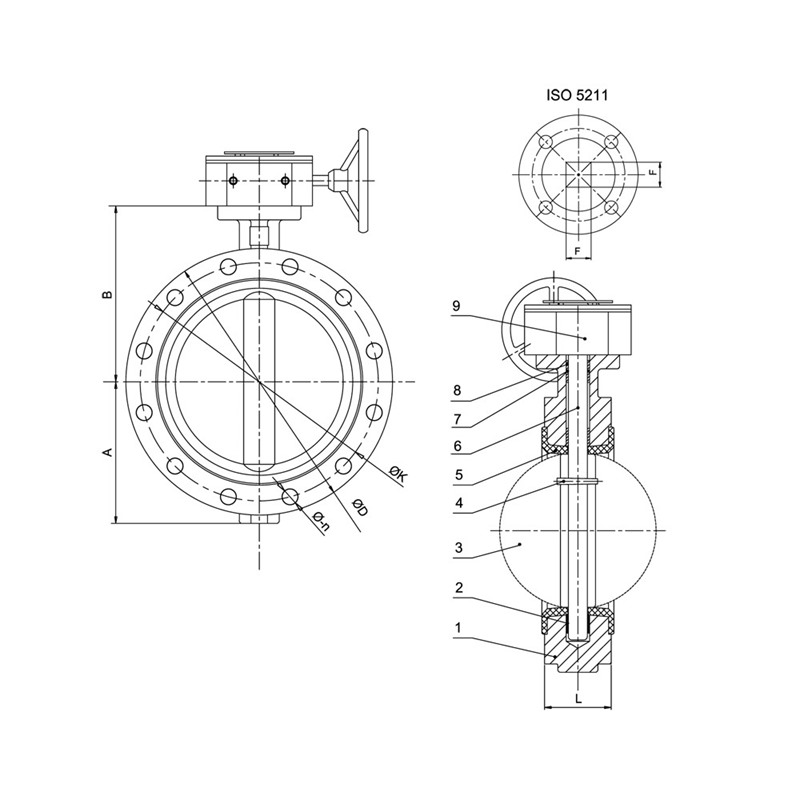

| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | GGG 40 |
| 2 | Bushing | Brass |
| 3 | Disc | Al-Bronze C95400 |
| 4 | Pin | 2507 |
| 5 | Seat | NBR |
| 6 | Stem | SS 410 |
| 7 | O-Ring | NBR |
| 8 | Bushing | Brass |
| 9 | Gearbox | Assembly |
| Nominal Pressure | Nominal Diameter | Valve Dimensions | JIS 5K Flange Dimensions | JIS 10K Flange Dimensions | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| JIS | DN | L | A | B | F | ISO5211 | D | K | Øxn | D | K | Øxn |
| 393 | 100 | 60 | 124 | 150 | 11 | F07 | 200 | 165 | Ø19x8 | 210 | 175 | Ø19x8 |
| 125 | 100 | 144 | 171 | 14 | F07 | 235 | 200 | Ø19x8 | 250 | 210 | Ø23x8 | |
| 150 | 100 | 154 | 184 | 14 | F07 | 265 | 230 | Ø19x8 | 280 | 240 | Ø23x8 | |
| 200 | 100 | 187 | 214 | 17 | F10 | 320 | 280 | Ø23x8 | 330 | 290 | Ø23x12 | |
| 250 | 110 | 217 | 265 | 22 | F10 | 385 | 345 | Ø23x12 | 400 | 355 | Ø25x12 | |
| 300 | 120 | 243 | 288 | 22 | F10 | 430 | 390 | Ø23x12 | 445 | 400 | Ø25x16 | |
| 350 | 130 | 268 | 322 | 22 | F10 | 480 | 435 | Ø25x12 | 490 | 445 | Ø25x16 | |
| 400 | 150 | 301 | 370 | 27 | F14 | 540 | 495 | Ø25x16 | 560 | 510 | Ø27x16 | |
| 450 | 160 | 330 | 393 | 36 | F14 | 605 | 555 | Ø25x16 | 620 | 565 | Ø27x20 | |
| 500 | 170 | 358 | 432 | 36 | F14 | 655 | 605 | Ø25x20 | 675 | 620 | Ø27x20 | |
| 600 | 170 | 419 | 501 | 46 | F16 | 770 | 715 | Ø27x20 | 730 | 730 | Ø33x24 | |
| Design | : | JIS F7480 Series 122 |
| Pressure Rate | : | 5K / 10K |
| Temperature | : | -10~80 °C |
| Size Range | : | DN50-DN150 |
| Flange Ends | : | JIS B2210 - 5K / 10K |
| Inspection | : | JIS F7400 |
| Application | : | Sea water, cold and warm water |
