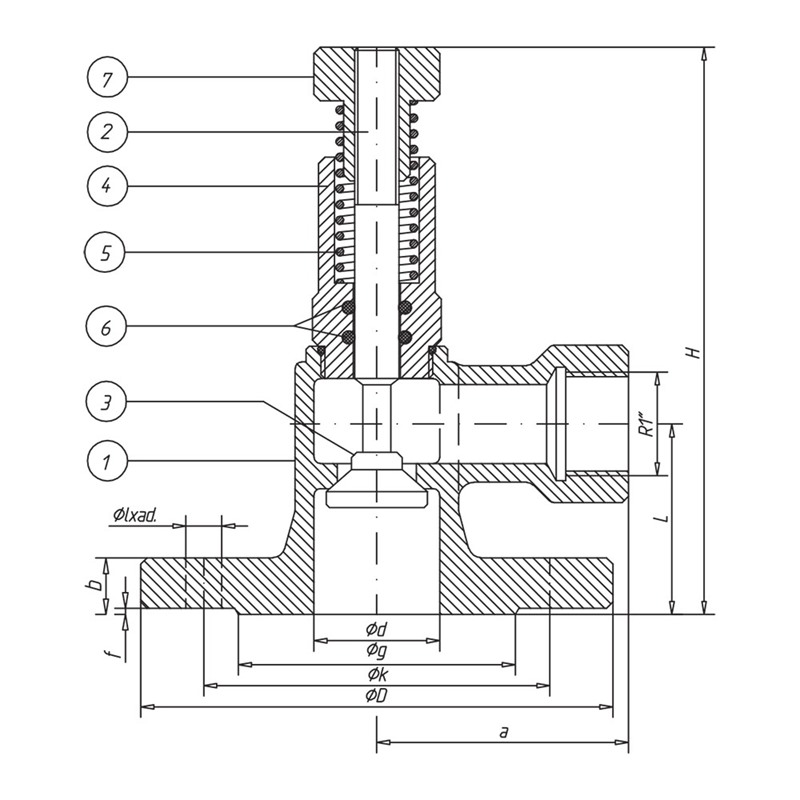

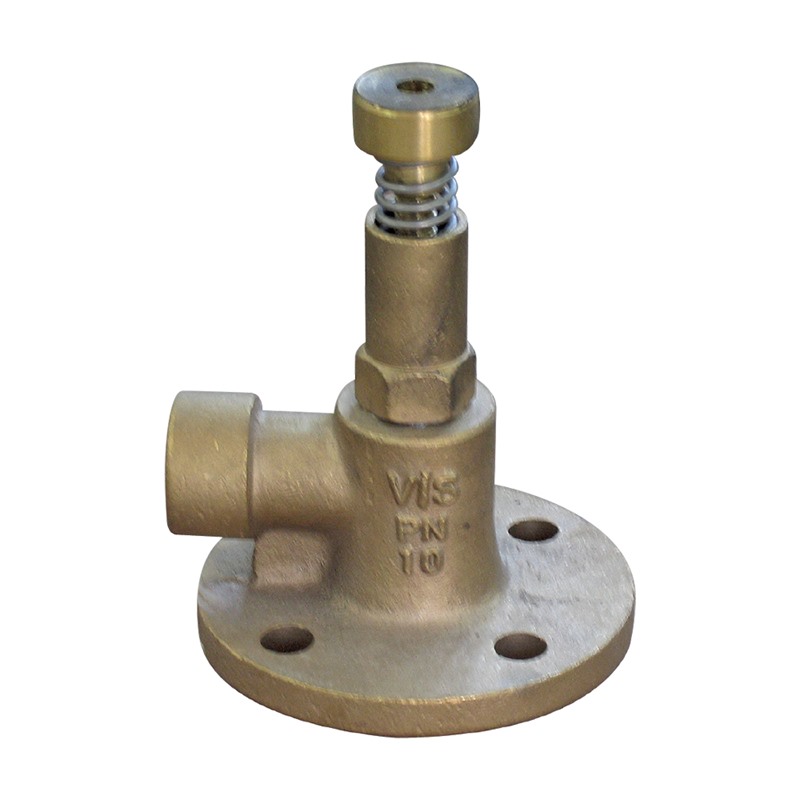

| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | Rg-S /GGG-40 / G-SC 25 |
| 2 | Stem | AISI 304 / Rg-5 |
| 3 | Disc | AISI 304 / Rg-5 |
| 4 | Spring House | Rg-S /GGG-40 / G-SC 25 |
| 5 | Spring | AISI 304 |
| 6 | O-Ring | EPOM |
| 7 | Spring Nut | Rg-S /GGG-40 / G-SC 25 |
| Nominal Pressure | PN | 10 | |||
|---|---|---|---|---|---|
| Nominal Diameter | DN | 20 | 25 | 32 | 40 |
| Valve Dimensions | L | 61 | |||
| H | 180 | ||||
| a | 80 | ||||
| Ends DIN EN 1092-1-2 | Ød | 40 | |||
| ØD | 105 | 115 | 140 | 150 | |
| Øk | 75 | 85 | 100 | 110 | |
| Øg | 58 | 68 | 78 | 88 | |
| Ølxad | 14X4 | 18X4 | |||
| bxf | 16 | 18 | |||
| Weight | kg | 2,5 | 3 | 4 | 4,5 |
| DN | Stock Code |
|---|---|
| 20 | |
| 25 | |
| 32 | |
| 40 |
| Pressure Rate | : | PN 16 |
| Size Range | : | DN20- DN40 |
| Ends | : | DIN EN 1092-1-2 DIN EN 10226-1 |
