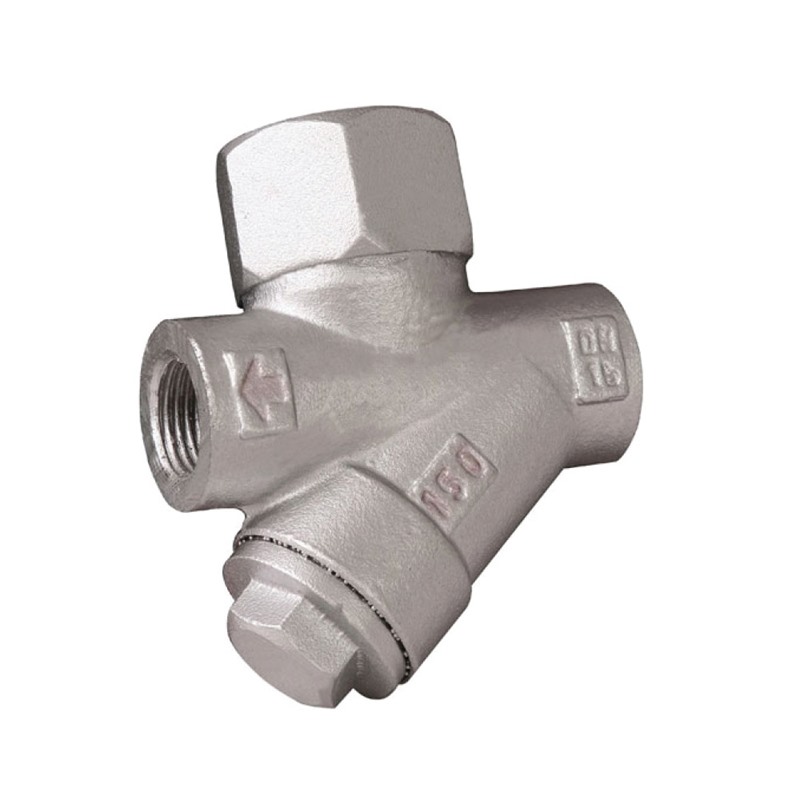

| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | Forged Steel ASTM AI 05 |
| 2 | Cover | Stainless Steel AISI 304AI 05 |
| 3 | Cover Gasket | Stainless Steel |
| 4 | Disc | Stainless Steel |
| 5 | Seat | Stainless Steel |

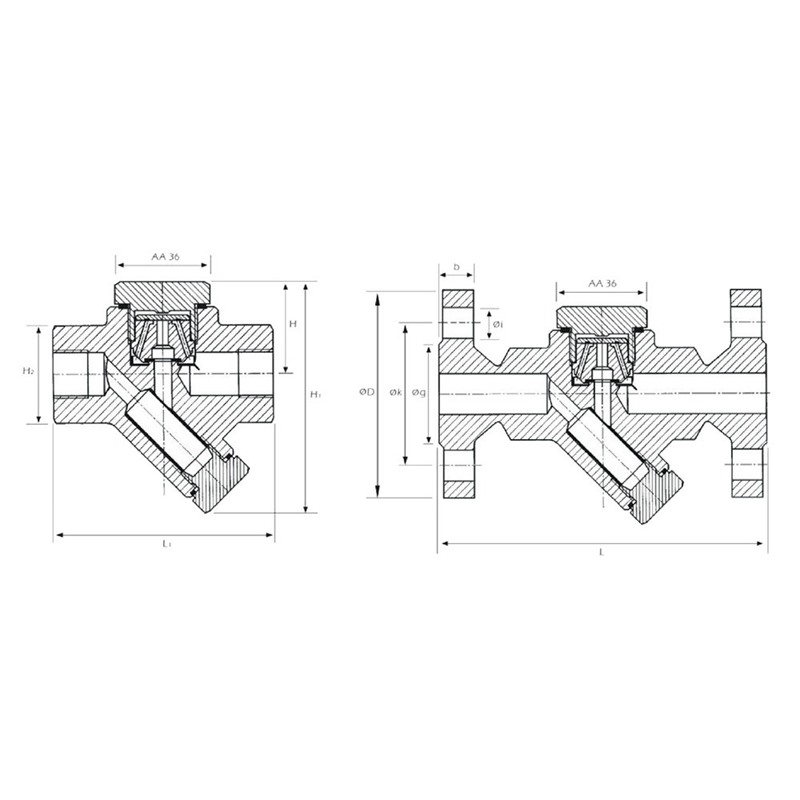

| Nominal Diameter | Valve Dimensions DIN 3357 | Flange Dimensions DIN EN 1092 | Weight | |||||
|---|---|---|---|---|---|---|---|---|
| DN | L | H | ØD | Øk | Øg | b | ØLxn | kg |
| 32 | 130 | 110 | 140 | 100 | 78 | 18 | Ø18x4 | 9 |
| 40 | 140 | 160 | 150 | 110 | 88 | 18 | Ø18x4 | 13 |
| 50 | 150 | 160 | 165 | 125 | 102 | 18 | Ø18x4 | 19 |
| 65 | 170 | 170 | 185 | 145 | 122 | 18 | Ø18x4 | 29 |
| 80 | 180 | 210 | 200 | 160 | 138 | 20 | Ø18x8 | 40 |
| 100 | 190 | 240 | 220 | 180 | 158 | 20 | Ø18x8 | 55 |
| 125 | 200 | 280 | 250 | 210 | 188 | 22 | Ø18x8 | 80 |
| 150 | 210 | 330 | 285 | 240 | 212 | 22 | Ø22x8 | 120 |
| 200 | 230 | 400 | 340 | 295 | 268 | 24 | Ø23x12 | 175 |
| Pressure Rate | : | PN16 |
| Dimensions | : | ISO 228/1 |
| Threaded | ||
| Size Range | : | DN 15-20-25 |
