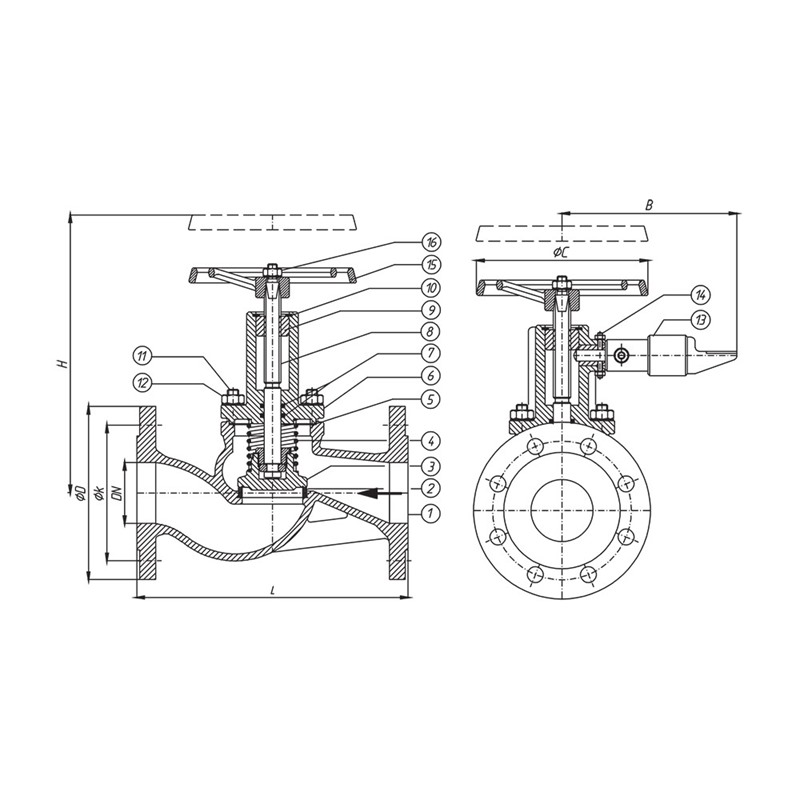

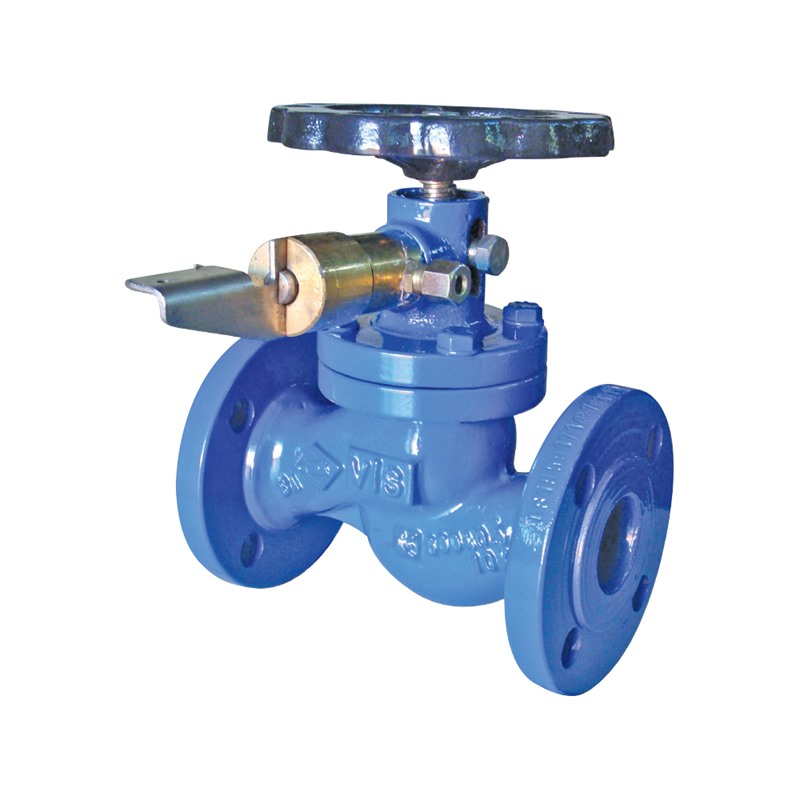

| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | GGG40/GGG40.3/GSC25/Bronze RG5, RG7, RG10, CuSn10/SS304,SS316, Duplex 1.4470 |
| 2 | Seat Ring | AISI 304 / AISI 316 / Bronze RG5 / Duplex |
| 3 | Disc | AISI 420/AISI 304/AISI 316/Bronze RG5/Duplex |
| 4 | Spring | AISI 302 |
| 5 | Gasket | Klingerite / Graphite |
| 6 | Bonnet | GGG40/GGG40.3/GSC25/Bronze RG5, RG7, RG10, CuSn10/SS304,SS316, Duplex 1.4470 |
| 7 | O-Ring | Viton |
| 8 | Spindle | AISI 420/AISI 304/AISI 316/Bronze RG5/Duplex |
| 9 | Stem Nut | AISI 420/AISI 304/AISI 316/Bronze RG5/Duplex |
| 10 | Segment | Steel |
| 11 | Stud | Steel / A2 / A4 |
| 12 | Nut | Steel / A2 / A4 |
| 13 | Piston | Brass |
| 14 | Stud Nut | Steel / A2 / A4 |
| 15 | Handwheel | GG25 |
| 16 | Nut | Steel / A2 / A4 |
| Nominal Pressure | PN | 16 | 10 | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Diameter | DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | ||
| Valve Dimensions TSEK DIN 3202/2-F1 | L | 130 | 150 | 160 | 180 | 200 | 230 | 290 | 310 | 350 | 400 | 480 | 600 | ||
| B | 145 | 150 | 155 | ||||||||||||
| ØC | 120 | 140 | 160 | 180 | 200 | 225 | 250 | 300 | 400 | ||||||
| H | OPEN | 185 | 185 | 195 | 205 | 230 | 240 | 275 | 290 | 350 | 410 | 430 | 580 | ||
| Flange Dimensions TS810/DIN2501 PN 16 | D | 95 | 105 | 115 | 140 | 150 | 165 | 185 | 200 | 220 | 250 | 285 | 340 | ||
| k | 65 | 75 | 85 | 100 | 110 | 125 | 145 | 160 | 180 | 210 | 240 | 295 | |||
| Weight | kg | 4,4 | 5,5 | 6,5 | 7,5 | 10,5 | 13,5 | 17,5 | 24 | 33 | 55 | 95 | 130 | ||
| Pressure Rate | : | PN 16 |
| Size Range | : | DN15-DN200 |
| Dimensions | : | DIN 3202/2-F1(Straight) |
| Flange Ends | : | DN 2533 |
| Options | : | ANSI, JIS Flanges |
