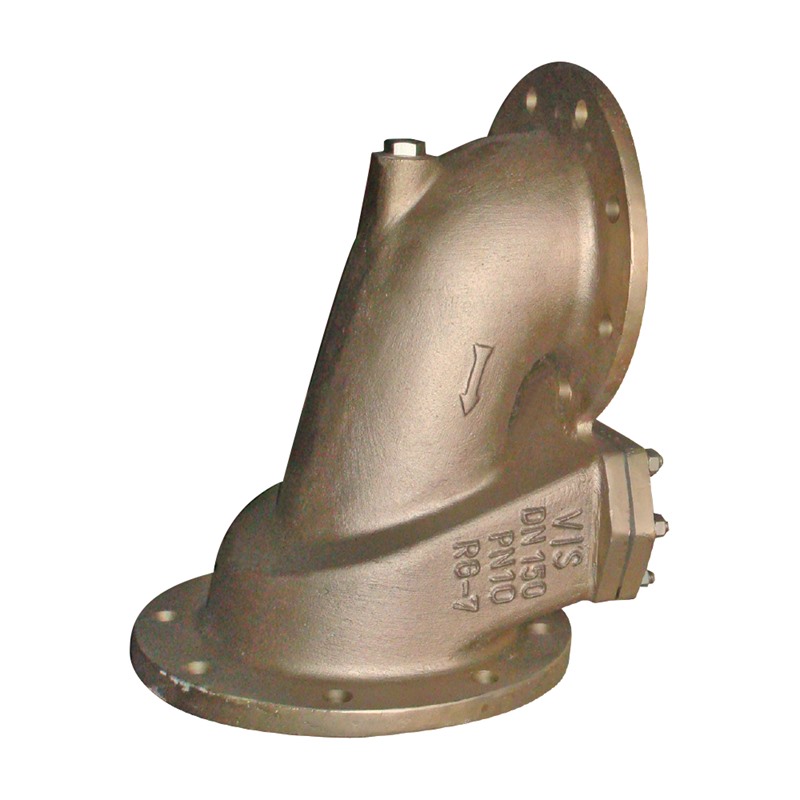

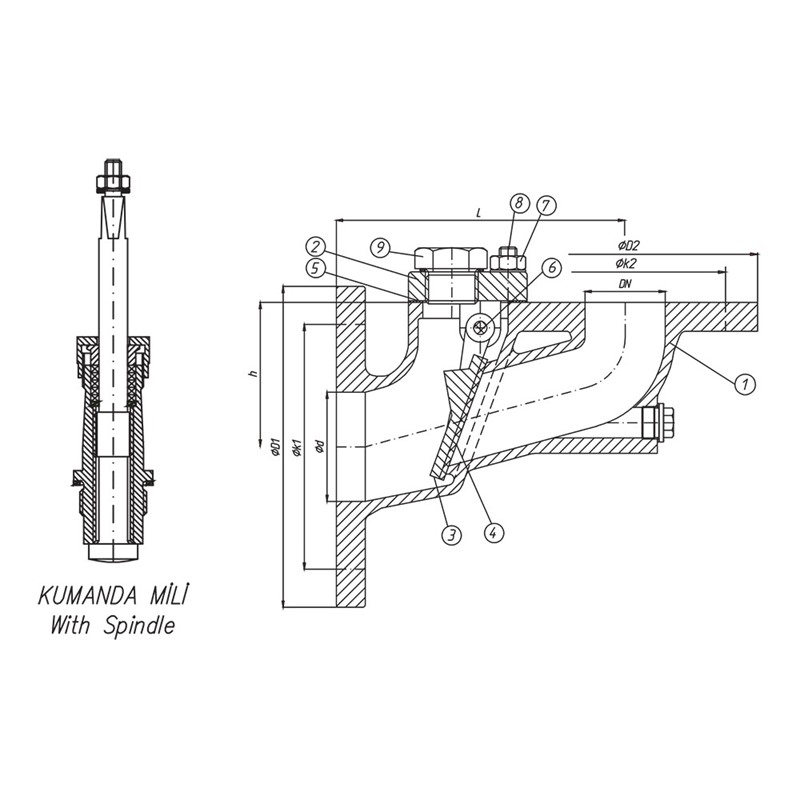

| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | GGG40/GGG40.3/GSC25/Bronze RGS, RG7, RGl O, CuSn10/SS304,SS3l 6, Duplex 1.4470 |
| 2 | Bonnet | GGG40/GGG40.3/GSC25/Bronze RGS, RG7, RGl O, CuSn10/SS304,SS31 6, Duplex 14470 |
| 3 | Flap | Bronze RGS, RG7, RG10, CuSnl0/S5304, S5316, Duplex 1.4470 |
| 4 | Gasket | NBR, Special Rubber |
| 5 | Gasket | NBR, Special Rubber |
| 6 | Pin | Brass / CuSn10 |
| 7 | Nut | Steel / A2 / A4 |
| 8 | Stud | Steel / A2 / A4 |
| 9 | Plug | Brass |
Nominal Diameter | ANGLE FORM | Weight | Stock Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
DN | Ød | ØD1 | Øk1 | ØD2 | Øk2 | L | h | kg | |
50 | 80 | 200 | 160 | 165 | 125 | 180 | 90 | 12 | |
65 | 100 | 220 | 180 | 185 | 145 | 200 | 100 | 14 | |
80 | 125 | 250 | 210 | 200 | 160 | 215 | 108 | 18 | |
100 | 150 | 285 | 240 | 220 | 180 | 250 | 130 | 25 | |
125 | 175 | 315 | 270 | 250 | 210 | 290 | 152 | 35 | |
150 | 200 | 340 | 295 | 285 | 240 | 330 | 176 | 43 | |
200 | 250 | 395 | 350 | 285 | 295 | 425 | 200 | 72 | |
250 | 305 | 445 | 400 | 285 | 350 | 630 | 370 | 150 | |
300 | 400 | 565 | 515 | 285 | 400 | 650 | 370 | 250 | |
350 | 400 | 565 | 515 | 285 | 460 | 800 | 460 | 325 | |
| Pressure Rate | : | PN 10 |
| Size Range | : | DN50-DN350 |
| Dimensions | : | DIN- HNA PN4 |
| Flange Ends | : | DN 2532 |
| Options | : | ANSI JIS Flanges, Position |
| ANFI, JIS Flange Dimensions, Seviye Indicatorsi | ||
