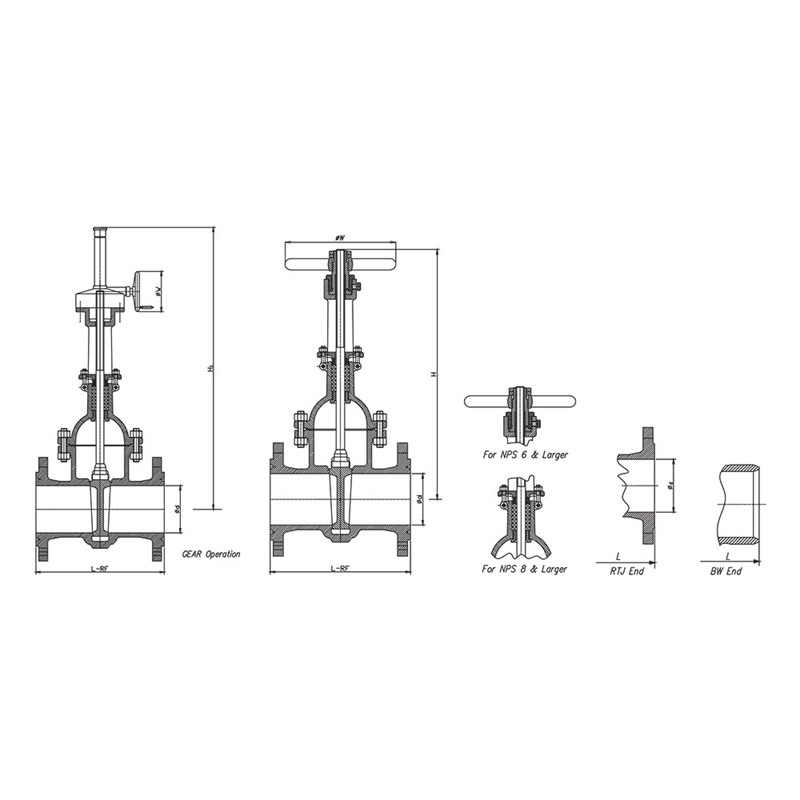

| Nominal Pressure | Nominal Diameter | Valve Dimensions (mm) | Weight (kg) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN | NPS | L | d | H | H1 | W | W1 | |||||
| RF | RTJ | BW | H.W | G.O | ||||||||
| Class 600 | 50 | 2 | 292 | 295 | 292 | 50 | 380 | - | 200 | - | 37 | - |
| 65 | 2 1/2 | 330 | 333 | 330 | 63 | 420 | - | 250 | - | 50 | - | |
| 80 | 3 | 356 | 359 | 356 | 76 | 500 | 585 | 280 | 310 | 82 | 87 | |
| 100 | 4 | 432 | 435 | 432 | 100 | 575 | 695 | 300 | 310 | 134 | 142 | |
| 125 | 5 | 508 | 511 | 508 | 127 | 700 | 790 | 350 | 310 | 175 | 227 | |
| 150 | 6 | 559 | 562 | 559 | 150 | 750 | 900 | 450 | 460 | 245 | 286 | |
| 200 | 8 | 660 | 664 | 660 | 199 | 850 | 1110 | 500 | 460 | 423 | 472 | |
| 250 | 10 | 787 | 791 | 787 | 247 | 1005 | 1300 | 650 | 460 | 682 | 657 | |
| 300 | 12 | 838 | 841 | 838 | 298 | 1130 | 1650 | 700 | 460 | 932 | 893 | |
| 350 | 14 | 889 | 892 | 889 | 326 | 1270 | 1750 | 900 | 530 | 1177 | 1318 | |
| 400 | 16 | 991 | 994 | 991 | 374 | 1365 | 1900 | 900 | 530 | 1513 | 1720 | |
| 450 | 18 | 1092 | 1095 | 1092 | 419 | - | 2020 | - | 600 | - | 1980 | |
| 500 | 20 | 1194 | 1200 | 1194 | 463 | - | 2172 | - | 600 | - | 2460 | |
| 600 | 24 | 1397 | 1407 | 1397 | 558 | - | 2650 | - | 600 | - | 3650 | |
| Design and Manufacture | : | API 600,API6D |
| Inspection and Tests | : | API598,API6D,API600 |
| End Flange Dimension | : | ASME B16.5 |
| End Flange Dimension | : | ASME B16.47 A, MSS SP-4 |
| End Flange Dimension | : | ASME B16.47 B, API605 |
| BW end Dimension | : | ASME B16.25 |
| Face to Face | : | ASME B16.10 |
| Pressure-temperature ratings | : | ASME B16.34 |
