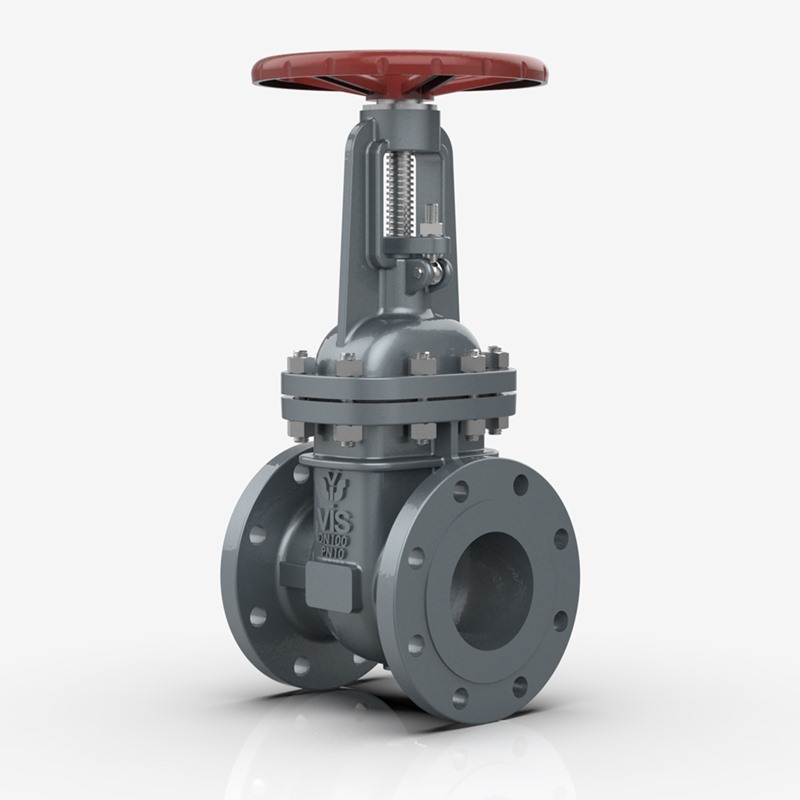

| Pressure Range | Cast Iron GG25 | Ductlle Iron GGG40 | Cast Steel GSC25 |
|---|---|---|---|
| DN40-DN200 | 10 | 16 | 16 |
| DN250-DN300 | 6 | 10 | |
| DN350-DN500 | 4 | 6 | |
| DN600-DN700 | 2,5 | 4 | |
| DN800 | 1,6 | 2,5 | |
| DN900-DN1000 | 1 | 1,6 |

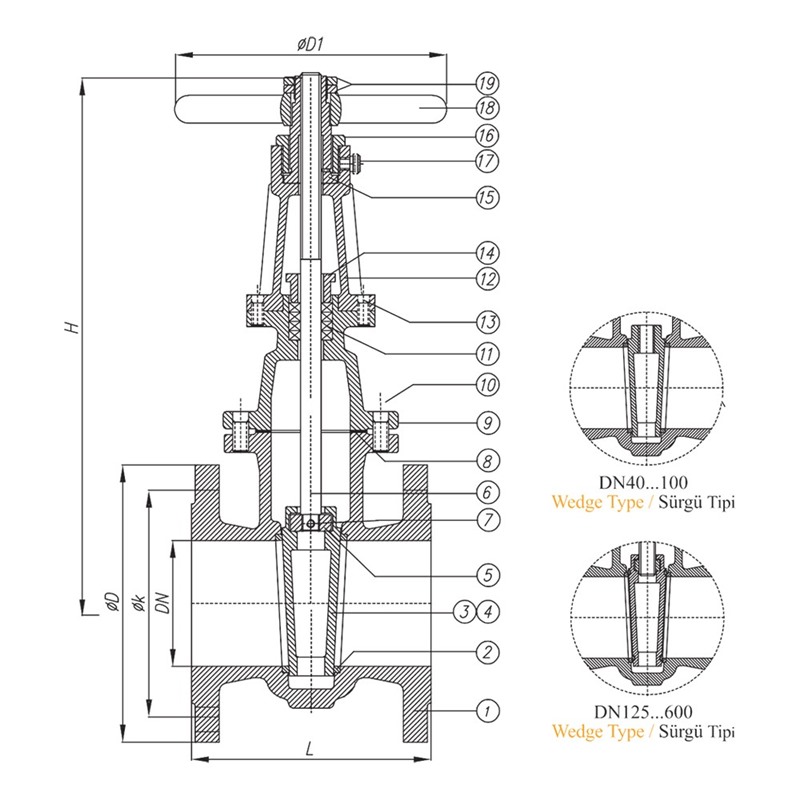

| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | GG 25/GGG-40/GGG40.3/GSC25/Bronze RG5, RG7, RG10/SS304, SS316 |
| 2 | Body Seat | Ms 58 / Bronze / S.S |
| 3 | Wedge | GG 25/GGG-40/GGG40.3/GSC25/Bronze RG5, RG7, RG10/SS304, SS316 |
| 4 | Wedge Seat | Ms 58 / Bronze / S.S |
| 5 | Stem Nut Only 125...600 | Bronze / GGG 40 |
| 6 | Stem | SS420 / Ms58 / Som59 / CuZn35Ni / CuSn8, CuSn10 / SS304, SS316 |
| 7 | Pin | Ms 58 / Bronze / S.S |
| 8 | Gasket | Klingerite / EPDM / GRAPHITE |
| 9 | Bonnet | GG 25/GGG-40/GGG40.3/GSC25/ Bronze RG5, RG7, RG10/SS304, SS316 |
| 10 | Bolt | 8.8 / A2 / A4 |
| 11 | Packing | GRAPHITE / TEFLON |
| 12 | Yoke | GG 25/GGG-40/GGG40.3/GSC25/Bronze RG5, RG7, RG10/SS304, SS316 |
| 13 | Bolt | 8.8 / A2 / A4 |
| 14 | Packing Nut | GG 25/GGG-40/GGG40.3/GSC25/Bronze RG5, RG7, RG10/SS304, SS316 |
| 15 | Yoke Nut | Ms 58 / Bronze / GGG 40 |
| 16 | Centering Nut | Ms 58 / Bronze / S.S |
| 17 | Oil Nipple | St |
| 18 | Handwheel | GG 20 |
| 19 | Handwheel Nut | Ms 58 / Bronze / S.S |
| Nominal Pressure | Nominal Diameter | Valve Dimensions TS EN 1171 DIN 3352/2-F4 | Flange Dimensions EN 1092-2 PN10 | Weight | ||||
|---|---|---|---|---|---|---|---|---|
| PN | DN | L | H min | H max | D1 | D | k | kg |
| 10 | 40 | 140 | 350 | 410 | 160 | 150 | 110 | 11 |
| 50 | 150 | 360 | 470 | 160 | 165 | 125 | 15 | |
| 65 | 170 | 470 | 560 | 160 | 185 | 145 | 19,5 | |
| 80 | 180 | 470 | 560 | 160 | 200 | 160 | 24 | |
| 100 | 190 | 580 | 690 | 200 | 220 | 180 | 30 | |
| 125 | 200 | 650 | 790 | 250 | 250 | 210 | 44 | |
| 150 | 210 | 725 | 895 | 250 | 285 | 240 | 59 | |
| 6 | 200 | 230 | 815 | 1030 | 250 | 340 | 295 | 106 |
| 250 | 250 | 950 | 1220 | 315 | 395 | 350 | 158 | |
| 300 | 270 | 1080 | 1405 | 315 | 445 | 400 | 232 | |
| 4 | 350 | 290 | 1225 | 1595 | 400 | 505 | 460 | 200 |
| 400 | 210 | 1390 | 1810 | 400 | 565 | 515 | 310 | |
| 500 | 250 | 1670 | 2195 | 500 | 670 | 620 | 450 | |
| 2,5 | 600 | 290 | 1920 | 2550 | 500 | 780 | 720 | 600 |
| Design | : | EN 1171, DIN 3352 |
| Face to Face | : | EN 558 Serie 14, DIN3202 F4 |
| Pressure Rate | : | Max. PN10 |
| Size Range | : | DN40-DN600 |
| Temperature | : | -10....+400 ºC |
| Flange Ends | : | DIN EN 1092-2/B |
| Test | : | EN 12266 |
