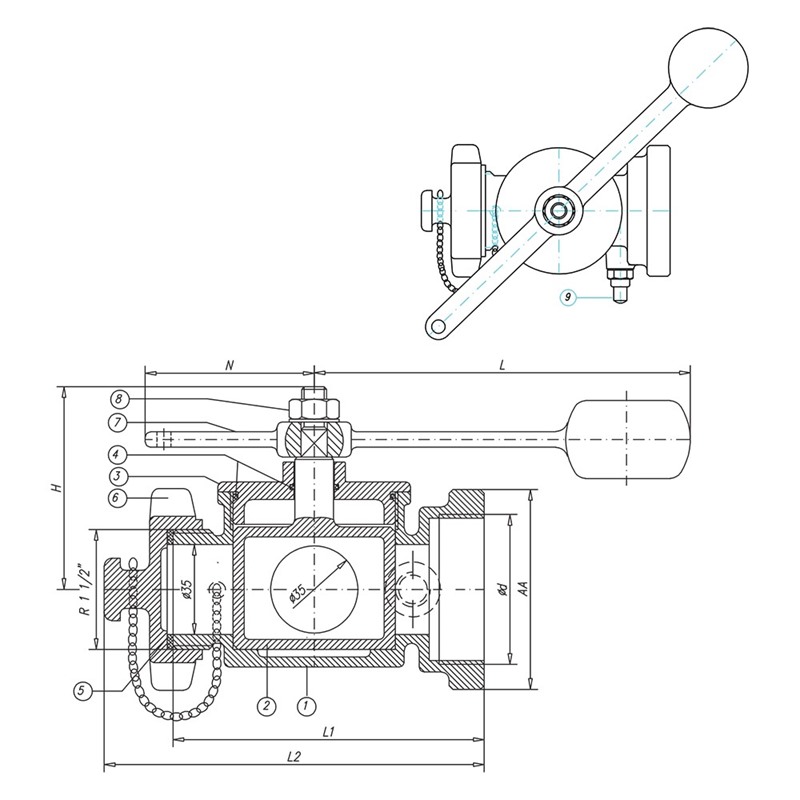

| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | CC491K(Rg-5 Bronze) |
| 2 | Cock | CC491K(Rg-5 Bronze) |
| 3 | Bonnet | CC491K(Rg-5 Bronze) |
| 4 | O-Ring | NBR |
| 5 | Gasket | NBR |
| 6 | Dust & Cap | CC491K(Rg-5 Bronze) |
| 7 | Handlever | GG-25 |
| 8 | Nut | 8,8 |
| 9 | Test Valve | CW453K(CuSn8) |
| Nominal Diameter | Valve Dimensions DIN 86 120 Threaded Dimensions DIN 259 / ISO R 228 | Weight | Stock Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| DN | L1 | L2 | H | Ød | AA | L | N | kg | |
| 32 | 120 | 135 | 85 | 1 1/4” | 55 | 180 | 95 | 3,5 | |
| 40 | 125 | 140 | 1 1/2” | 4 | |||||
| 50 | 2” | 70 | 4,5 | ||||||
| 65 | 130 | 145 | 2 1/2” | 85 | 5 | ||||

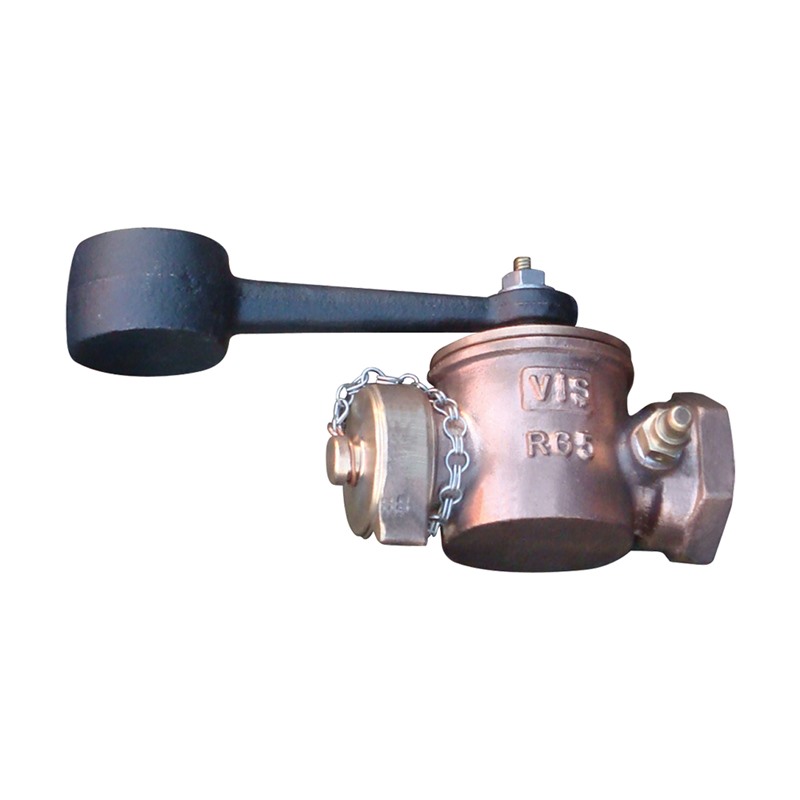

| FULL BORE - THREADED | ||
| Pressure Rate | : | PN2,5 DIN 86 120 |
| Size Range | : | DN32-DN65(11/4"-21/2") DIN 259 / ISO / R 228 |
