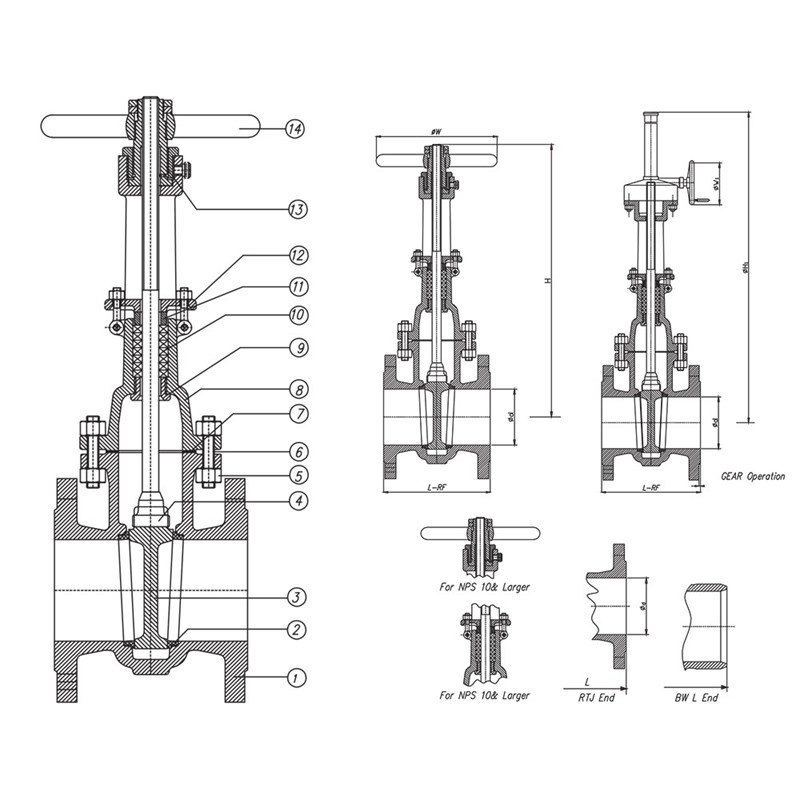

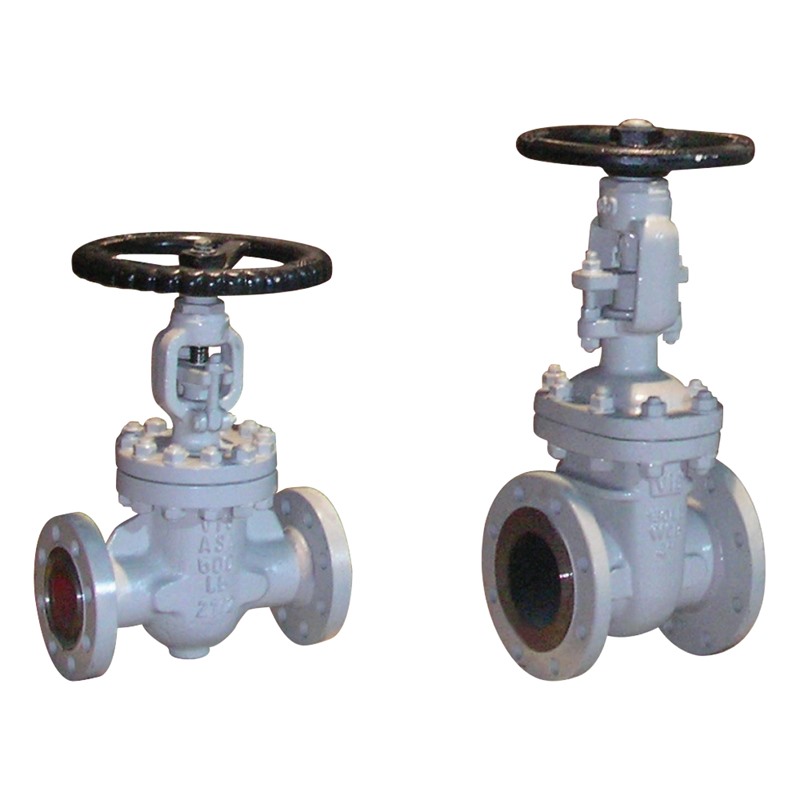

| STANDART MATERIAL SPECIFICATIONS | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Parts name | Carbon steel to ASTM | Alloy Steel to ASTM | Stainless Steel to ASTM | ||||||||
| 1 | Body | A216 WCB | A352 LCB | A217 WCI | A217 WC6 | A217 WC9 | A217 C5 | A351 CF8 | A351 CF8M | A351 CF3M | A351 CF3M |
| 8 | Bonnet | A216 WCB | A352 LCB | A217 WCI | A217 WC6 | A217 WC9 | A217 C5 | A351 CF8 | A351 CF8M | A351 CF3M | A351 CF3M |
| 6 | Bolts | A193 B7 | A320 L7 | A193 B7 | A193 B16 | A193 B16 | A193 B16 | A193 B8 | A193 B8 | A193 B8 | A193 B8 |
| 5 | Nuts | A194 2H | A194 4 | A194 2H | A194 4 | A194 4 | A194 4 | A194 8 | A194 8 | A194 8 | A194 8 |
| 11 | Gland | A182 F6a | A182 F6a | A182 F6a | A182 F6a | A182 F6a | A182 F6a | A182 F304 | A82 F316 | A182 F316L | A182 F316L |
| 12 | Gland Flange | A216 WCB | A352 LCB | A217 WCI | A217 WC6 | A217 WC9 | A217 C5 | A351 CF8 | A351 CF8M | A351 CF3M | A351 CF3M |
| 2 | Disc | A216 WCB | A352 LCB | A217 WCI | A217 WC6 | A217 WC9 | A217 C5 | A351 CF8 | A351 CF8M | A351 CF3M | A351 CF3M |
| 7 | Gasket | SS Spiral Wound W/ graphite, or SS Spiral Wound W/PTFE, or Reinforced PTFE | |||||||||
| 10 | Packing | Braided graphite, or Die-formed graphite ring or PTFE | |||||||||
| 13 | Stem Nut | Copper alloy or A439 D2 | |||||||||
| 14 | Hand Wheel | Ductile iron or Carbon steel | |||||||||
| STANDRAT MATERIAL TO API 600 | |||
|---|---|---|---|
| Trim Code | Seat Ring Surface Part No.2 | Wedge Surface Part No.3 | Stem Part No.4 |
| 1 | F6 | F6 | F6 |
| 2 | F304 | F304 | F304 |
| 5 | Stellite | Stellite | F6 |
| 8 | Stellite | F6 | F6 |
| 9 | Monel | Monel | Monel |
| 10 | F316 | F316 | F316 |
| 13 | Alloy 20 | Alloy 20 | Alloy 20 |
| Nominal Pressure | Nominal Diameter | Valve Dimensions (mm) | Weight (kg) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN | NPS | L | d | H | H1 | W | W1 | |||||
| RF | RTJ | BW | H.W | G.O | ||||||||
| Class 150 JIS 10K | 15 | 1.2 | 108 | 119 | 108 | 14 | 218 | - | 120 | - | 4 | - |
| 20 | 3.4 | 117 | 130 | 117 | 19 | 190 | - | 120 | - | 5 | - | |
| 25 | 1 | 127 | 140 | 127 | 25 | 256 | - | 140 | - | 7 | - | |
| 32 | 1 1/4 | 140 | 153 | 140 | 31 | 268 | - | 180 | - | 10 | - | |
| 40 | 1 1/2 | 165 | 178 | 165 | 38 | 326 | - | 200 | - | 15 | - | |
| 50 | 2 | 178 | 191 | 216 | 30 | 340 | - | 200 | - | 20 | - | |
| 65 | 2 1/2 | 191 | 203 | 241 | 63 | 365 | - | 200 | - | 23 | - | |
| 80 | 3 | 203 | 229 | 283 | 76 | 410 | - | 250 | - | 36 | - | |
| 100 | 4 | 229 | 254 | 305 | 100 | 485 | - | 280 | - | 54 | - | |
| 125 | 5 | 254 | 267 | 381 | 127 | 520 | - | 280 | - | 62 | - | |
| 150 | 6 | 267 | 279 | 403 | 150 | 595 | 795 | 300 | 310 | 82 | 104 | |
| 200 | 8 | 262 | 305 | 419 | 200 | 755 | 1015 | 360 | 310 | 136 | 150 | |
| 250 | 10 | 330 | 419 | 457 | 250 | 895 | 1210 | 400 | 310 | 196 | 215 | |
| 300 | 12 | 356 | 445 | 502 | 300 | 1040 | 1405 | 450 | 460 | 299 | 315 | |
| 350 | 14 | 381 | 470 | 572 | 336 | 1145 | 1535 | 500 | 460 | 381 | 451 | |
| 400 | 16 | 406 | 521 | 610 | 387 | 1333 | 1780 | 500 | 460 | 536 | 597 | |
| 450 | 18 | 432 | - | 660 | 438 | 1420 | 1900 | 600 | 460 | 608 | 651 | |
| 500 | 20 | 457 | - | 711 | 488 | 1635 | 2220 | 700 | 530 | 827 | 863 | |
| 600 | 24 | 508 | - | 813 | 590 | 1862 | 2557 | 800 | 530 | 1202 | 1357 | |
| 650 | 26 | 559 | - | 864 | 633 | - | 2680 | - | 530 | 1281 | 1550 | |
| 700 | 28 | 610 | - | 914 | 684 | - | 2890 | - | 530 | - | 1880 | |
| 750 | 30 | 610 | - | 914 | 735 | - | 3110 | - | 600 | - | 2300 | |
| 800 | 32 | 711 | - | 965 | 779 | - | 3280 | - | 600 | - | 2550 | |
| 850 | 34 | 711 | - | 1016 | 830 | - | 3500 | - | 600 | - | 2950 | |
| 900 | 36 | 711 | - | 1016 | 874 | - | 3640 | - | 600 | - | 3390 | |
| 1000 | 40 | 812.8 | - | 1067 | - | - | 4200 | - | 1000 | - | 4042 | |
| 1200 | 48 | 1067 | - | 1168 | - | - | 5020 | - | 1000 | - | 5220 | |
| Design and Manufacture | : | API 600,API6D |
| Inspection and Tests | : | API598,API6D,API600 |
| End Flange Dimension | : | ASME B16.5 |
| End Flange Dimension | : | ASME B16.47 A, MSS SP-4 |
| End Flange Dimension | : | ASME B16.47 B, API605 |
| BW end Dimension | : | ASME B16.25 |
| Face to Face | : | ASME B16.10 |
| Pressure-temperature ratings | : | ASME B16.34 |
