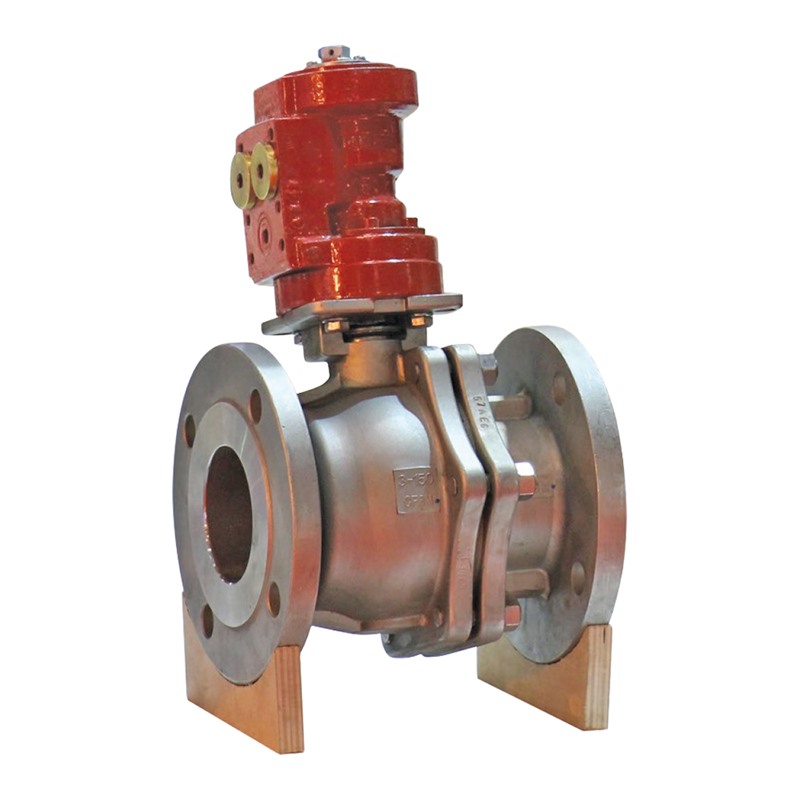

| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | Cast Stainless Steel AISI 316 |
| 2 | Body Seat | Teflon / PTFE |
| 3 | Ball | Cast Stainless Steel AISI 316 |
| 4 | Stem | Stainless Steel ASTM A182 Gr. F316 |
| 5 | Bonnet | Cast Stainless Steel AISI 316 |
| 6 | Stud | Stainless Steel ASTM A182 Gr. F316 |
| 7 | Nut | Stainless Steel ASTM A182 Gr. F316 |
| 8 | Lever | Ductile Iron and Steel |

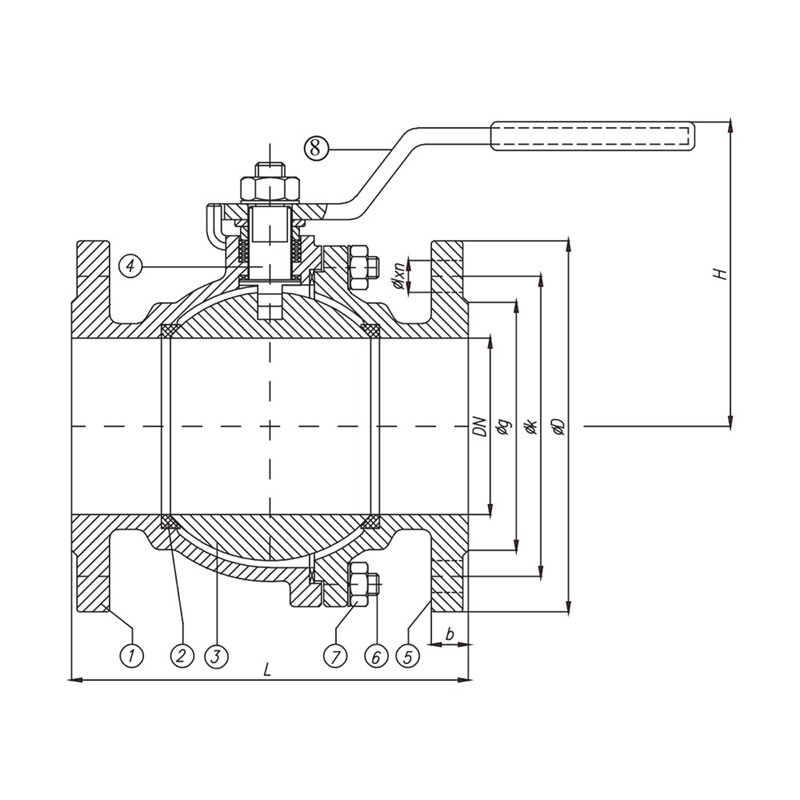

| Nominal Pressure | Nominal Diameter | Valve Dimensions | Flange Dimensions DIN EN 1092 | Weight | |||||
|---|---|---|---|---|---|---|---|---|---|
| PN | DN | L | H | ØD | Øk | Øg | b | ØLxn | kg |
| 16 | 32 | 130 | 110 | 140 | 100 | 78 | 18 | Ø18x4 | 8 |
| 40 | 140 | 160 | 150 | 110 | 88 | 18 | Ø18x4 | 11 | |
| 50 | 150 | 160 | 165 | 125 | 102 | 18 | Ø18x4 | 16 | |
| 65 | 170 | 170 | 185 | 145 | 122 | 18 | Ø18x4 | 25 | |
| 80 | 180 | 210 | 200 | 160 | 138 | 20 | Ø18x8 | 35 | |
| 100 | 190 | 240 | 220 | 180 | 158 | 20 | Ø18x8 | 50 | |
| 125 | 200 | 280 | 250 | 210 | 188 | 22 | Ø18x8 | 74 | |
| 150 | 210 | 330 | 285 | 240 | 212 | 22 | Ø22x8 | 110 | |
| 200 | 230 | 400 | 340 | 295 | 268 | 24 | Ø37x12 | 155 | |
| Design | : | DIN 3357 |
| Pressure Rate | : | PN 16 |
| Size Range | : | DN32 - DN200 |
| Face to Face | : | EN 558 Serie 14, DIN 3202 F4 |
| Flange Ends | : | EN 1092 |
| Tests | : | EN 12266 & API 598 |
