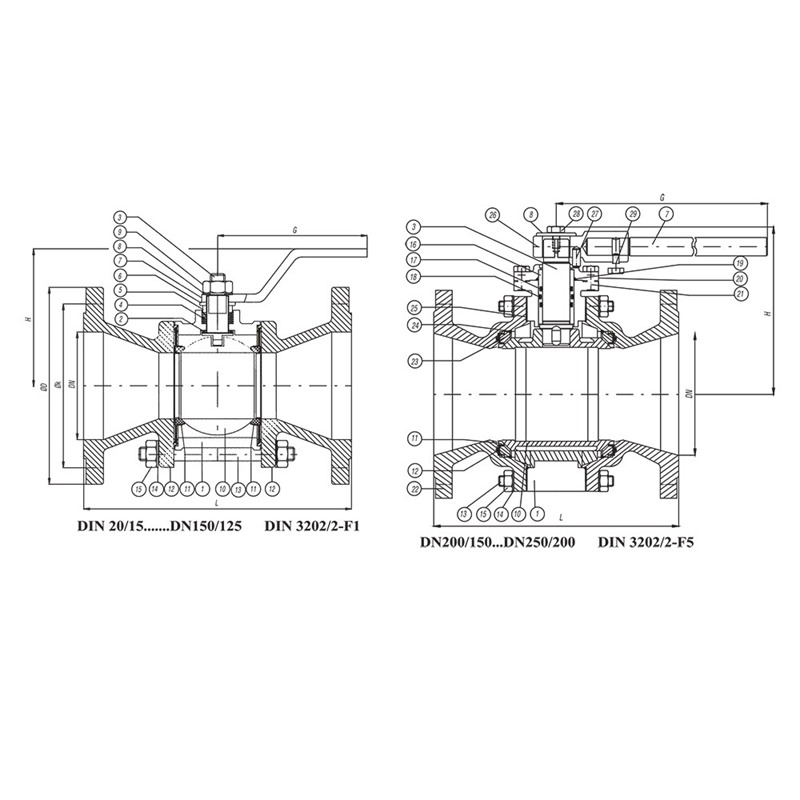

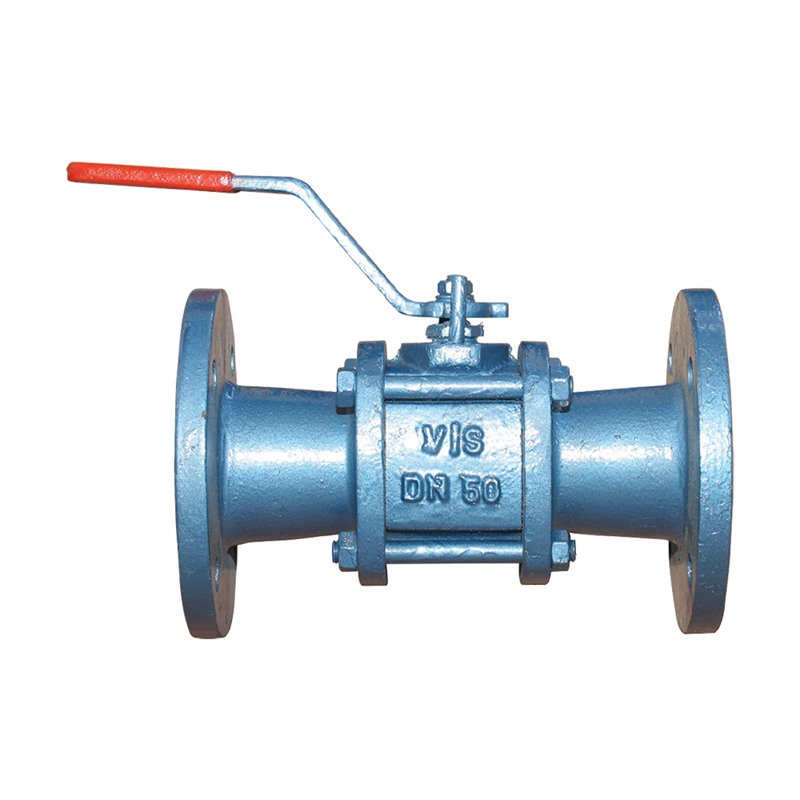

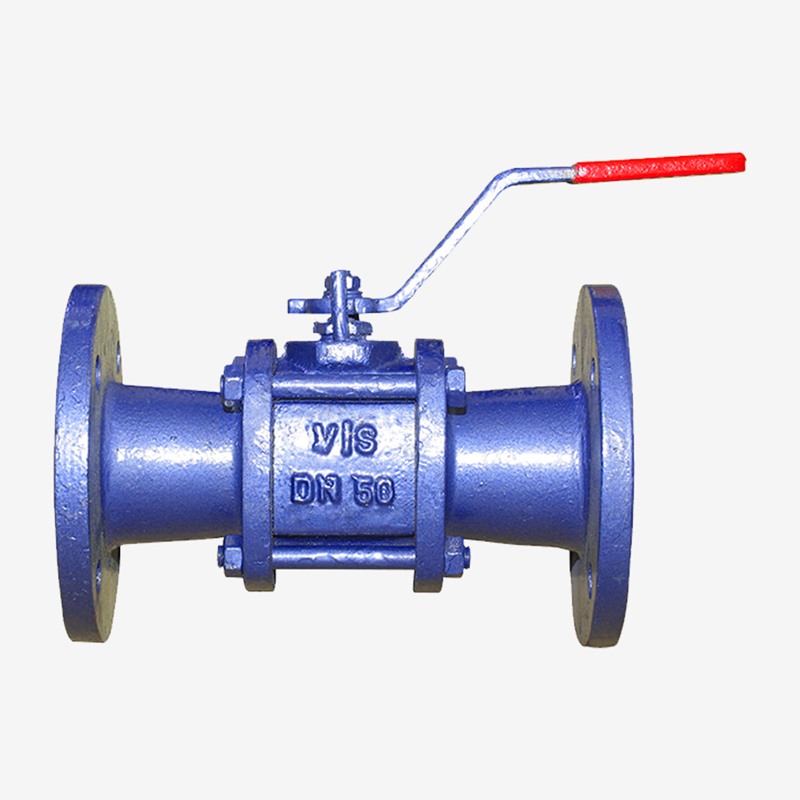

| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | GG 25 / GGG-40-50 |
| 2 | Gasket | PTFE |
| 3 | Stem | AISI 1304 / AISI 1316 |
| 4 | Gasket | PTFE |
| 5 | Gland Bush | Ms 58 / AISI 1304 |
| 6 | Stopper | St 37 / AISI 1304 |
| 7 | Lever | St 37 / AISI 1304 |
| 8 | Washer | St 37 / AISI 1304 |
| 9 | Nut | 5 D/SS |
| 10 | Ball | AISI 304 |
| 11 | Spring Seal | AISI 304 + PTFE |
| 12 | Flange | GG 25 / GGG-40-50 |
| 13 | Stud | 5.6/SS |
| 14 | Washer | St 37/ 304 |
| 15 | Nut | 5 D/SS |
| 16 | Stem Bush | PTFE |
| 17 | O-Ring | EPDM |
| 18 | O-Ring | EPDM |
| 19 | O-Ring | EPDM |
| 20 | Bonnet | GG 25 / GGG-40-50 |
| 21 | Bolt | 5 D/SS |
| 22 | O-Ring | EPDM |
| 23 | Support Ring | GG 25 / GGG-40-50 |
| 24 | Saffety Wire | AISI 1304 |
| 25 | Gasket | Klingerit / Franzelit |
| 26 | Lever Adaptor | GG 25 / GGG-40-50 |
| 27 | Pin | AISI 1304 |
| 28 | Washer | St 37 / AISI 1304 |
| 29 | Bolt | 5 D/SS |
| Nominal Diameter | Valve Dimensions TS 3148/19 DIN 3357 | PN16 Flange Dimensions TS 810 / DIN 2501 | Weight | |||
|---|---|---|---|---|---|---|
| DN | L | G max. | H max. | D | k | kg |
| 20 | 150 | 160 | 95 | 105 | 75 | 2,7 |
| 25 | 160 | 180 | 110 | 115 | 85 | 3,5 |
| 32 | 180 | 180 | 115 | 140 | 100 | 5,4 |
| 40 | 200 | 250 | 130 | 150 | 110 | 6,8 |
| 50 | 230 | 300 | 135 | 165 | 125 | 9,55 |
| 65 | 290 | 320 | 145 | 185 | 145 | 15,15 |
| 80 | 310 | 350 | 155 | 200 | 160 | 21,6 |
| 100 | 350 | 450 | 195 | 220 | 180 | 30,2 |
| 125 | 400 | 500 | 220 | 250 | 210 | 44,8 |
| 150 | 450 | 700 | 265 | 285 | 240 | 72,2 |
| 200 | 400 | 700 | 300 | 340 | 295 | 100 |
| 250 | 450 | 1000 | 380 | 405 | 355 | 141 |
| Design | : | DIN 3357, TS 3148/19 |
| Pressure Rate | : | PN 16 |
| Size Range | : | DN20 - DN250 |
| Face to Face | : | EN 558 Serie 1, DIN 3202 F1 |
| Flange Ends | : | EN 1092 |
| Tests | : | EN 12266 & API 598 |
