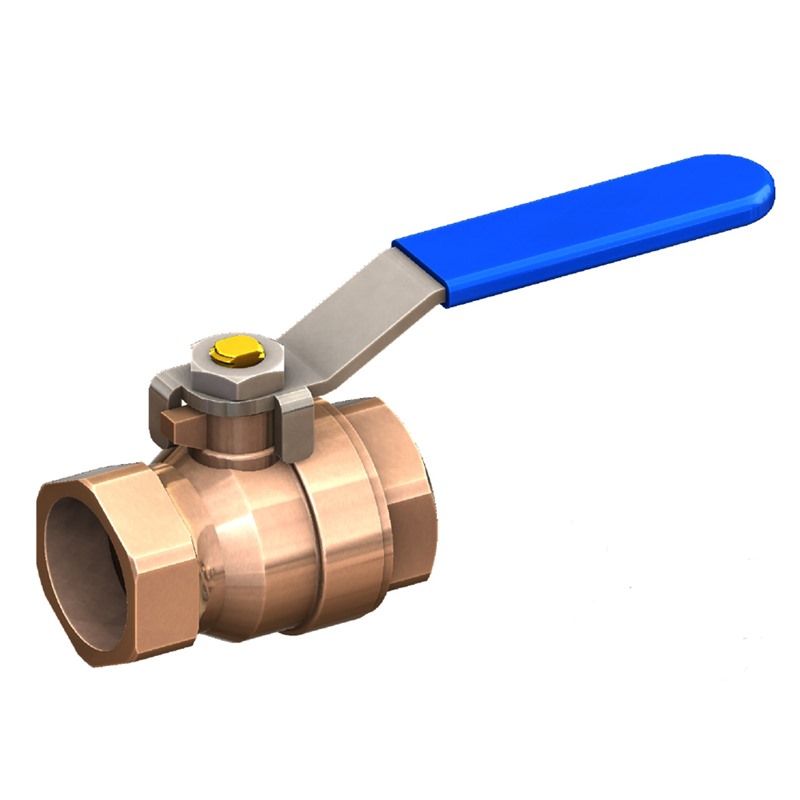

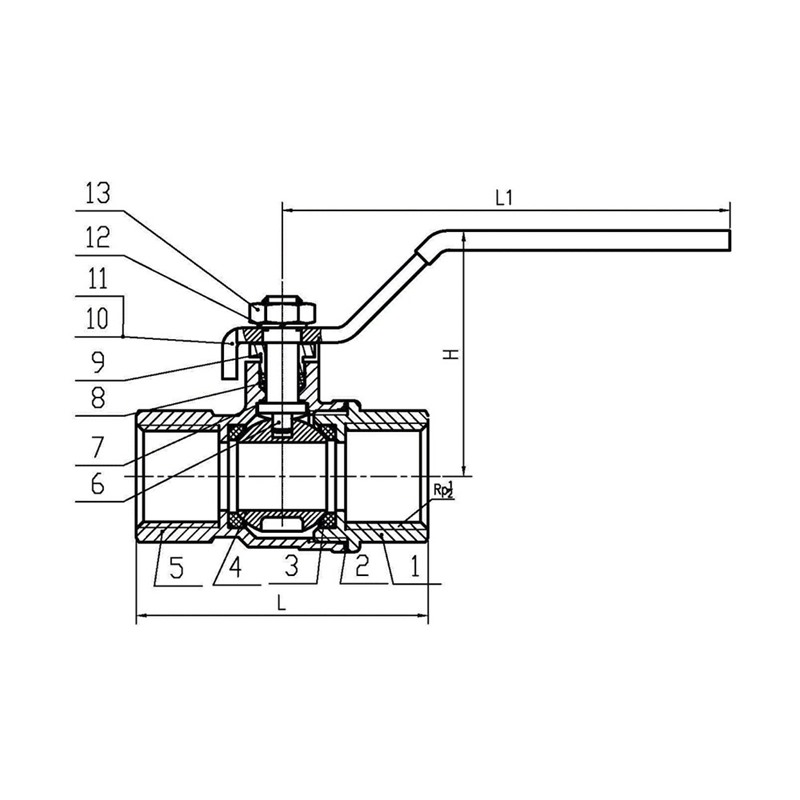

| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | Retainer | Bronze Rg5 |
| 2 | Packing | PTFE |
| 3 | Seat | PTFE |
| 4 | Ball | Bronze Rg5 (Chrome) |
| 5 | Body | Bronze Rg5 |
| 6 | Stem | CuZn36Pb2As |
| 7 | Stem Gasket | PTFE |
| 8 | Packing | PTFE |
| 9 | Gland Nut | CuZn39Pb3 |
| 10 | Lever | Steel (Chrome Pleated) |
| 11 | Lever Cover | PVC |
| 12 | Gasket | Steel |
| 13 | Nut | Brass |
| Nominal Pressure | Nominal Diameter | Valve Dimensions | ||||
|---|---|---|---|---|---|---|
| PN | DN | L | L1 | H | Ø | Rc |
| 20 | 8 | 43 | 70 | 28 | 9,5 | 1/4" |
| 10 | 46 | 70 | 28 | 9,5 | 3/8" | |
| 15 | 53 | 95 | 44 | 14 | 1/2" | |
| 20 | 61 | 110 | 51 | 19 | 3/4" | |
| 25 | 71 | 110 | 55 | 24 | 1" | |
| 32 | 85 | 140 | 65 | 31 | 1-1/4" | |
| 40 | 92 | 140 | 70 | 38 | 1-1/2" | |
| 50 | 114 | 160 | 83 | 49 | 2" | |
| 65 | 134 | 220 | 118 | 63 | 2-1/2" | |
| 80 | 152 | 270 | 132 | 73 | 3" | |
| 100 | 182 | 280 | 150 | 90 | 4" | |
| Pressure Rate | : | 20 Bar |
| Size Range | : | DN8-DN100 |
| Ends | : | BSP |
| Temperature | : | < 170 °C |
| Application | : | Water, Oil and Gas. |
