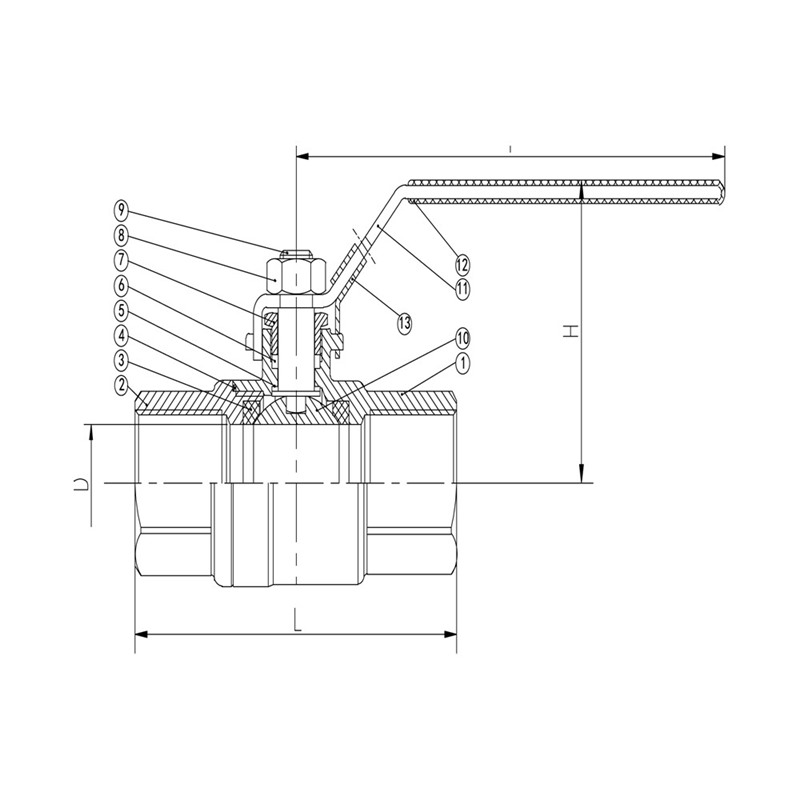

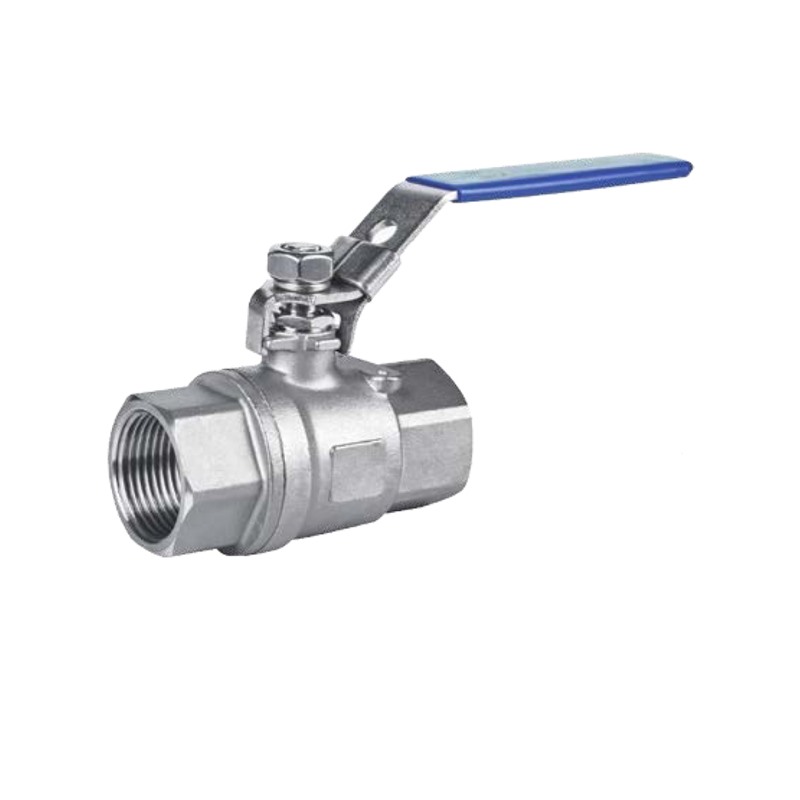

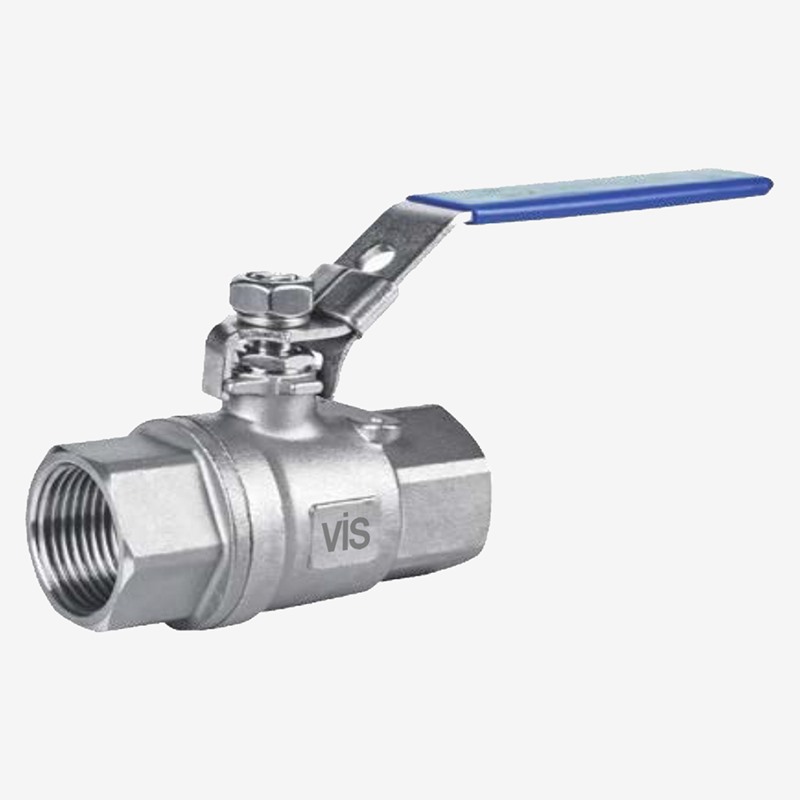

| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | CF8 / CF8M |
| 2 | Cap | CF8 / CF8M |
| 3 | Seat | PTFE |
| 4 | Gasket | PTFE |
| 5 | Washer | PTFE |
| 6 | Packing | PTFE |
| 7 | Gland | SS 201 / SS 304 |
| 8 | Nut | SS 201 / SS 304 |
| 9 | Stem | SS 304 / SS 316 |
| 10 | Ball | SS 304 / SS 316 |
| 11 | Lever | SS 201 / SS 304 |
| 12 | Lever Cover | PVC |
| 13 | Lock | SS 201 / SS 304 |
| Nominal Pressure | Nominal Diameter | Valve Dimensions | ||||
|---|---|---|---|---|---|---|
| PN | DN | L | D | H | T | Rc |
| 63 | 8 | 55 | 8 | 50 | 89 | 1/4" |
| 10 | 60 | 10 | 50 | 89 | 3/8" | |
| 15 | 75 | 15 | 56 | 107 | 1/2" | |
| 20 | 80 | 20 | 61 | 120 | 3/4" | |
| 25 | 90 | 25 | 67 | 126 | 1" | |
| 32 | 110 | 32 | 78 | 143 | 1-1/4" | |
| 40 | 120 | 40 | 83 | 160 | 1-1/2" | |
| 50 | 140 | 50 | 96 | 171 | 2" | |
| 65 | 195 | 65 | 124 | 205 | 2-1/2" | |
| 80 | 205 | 80 | 145 | 235 | 3" | |
| 100 | 235 | 100 | 162 | 296 | 4" | |
| Pressure Rate | : | 63 Bar |
| Size Range | : | DN8-DN100 |
| Ends | : | BSP |
| Application | : | Water, Oil and Gas. |
