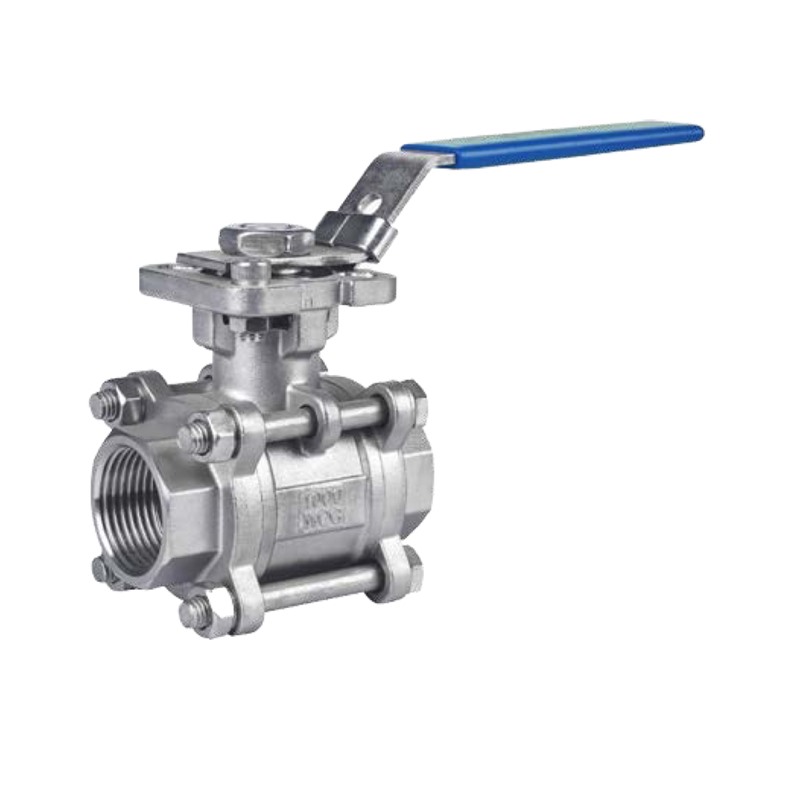

| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | CF8 / CF8M |
| 2 | Ball | SS 304 / SS 316 |
| 3 | Bolt | SS 201 / SS 304 |
| 4 | Nut | SS 201 / SS 304 |
| 5 | Packing | PTFE |
| 6 | Stem | SS 304 / SS 316 |
| 7 | Gland | SS 201 / SS 304 |
| 8 | Nut | SS 201 / SS 304 |
| 9 | Cap | CF8 / CF8M |
| 10 | Seat | PTFE |
| 11 | Washer | PTFE |
| 12 | Lever | SS 201 / SS 304 |
| 13 | Lever Cover | PVC |
| 14 | Lock | SS 201 / SS 304 |

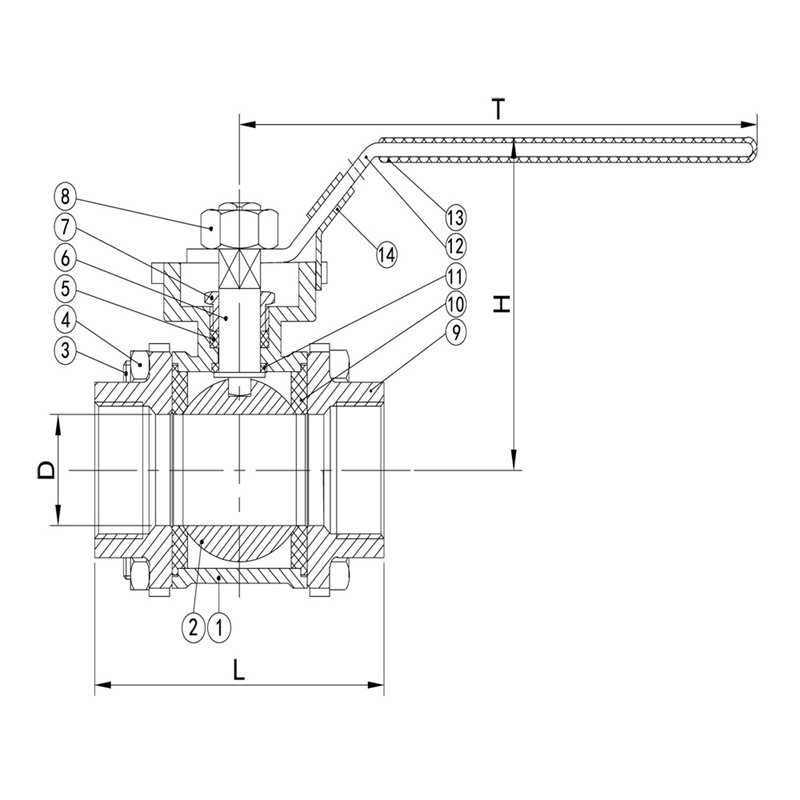

| Dimensions | |||||||
|---|---|---|---|---|---|---|---|
| DN | L | D | H | T | Rc | ISO 5211 | Stock Code |
| 8 | 65 | 8 | 65 | 131 | 1/4" | F03/F04 | |
| 10 | 65 | 10 | 65 | 131 | 3/8" | F03/F04 | |
| 15 | 75 | 15 | 63 | 131 | 1/2" | F03/F04 | |
| 20 | 80 | 20 | 74 | 131 | 3/4" | F03/F04 | |
| 25 | 90 | 25 | 86 | 167 | 1" | F04/F05 | |
| 32 | 110 | 32 | 95 | 167 | 1-1/4" | F04/F05 | |
| 40 | 120 | 40 | 116 | 193 | 1-1/2" | F05/F07 | |
| 50 | 140 | 50 | 122 | 193 | 2" | F05/F07 | |
| 65 | 185 | 65 | 147 | 242 | 2-1/2" | F07/F10 | |
| 80 | 205 | 80 | 153 | 272 | 3" | F07/F10 | |
| 100 | 235 | 100 | 167 | 295 | 4" | F07/F10 | |
| Pressure Rate | : | 63 Bar |
| Size Range | : | DN15-DN100 |
| Ends | : | BSP |
| Temperature | : | -20~180 °C |
| Application | : | Water, Oil and Gas. |
