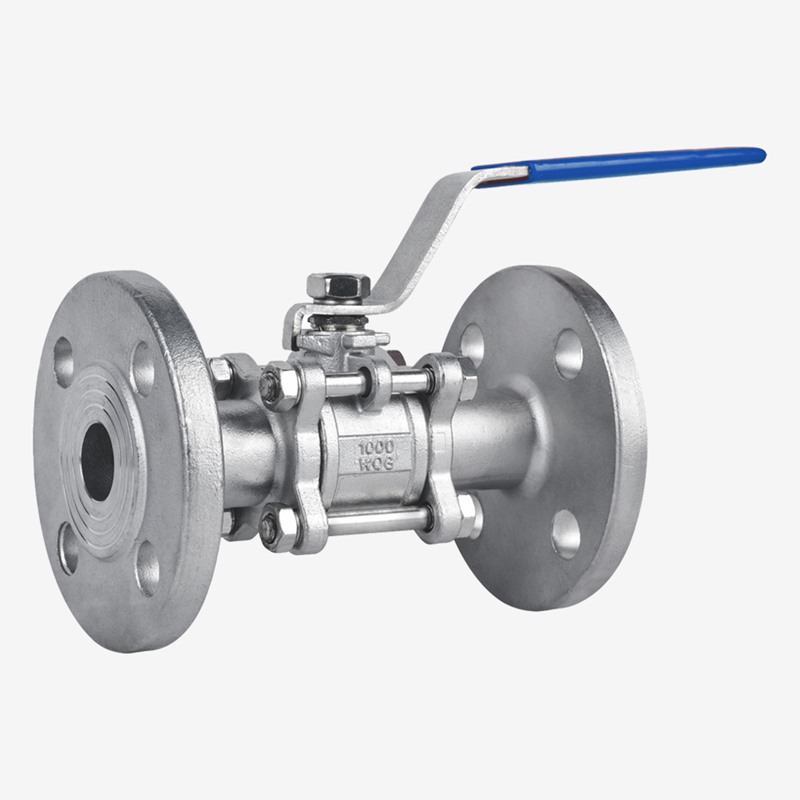

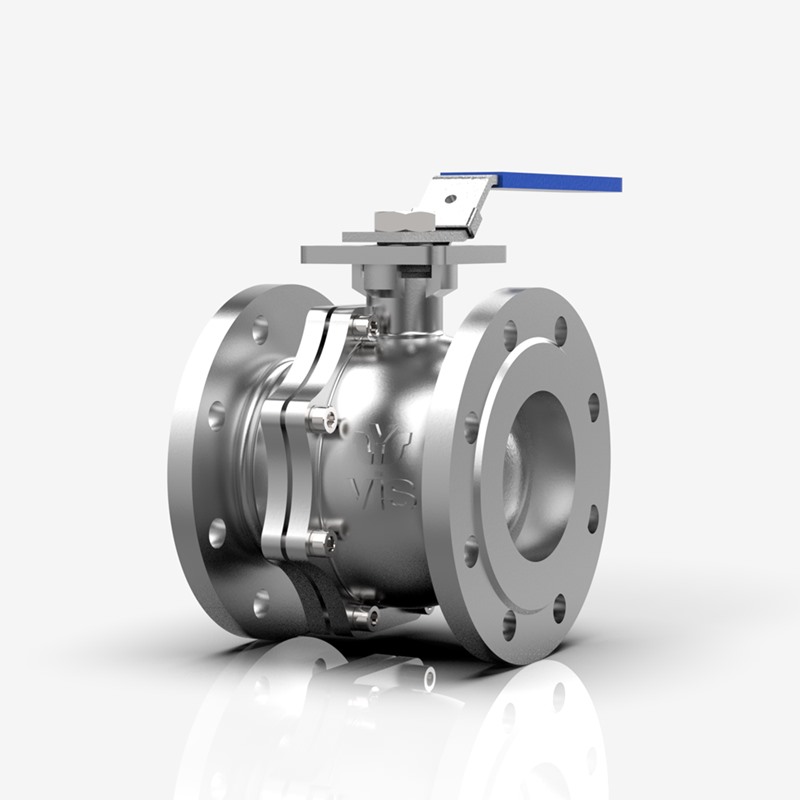

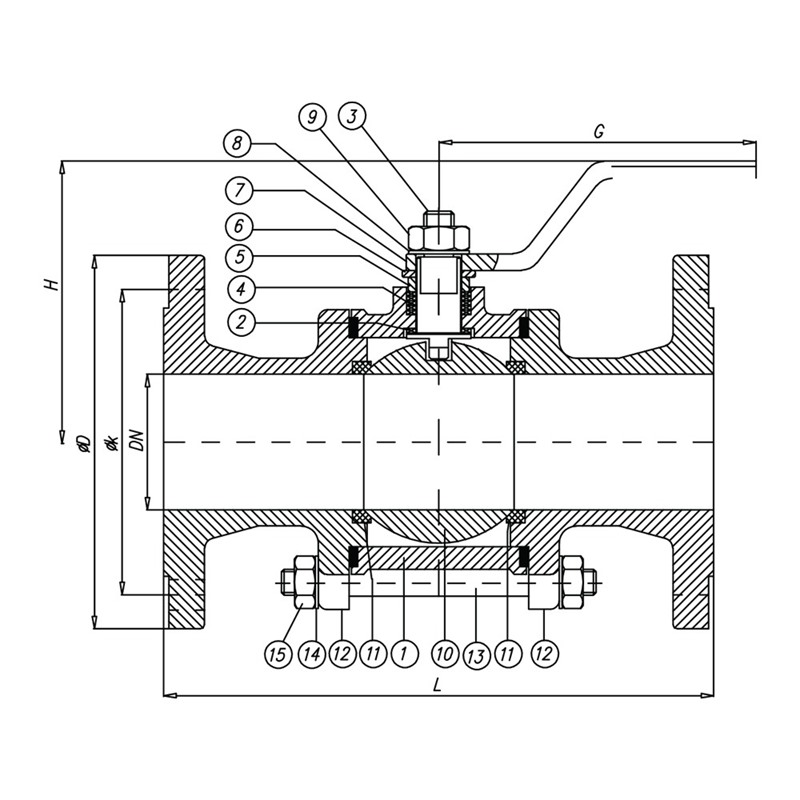

| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | AISI 304 / AISI 316 |
| 2 | Gasket | PTFE |
| 3 | Stem | AISI 304 / AISI 316 |
| 4 | Gasket | PTFE |
| 5 | Gland Bush | AISI 304 / AISI 316 |
| 6 | Stopper | AISI 304 / AISI 316 |
| 7 | Lever | AISI 304 / AISI 316 |
| 8 | Washer | AISI 304 / AISI 316 |
| 9 | Nut | 5 D/SS |
| 10 | Ball | AISI 304 / AISI 316 |
| 11 | Seat | PTFE |
| 12 | Flange | AISI 304 / AISI 316 |
| 13 | Stud | St / SS |
| 14 | Washer | St / SS |
| 15 | Nut | 5 D/SS |
| Nominal Diameter | Valve Dimensions DIN EN 558-1-1/15 DIN 3357-2 TS 3148/17 | PN10-16 Flange Dimensions DIN EN 1092-1-2 | PN25 Flange Dimensions DIN EN 1092-1-2 | PN40 Flange Dimensions DIN EN 1092-1-2 | Weight | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| DN | L | G max. | H max. | D | k | D | k | D | k | kg |
| 15 | 130 | 160 | 95 | 95 | 65 | 95 | 65 | 95 | 65 | 2,3 |
| 20 | 150 | 180 | 110 | 105 | 75 | 105 | 75 | 105 | 75 | 3,8 |
| 25 | 160 | 180 | 115 | 115 | 85 | 115 | 85 | 115 | 85 | 4 |
| 32 | 180 | 250 | 130 | 140 | 100 | 140 | 100 | 140 | 100 | 6,5 |
| 40 | 200 | 300 | 135 | 150 | 110 | 150 | 110 | 150 | 110 | 8,55 |
| 50 | 230 | 320 | 145 | 165 | 125 | 165 | 125 | 165 | 125 | 13,55 |
| 65 | 290 | 350 | 155 | 185 | 145 | 185 | 145 | 185 | 145 | 20,15 |
| 80 | 310 | 450 | 195 | 200 | 160 | 200 | 160 | 200 | 160 | 29,5 |
| 100 | 350 | 500 | 220 | 220 | 180 | 235 | 190 | 235 | 190 | 40,3 |
| 125 | 400 | 700 | 265 | 250 | 210 | 270 | 220 | 270 | 220 | 68 |
| 150 | 480 | 700 | 300 | 285 | 240 | 300 | 250 | 300 | 250 | 86 |
| Design | : | DIN 3357-2, TS 3148/17 |
| Pressure Rate | : | PN 10-16-25-40 |
| Size Range | : | DN15-DN150 |
| Face to Face | : | EN 558 Serie 1, DIN 3202 F1 |
| Flange Ends | : | EN 1092 |
| Tests | : | EN 12266 % API 598 |
