| PRESSURE - TEMPERATURE | ||
|---|---|---|
| °C | : | -10 ……. 150 |
| PN | : | 63 |

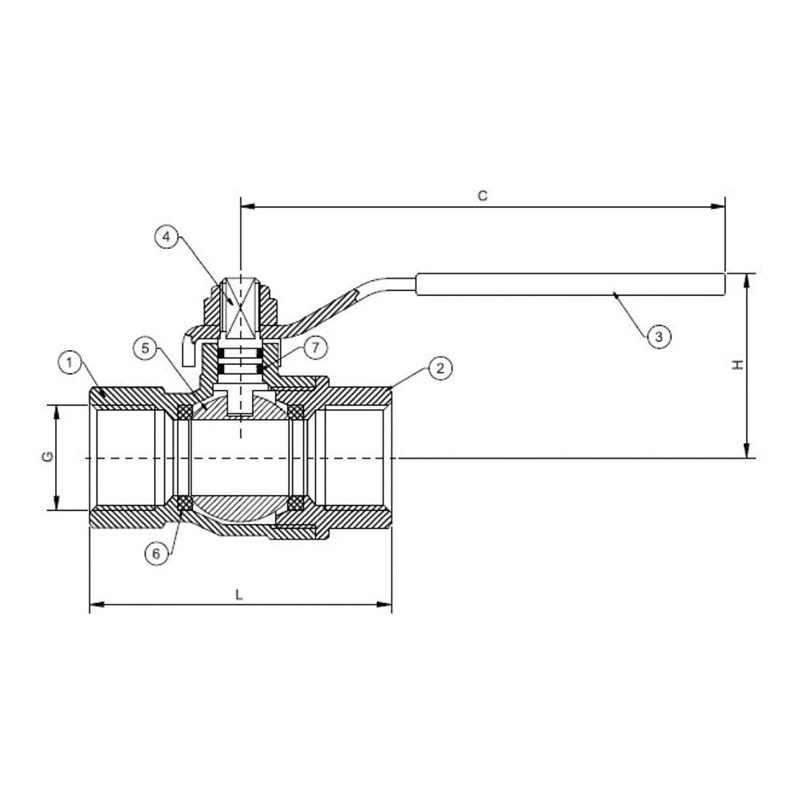

| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | Stainless Steel 304 / 316 |
| 2 | Bonnet | Stainless Steel 304 / 316 |
| 3 | Lever | Stainless Steel 304 / 316 |
| 4 | Stem | Stainless Steel 304 / 316 |
| 5 | Ball | Stainless Steel 304 / 316 |
| 6 | Seat | PTFE |
| 7 | O-Ring | PTFE |
| Nominal Pressure | Nominal Diameter | Valve Dimensions | Weight | |||
|---|---|---|---|---|---|---|
| PN | DN | G | L | A | H | kg |
| 63 | 15 | 1/2" | 75 | 103 | 52 | 0,2 |
| 20 | 3/4" | 80 | 123 | 61 | 0,5 | |
| 25 | 1" | 90 | 123 | 65 | 0,8 | |
| 32 | 1"-1/4" | 110 | 153 | 79 | 1,1 | |
| 40 | 1"-1/2" | 120 | 153 | 83 | 1,8 | |
| 50 | 2" | 140 | 185 | 97 | 3 | |
| Pressure Rate | : | PN 63 |
| Size Range | : | 1/2"-4" |
| Temperature | : | -10....+180°C |
| Flange Ends | : | BSP Threaded |
| Tests | : | DIN EN 12266 |
