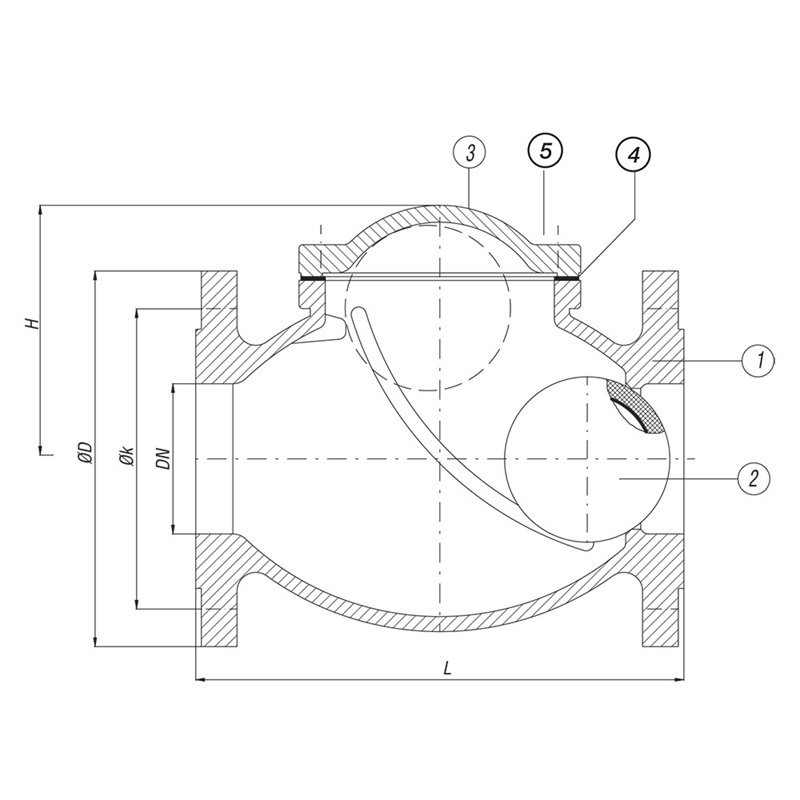

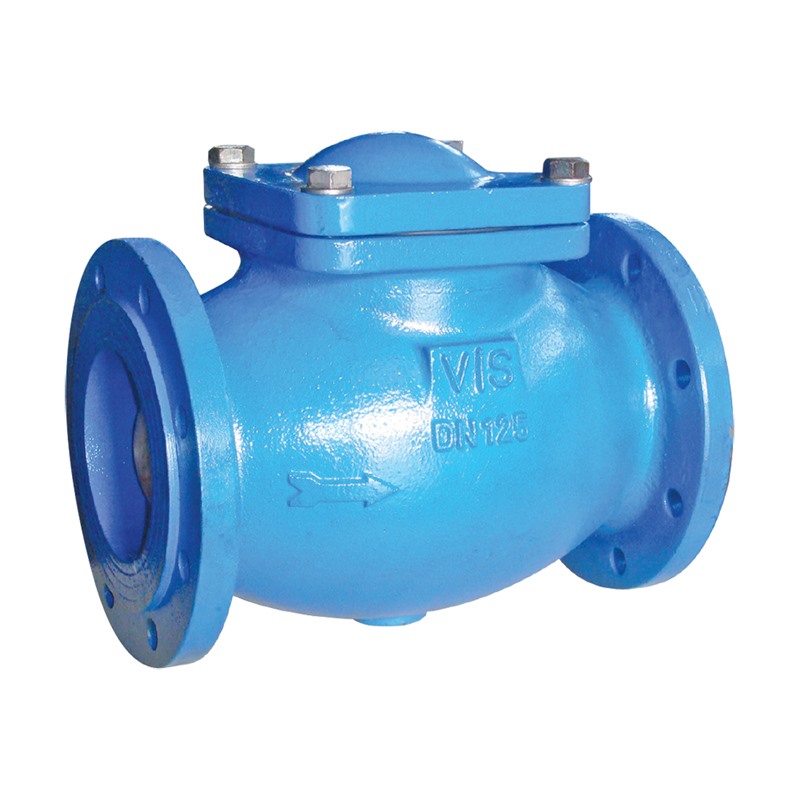

| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | GG 25 / GGG 40 / 50 |
| 2 | Ball | NBR + (GG-25) St-37 |
| 3 | Bonnet | GG 25 / GGG 40 / 50 |
| 4 | Gasket | NBR |
| 5 | Bolt | 5D / Stainless Steel |
| Nominal Pressure | Nominal Diameter | Valve Dimensions DIN 3202/2-F6 | PN10 Flange Dimensions DIN 2501/TS 810 | Weight | ||
|---|---|---|---|---|---|---|
| PN | DN | L | H | DN | k | kg |
| 10 | 40 | 180 | 100 | 150 | 110 | 8 |
| 50 | 200 | 110 | 165 | 125 | 9 | |
| 65 | 240 | 130 | 185 | 145 | 12 | |
| 80 | 260 | 145 | 200 | 160 | 14 | |
| 100 | 300 | 170 | 220 | 180 | 22 | |
| 125 | 350 | 195 | 250 | 210 | 30 | |
| 150 | 400 | 205 | 285 | 240 | 49 | |
| 200 | 500 | 260 | 340 | 295 | 98 | |
| 250 | 600 | 390 | 395 | 350 | 125 | |
| 300 | 700 | 500 | 445 | 400 | 240 | |
| 350 | 800 | 500 | 505 | 460 | 390 | |
| 400 | 900 | 600 | 565 | 515 | 470 | |
| 500 | 1100 | 800 | 670 | 620 | 800 | |
| Face to Face | : | EN 558 Serie 48, DIN 3202 F6 |
| Tests | : | EN 12266 |
