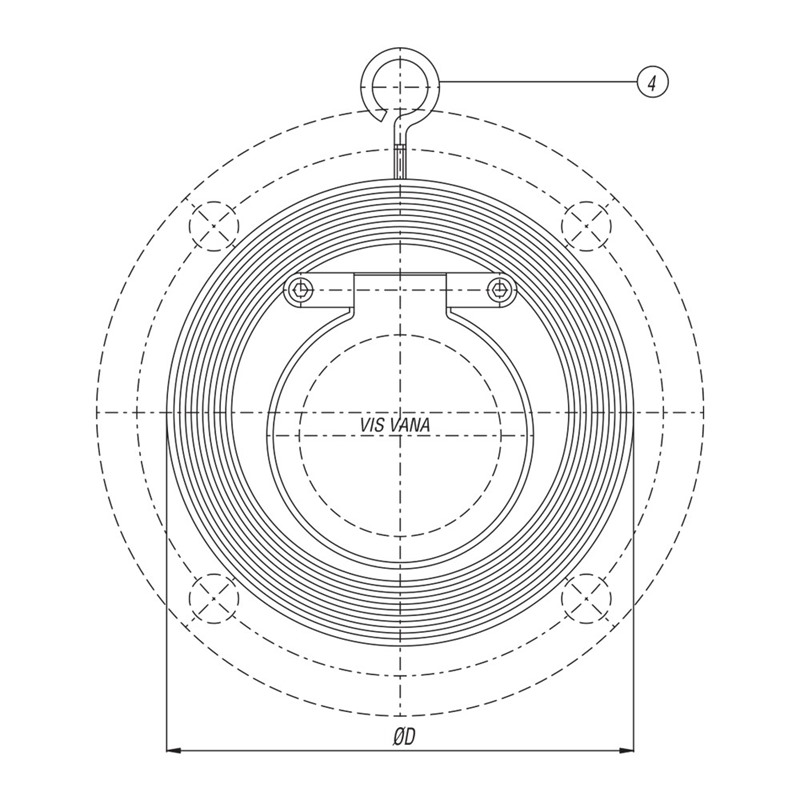

NO | PART NAME | MATERIAL |
|---|---|---|
1 | Body | GG25/GGG40/St37/304,316/Bronze RG5/CuSn10 |
2 | Body Seal | EPDM / Viton / AISI 316 / Bronze |
3 | Disc | AISI 304 / AISI 316 / Bronze |
4 | Ring Bolt | St-Zn |
| Nominal Pressure | Nominal Diameter | Valve Dimensions | Threaded Dimensions DIN EN 10226-1 PN 16 | Weight | |||
|---|---|---|---|---|---|---|---|
| PN | DN | L | H | Ød1 | t | AA | kg |
| 16 | 25 | 125 | 80 | 1” | 17 | 50 | 1,7 |
| 32 | 135 | 85 | 1 1/4" | 25 | 65 | 2,4 | |
| 40 | 151 | 105 | 11/2" | 27 | 75 | 3 | |
| 50 | 175 | 125 | 2" | 31 | 90 | 4 | |
| 65 | 202 | 135 | 21/2" | 31 | 95 | 5,5 | |

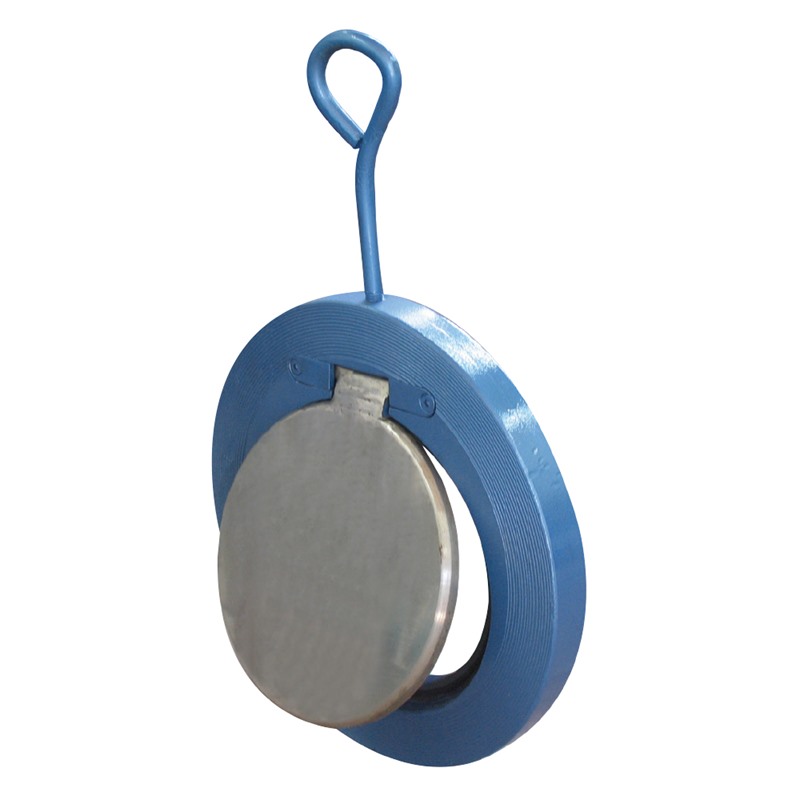

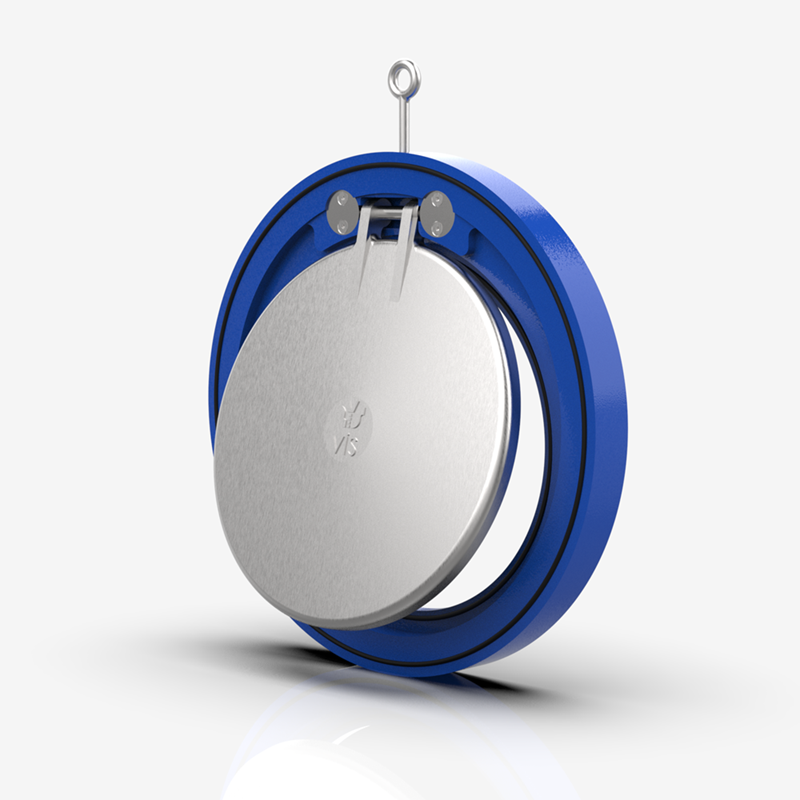

| Sandwich Type | ||
| Pressure Rate | : | PN 10-16-25 |
| Flange Ends | : | DIN 2501 |
| Nominal Diameter | : | DN 40.....800 |
