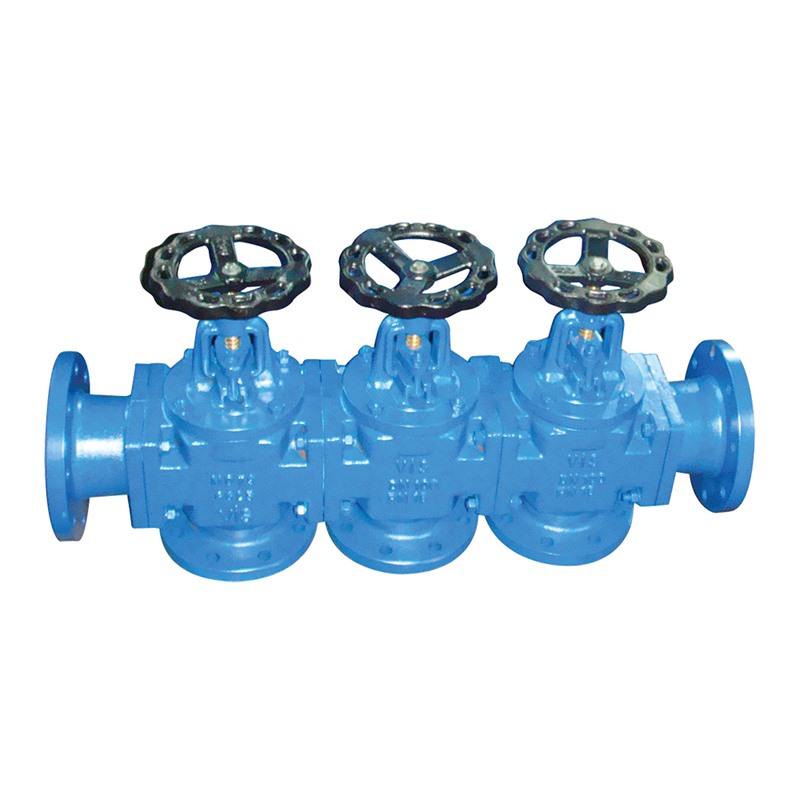

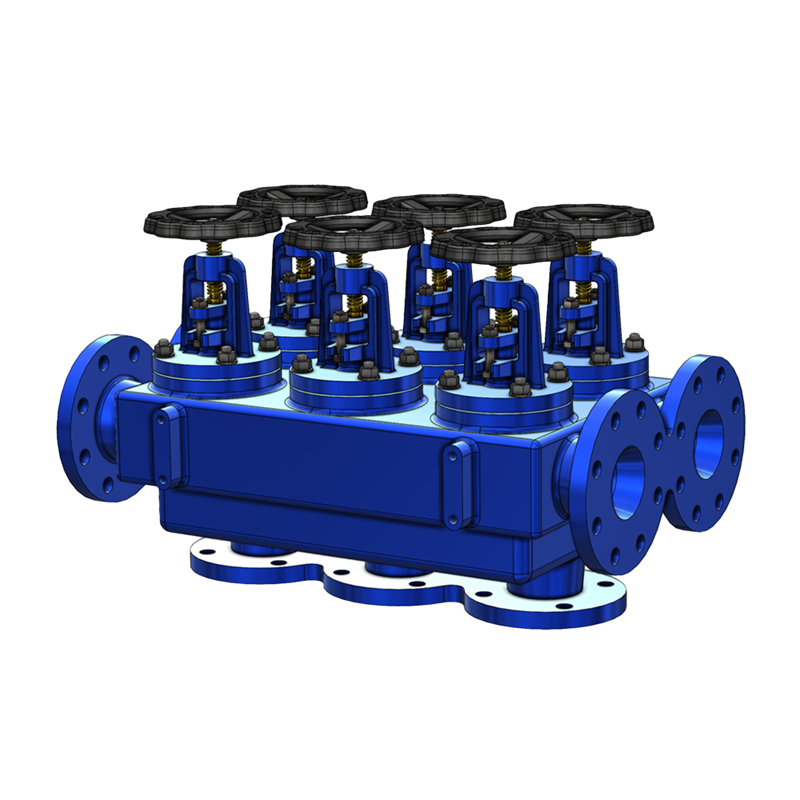

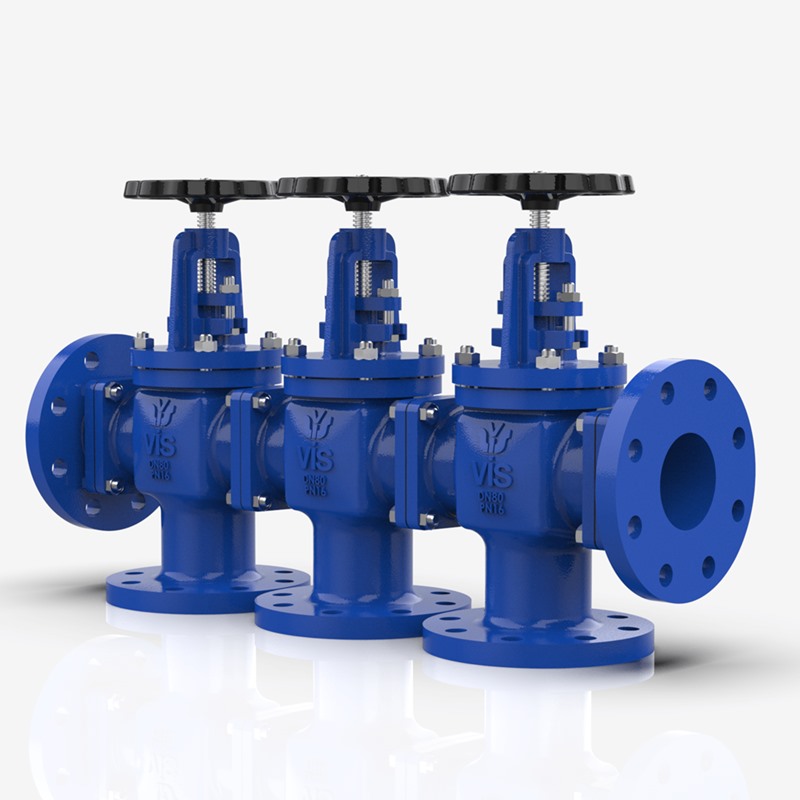

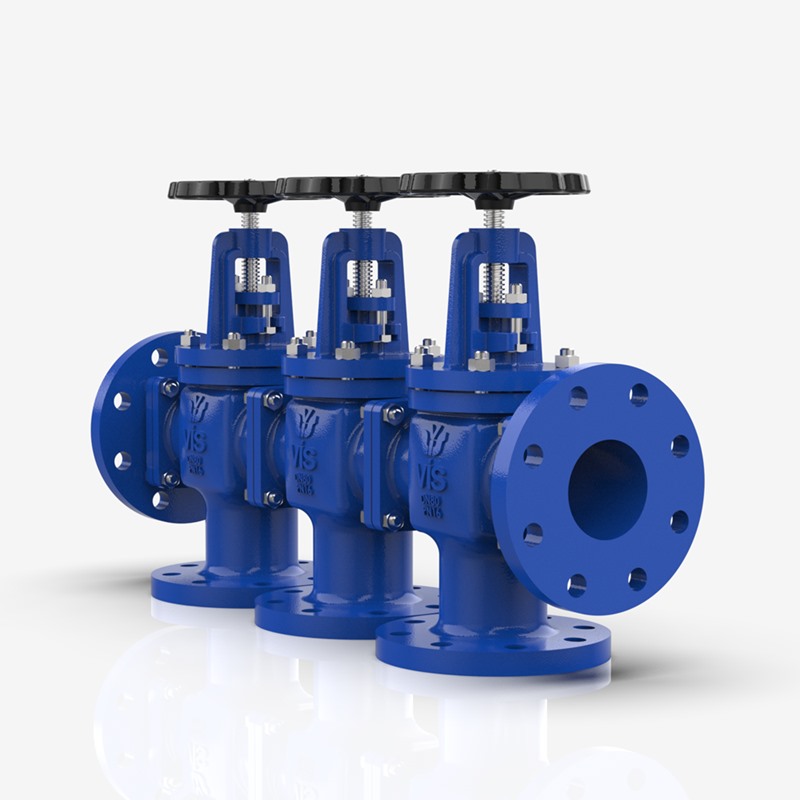

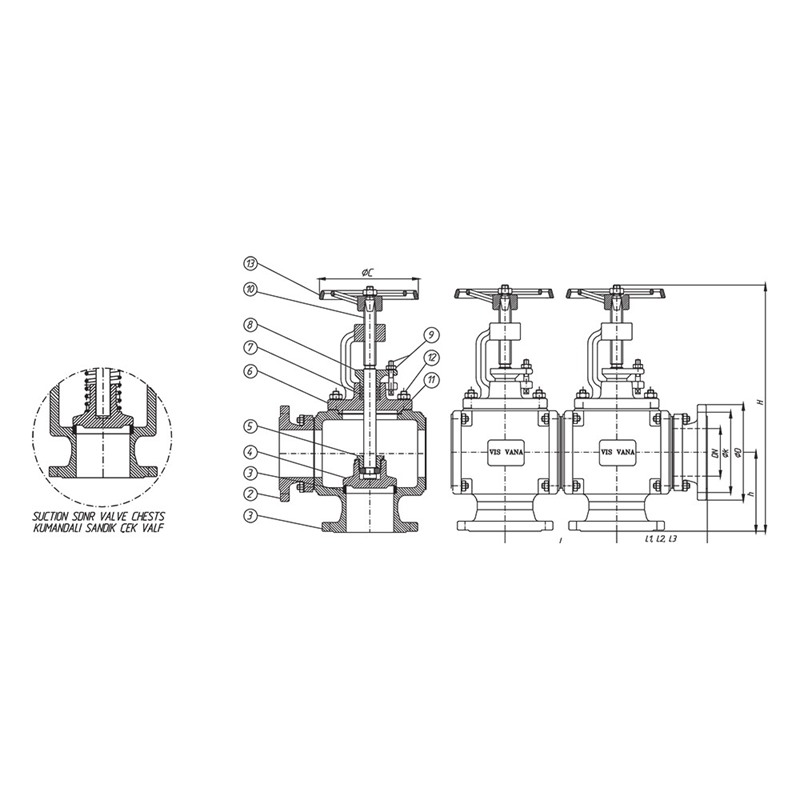

| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | GG 25 / GGG-40 / G-SC 25 |
| 2 | Flange | GG 25 / GGG-40 / G-SC 25 |
| 3 | Seat Ring | 1,4301 / Bronze |
| 4 | Disc | 1,4301 / Bronze |
| 5 | Disc Nut | Ms 58 |
| 6 | Bonnet | GG 25 / GGG-40 / G-SC 25 |
| 7 | Packing | Graphite |
| 8 | Gland | GG 25 / GGG-40 / G-SC 25 |
| 9 | T Stud, Nut | 5, 6-8 |
| 10 | Spindle | 1,4021 / Cu Sn8 |
| 11 | Gasket | Klingerite |
| 12 | Stud, Nut | 5, 6-8 |
| 13 | Handwheel | GG 2 5 |
| Nominal Pressure | PN | 16 | 10 | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Diameter | DN | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 |
| Valve Dimensions DIN HNA PN 16 | L | 115 | 130 | 145 | 170 | 185 | 205 | 225 | 260 | 295 | 355 | 415 |
| L1 | 80 | 90 | 100 | 115 | 145 | 155 | 175 | 200 | 225 | 275 | 310 | |
| L2 | 90 | 100 | 115 | 145 | 155 | 175 | 200 | 225 | 255 | 300 | 325 | |
| L3 | 100 | 115 | 145 | 155 | 175 | 200 | 225 | 255 | 275 | 325 | ||
| H | 250 | 270 | 330 | 400 | 450 | 500 | 530 | 570 | 650 | 750 | 810 | |
| h | 80 | 90 | 100 | 115 | 145 | 155 | 175 | 200 | 225 | 275 | 325 | |
| ØC | 120 | 140 | 160 | 180 | 225 | 250 | 300 | |||||
| Flange Dimensions DIN EN 1092 PN 16 | D | 115 | 140 | 150 | 165 | 185 | 200 | 220 | 250 | 285 | 340 | 405 |
| k | 85 | 100 | 110 | 125 | 145 | 160 | 180 | 210 | 240 | 295 | 355 | |
| Weight | kg | 6,0 | 8,5 | 12,0 | 18,0 | 30,3 | 33,0 | 42,0 | 55,0 | 76,0 | 130,0 | 180,0 |
| DN | Stock Code | DN | Stock Code |
|---|---|---|---|
| 25 | 100 | ||
| 32 | 125 | ||
| 40 | 150 | ||
| 50 | 200 | ||
| 65 | 250 | ||
| 80 |
| Pressure Rate | : | PN16 |
| Size Range | : | DN40-DN250 |
| Flange Ends | : | DIN EN 1092 |
| Dimensions | : | DIN HNA-PN16 |
