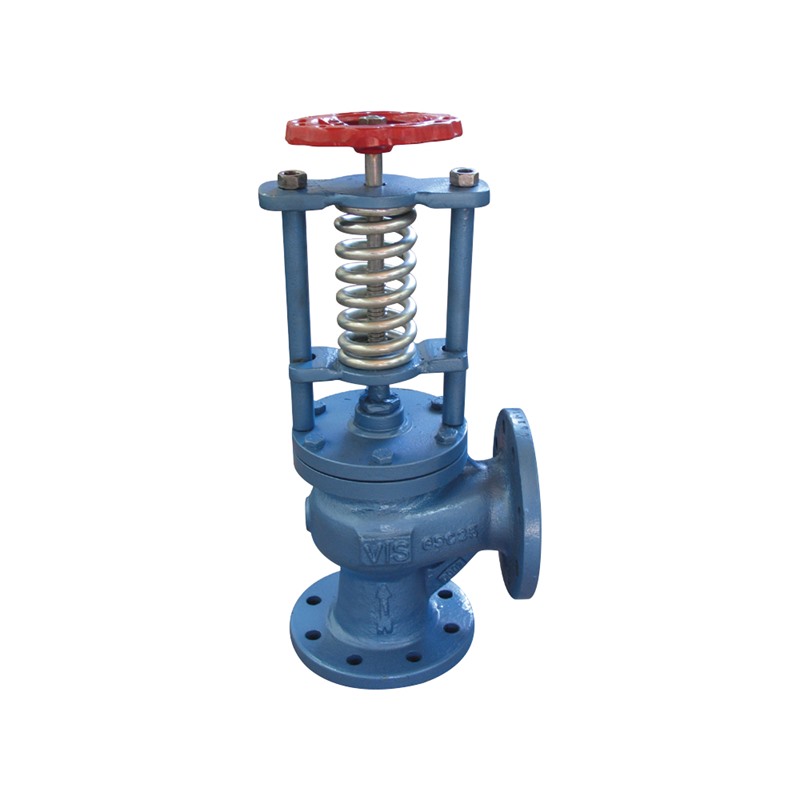

Discharge (Overboard) Valve Straight Form VDDV-16 Angle Form VADV-16

VDDV-16 VADV-16

DATASHEET

PRODUCT FEATURES

TECHNICAL SPECIFICATIONS

PRODUCT DESCRIPTIONS

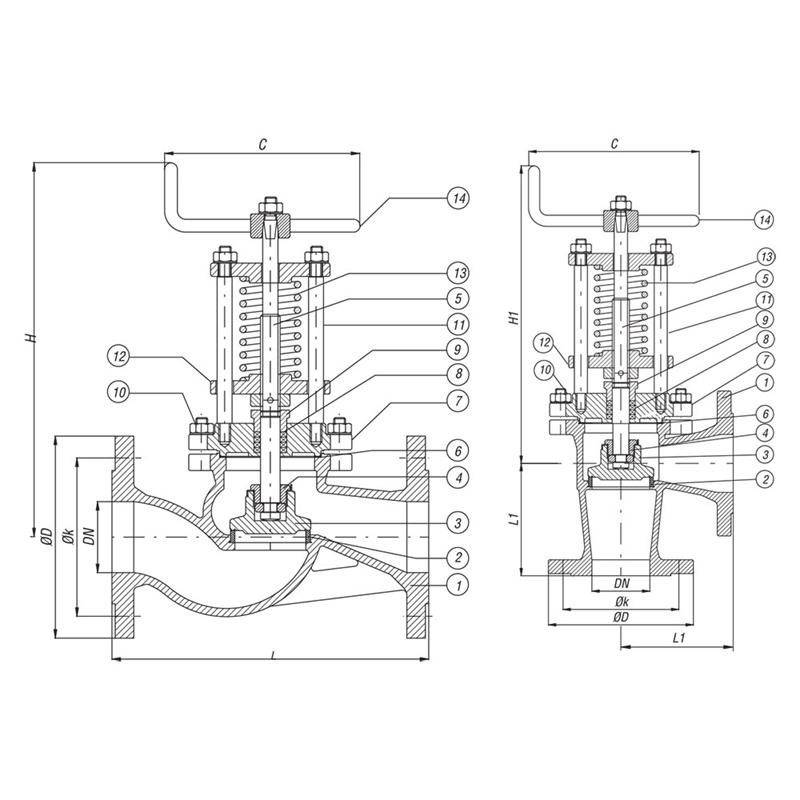

NO	PART NAME	MATERIAL
1	Body	GG 25/ GGG 40 / GS-C 25
2	Seat Ring	1,4301 / Bronze
3	Disc	1,4301 / Bronze
4	Disc Nut	Ms 58
5	Spindle	1,4021 / Cu Sn8
6	Gasket	Klingerite / Asberit
7	Bonnet	GG 25 / GGG 40 / GS-C25
8	Packing	Graphite
9	Gland	GG 25 / GGG 40 / GS-C 25
10	Stud, Nut	5,6,8
11	Pilar	Automat Steel
12	Bridge	GG 25 / GGG 40 / GS-C 25
13	Spring	AISI 301
14	Handwheel	GG25

DN	L	L1	H	H1	Strok	ØC	PN 16				PN 40
							ØD	Øk	Weight		ØD	Øk	Weight
							ØD	Øk	Straight	Angle	ØD	Øk	Straight	Angle
15	130	90	340	310	8	120	95	65	6,75	6,5	95	65	8	7
20	150	95	345	325	8	120	105	75	7	6,75	105	75	8,5	7,5
25	160	100	350	320	12	140	115	85	8	7	115	85	9	8
32	180	105	355	323	15	140	140	100	10	9	140	100	9,5	10
40	200	115	365	335	20	160	150	110	14	10	150	110	16,5	12
50	230	125	375	340	20	160	165	125	16	14	165	125	18	15
65	290	145	480	450	27	180	185	145	20	18	185	145	22,5	22
80	310	155	500	465	31	200	200	160	32	30	200	160	36	33
100	350	175	525	480	35	225	220	180	41	39	235	190	44,5	42
125	400	200	620	515	49	250	250	210	60	53	270	220	66	65
150	480	225	760	685	53	300	285	240	90	70	300	250	115	95
200	600	275	810	745	72	400	340	295	145	110	375	320	175	170
250	730	325	860	775	80	520	405	355	245	125	450	385	275	155
300	850	375	880	790	100	520	460	410	380	200	515	450	410	250

DN	Stock Code	DN	Stock Code
15		80
20		100
25		125
32		150
40		200
50		250
65		300

Pressure Rate	:	PN 16
Size Range	:	DN15 - DN300
Flange Ends	:	DIN 2533
Flange Ends	:	DIN 3356/2-F1 (Straight) DIN 3356/2-F32 (Angle)
