Fire Hydrant Diaphragm Valve

PRODUCT FEATURES

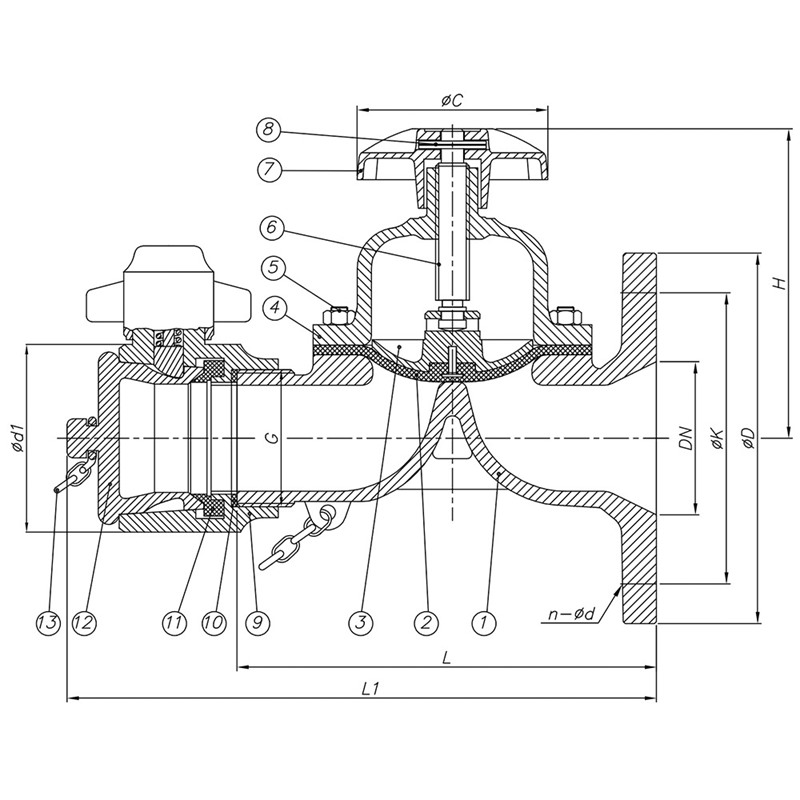

Nominal Diameter		Valve Dimensions DIN 86211							Flange Dimensions ASME B16.5 - Class 150			Weight


DN	Size	L	L1	H (Close)	H (Open)	G	d1	C	ØD	ØK	n - Ød	kg
65	2-1/2"	190	270	155	190	2-1/2"	85	120	178	139,7	4-19	12,6
80	3"	190	270	155	190	2-1/2"	85	120	190,5	152,4	4-19	13

Pressure Rate	:	PN10-16
Sıze Range	:	DN65-DN80
Flange Ends	:	TS 810 / DIN 2501 / BS 4504 / ASA 125 / ASA 150
Coupling	:	DIN Storz, Morris, Nakajima, NH, GOST
