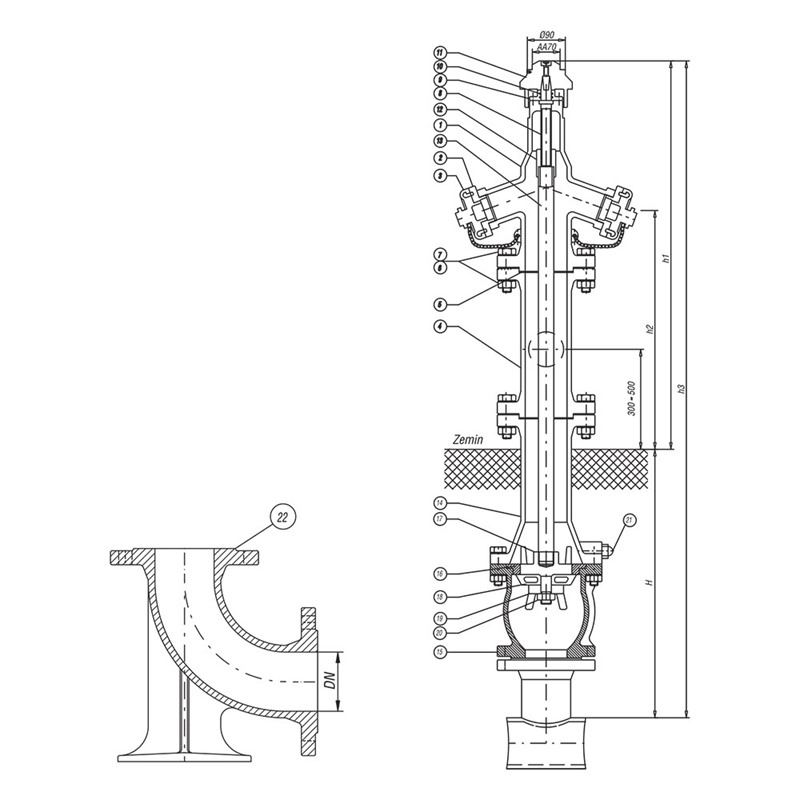

| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | GG 25 / GGG-40-50 |
| 2 | Coupling | Al Alloy |
| 3 | Coupling Cover | Al Alloy |
| 4 | Upper Pipe | GG 25 / GGG-40-50 |
| 5 | Gasket | EPDM |
| 6 | Bolt | 5 D/SS |
| 7 | Nut | 5 D/Stainless Steel |
| 8 | Stem | AISI 304/ Ms-58 |
| 9 | Gland | Ms-58 / Bronze |
| 10 | O-ring | EPDM |
| 11 | Cap | GG 25 |
| 12 | Stem Nut | Ms-58 / Bronze |
| 13 | Shaft | St 37 |
| 14 | Lower Pipe | GG 25 / GGG-40-50 |
| 15 | Lower Body | GG 25 / GGG-40-50 |
| 16 | Disc | Ms-58 / Bronze |
| 17 | Cone Upper Part | GG 25 / GGG-40-50 |
| 18 | Valve Cone | GG 25 + EPDM |
| 19 | Cone Lower Part | GG 25 / GGG-40-50 |
| 20 | Nut | 5D / Stainless Steel |
| 21 | Drainage Plug | Ms 58 / Bronze |
| 22 | 90° Elbow | GG 25/ GGG-40/50 |
| DN | h1 min. | h2 min. | h3 + 80 | H | Stock Code |
|---|---|---|---|---|---|
| 80 | 1030 | 630 | 1435 | 550 | |
| 1750 | 900 | ||||
| 100 | 2150 | 1250 | |||
| 2400 | 1500 |
| DN | Outlet Dimension | Debi / DIN 3222 Flowrate (m/h)*3 | Stock Code | |
|---|---|---|---|---|
| Single | Double | |||
| 80 | 2" | 110 | 140 | |
| 100 | 2 1/2" | 120 | 210 | |
| Pressure Rate | : | PN10/16 |
| Size Range | : | DN80-DN100 |
| Flange Ends | : | DIN 3222 / TS 2821-1a |
