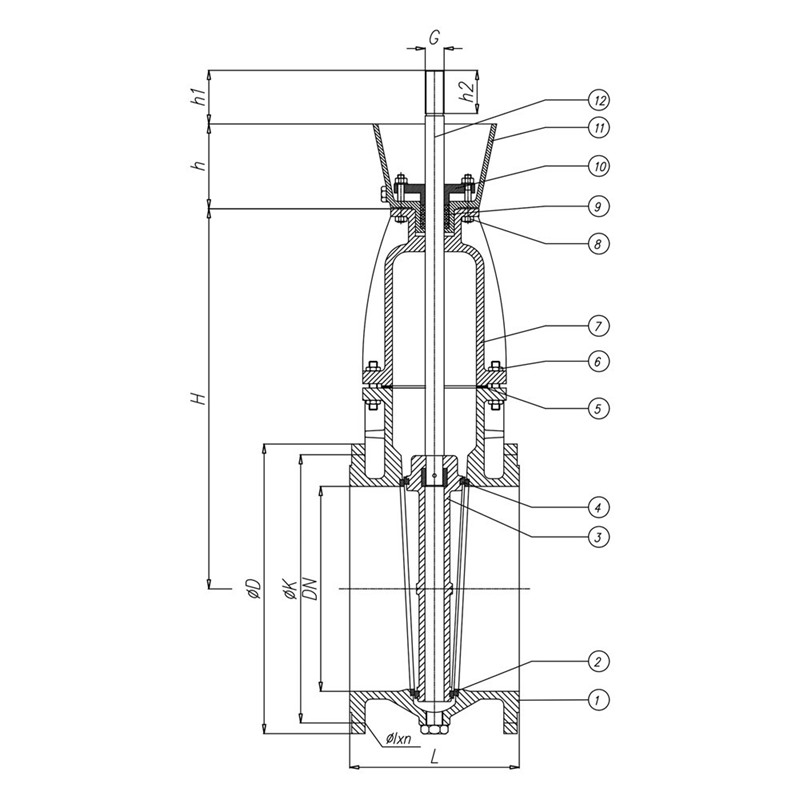

| No | Part name | Material |
|---|---|---|
| 1 | Body | GGG 40 |
| 2 | Body seat | Bronze Rg5 |
| 3 | Wedge | GGG 40 |
| 4 | Wedge seat | Bronze Rg5 |
| 5 | Gasket | Klingerite |
| 6 | Bolt/Nut | Galvanized Steel |
| 7 | Bonnet | GGG 40 |
| 8 | Bolt/Nut | Galvanized Steel |
| 9 | Packing | Graphite |
| 10 | Gland | GGG 40 |
| 11 | Dock | GGG 40 |
| 12 | Stem | 55 304 |
| Valve Dimensions | Flange Dimensions EN 1092 - PN10 | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| DN | L | H | h | h1 | h2 | G | ØD | Øk | Ølxn | |
| 100 | 190 | 230 | 100 | 100 | 50 | 1/2" | 220 | 180 | Ø19x8 | |
| 125 | 200 | 262 | 100 | 100 | 50 | 1/2" | 250 | 210 | Ø19x8 | |
| 150 | 210 | 310 | 100 | 100 | 50 | 112" | 285 | 240 | Ø23x8 | |
| 200 | 230 | 435 | 160 | 110 | 60 | 5/8" | 340 | 295 | Ø23x8 | |
| 250 | 250 | 505 | 160 | 110 | 60 | 5/8" | 395 | 350 | Ø23x12 | |
| 300 | 270 | 615 | 160 | 110 | 60 | 3/4" | 445 | 400 | Ø23x12 | |
| 350 | 290 | 675 | 200 | 110 | 60 | 718" | 505 | 460 | Ø23x16 | |
| 400 | 310 | 755 | 200 | 110 | 60 | 7/8" | 565 | 515 | Ø28x16 | |
| 500 | 350 | 950 | 280 | 140 | 75 | 1118" | 670 | 620 | Ø28x20 | |
| 600 | 390 | 1110 | 280 | 140 | 75 | 1118" | 780 | 725 | Ø31x20 | |
| 700 | 430 | 1370 | 280 | 150 | 80 | 1114" | 895 | 840 | Ø31x24 | |
| 800 | 470 | 1445 | 280 | 150 | 80 | 1112" | 1015 | 950 | Ø34x24 | |
| Design | : | DIN 1171 / DIN 3352 |
| Face to face | : | DIN 3202-F5 / EN 558-S15 |
| Flange end | : | EN 1092 |
| Test | : | EN 12266 |
