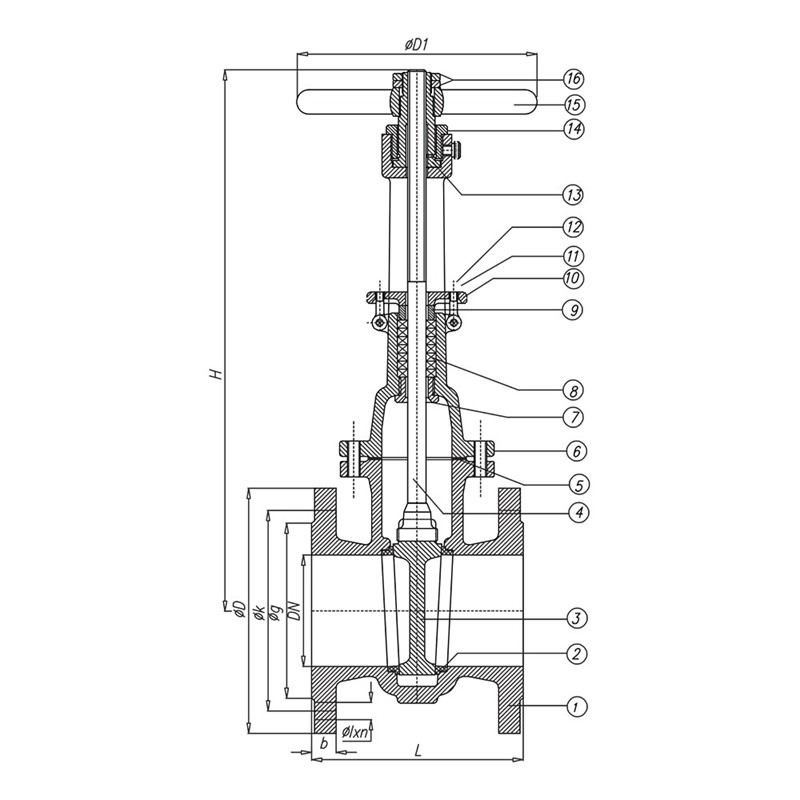

| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | GS-C25(GP240GH)(1.0619)(A216 WCB)/A217 WC6, WC9 / SS304 / SS316 |
| 2 | Seats | 13Cr/Stellite 12/SS304/SS316 |
| 3 | Wedge | GS-C25(GP240GH)(1.0619)(A216 WCB)/A217 WC6, WC9 / SS304 / SS316 |
| 4 | Stem | AlSl420(X20Cr13)(A182 F6)SS304/SS316 |
| 5 | Gasket | Graphite / Graphite + SS304 |
| 6 | Bonnet | GS-C25(GP240GH)(1.0619)(A216 WCB)/A217 WC6, WC9 / SS304 / SS316 |
| 7 | Back Seat | 13Cr(X20Cr13)(A182 F6)SS304/SS316 |
| 8 | Packing | Graphite / PTFE |
| 9 | Packing Nut | GS-C25(GP240GH)(1.0619)(A216 WCB)/A217 WC6, WC9 / SS304 / SS316 |
| 10 | Gland Flange | GS-C25(GP240GH)(1.0619)(A216 WCB)/A217 WC6, WC9 / SS304 / SS316 |
| 11 | Eye Bolt | Cr. Mo Alaşımlı Çelik/Cr Mo Alloy Steel A193 Gr. B7 |
| 12 | Nut | Carbon Steel A194 Gr. 2H |
| 13 | Yoke Nut | Bronze |
| 14 | Centering Nut | Bronze |
| 15 | Handwheel | Ductile Iron |
| 16 | Handwheel Nut | SS420 / Bronze |
| Nominal Pressure | Nominal Diameter | Valve Dimensions DIN EN 1171 DIN 3352 | PN64 Flange Dimensions EN 1092-1 | Weight | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| PN | DN | L | H | ØM | ØD | Øk | Øg | b | Ø1xn | kg |
| 64 | 50 | 250 | 390 | 200 | 180 | 135 | 102 | 26 | Ø22x4 | 20 |
| 65 | 290 | 445 | 200 | 205 | 160 | 122 | 26 | Ø22x8 | 25 | |
| 80 | 310 | 505 | 250 | 215 | 170 | 138 | 28 | Ø22x8 | 30 | |
| 100 | 350 | 595 | 250 | 250 | 200 | 162 | 30 | Ø26x8 | 48 | |
| 125 | 400 | 620 | 250 | 295 | 240 | 188 | 34 | Ø30x8 | 62 | |
| 150 | 450 | 780 | 355 | 345 | 280 | 218 | 36 | Ø33x8 | 84 | |
| 200 | 550 | 1095 | 355 | 415 | 345 | 285 | 42 | Ø36x12 | 120 | |
| 250 | 650 | 1290 | 450 | 470 | 400 | 345 | 46 | Ø36x12 | 225 | |
| 300 | 750 | 1450 | 500 | 530 | 460 | 410 | 52 | Ø36x16 | 280 | |
| 350 | 850 | 1550 | 600 | 600 | 525 | 465 | 56 | Ø39x16 | 350 | |
| 400 | 950 | 1720 | 600 | 670 | 585 | 435 | 60 | Ø42x16 | 490 | |
| 500 | 1150 | 2080 | 660 | 800 | 705 | 615 | 68 | Ø48x20 | 725 | |
| 600 | 1350 | 2520 | 720 | 930 | 820 | 735 | 76 | Ø56x20 | 1350 | |
| Design | : | EN 1171, DIN 3352 |
| Face to Face | : | EN 558 Serie 26 DIN3202 F7 |
| Pressure Rate | : | PN64 |
| Size Range | : | DN50-DN600 |
| Temperature | : | -20....+400°C |
| Flange Ends | : | DIN EN 1092-2/B |
| Tests | : | DIN EN 12266 |
