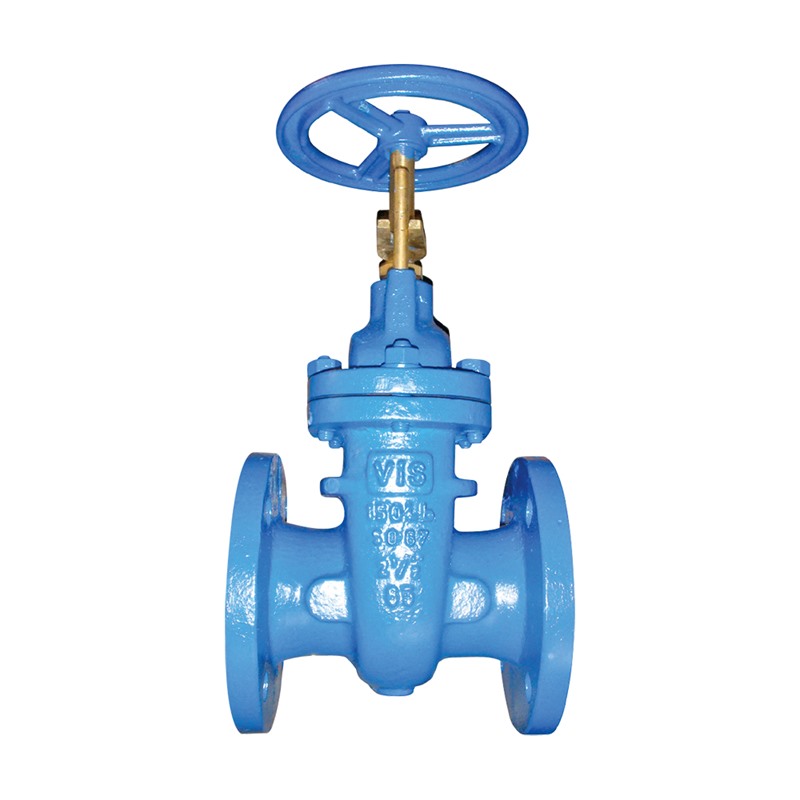

Gate Valve With Stuffing Box & Indicator

PRODUCT FEATURES

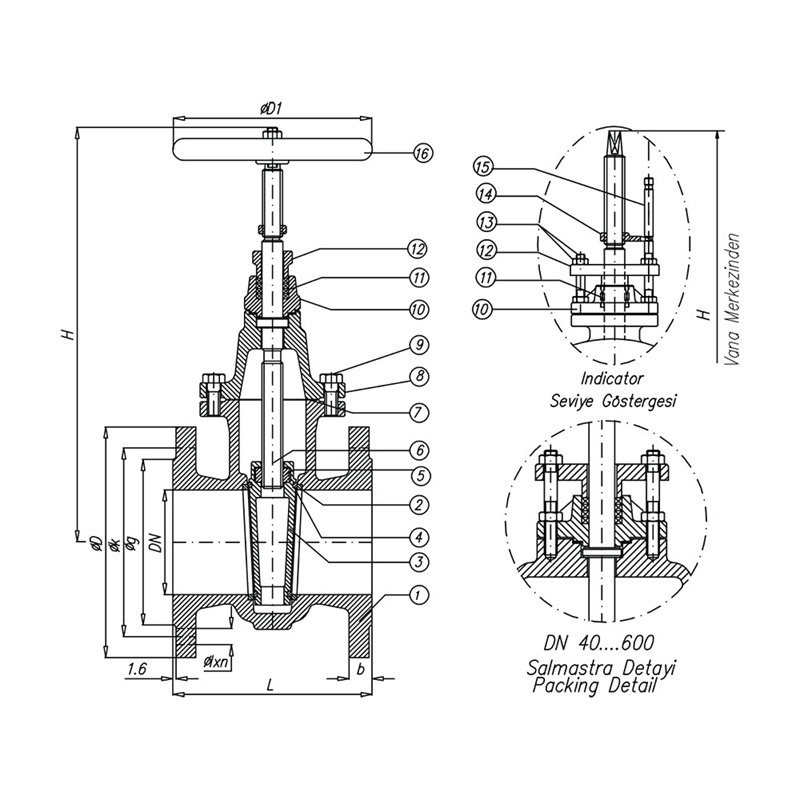

Nominal Pressure	Nominal Diameter	Valve Dimensions			Flange Ends Dimensionsi				Weight
ANSI	DN	L	H	D1	D	k	g	Øxn	kg
C150	40	165	195	160	127	98,5	73	16x4	13
	50	178	235	160	152	121	92	19x4	15
	65	191	260	160	178	140	105	19x4	19
	80	203	280	160	191	152	127	19x4	22
	100	229	310	200	229	191	157	19x8	30
	125	254	400	200	254	216	186	22x8	45
	150	267	435	250	279	241	216	22x8	55
	200	292	560	250	343	298	270	22x8	95
	250	330	650	315	406	362	324	25x12	140
	300	356	780	315	483	432	381	25x12	200
	350	381	860	400	533	476	413	29x12	250
	400	406	930	400	597	530	470	29x16	250
	500	457	1120	500	699	635	584	32x20	560
	600	508	1320	500	813	749	692	35x20	700
