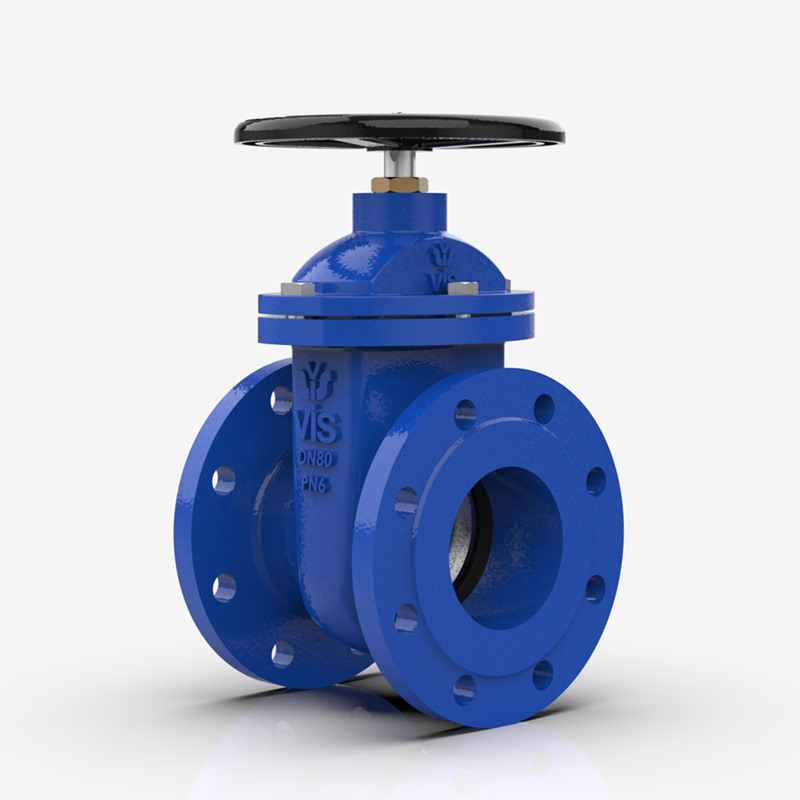

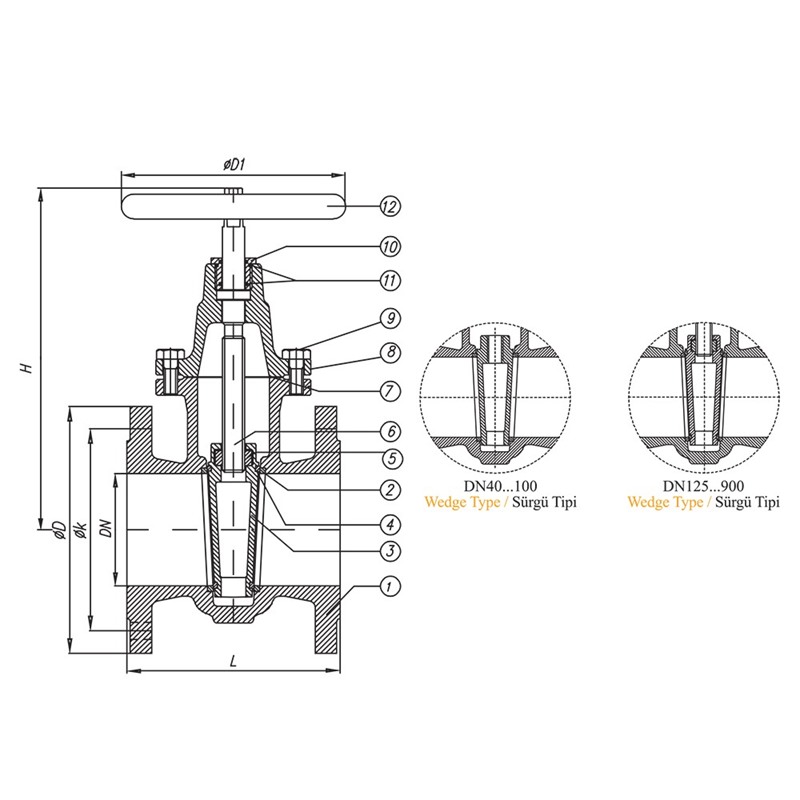

| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | GG 25 / GGG-40 / GGG40.3 /GSC25 / Bronze RG5, RG7, RG10, SS304, SS316 |
| 2 | Body Seat | Ms 58/Bronze/SS304/SS316 |
| 3 | Wedge | GG 25 / GGG-40 / GGG40.3 / GSC25 / Bronze RG5, RG7, RG10, SS304, SS316 |
| 4 | Wedge Seat | Ms 58/Bronze /S.S/ AISI 304-316 |
| 5 | Stem Nut | Ms 58/Bronze /GGG 40 |
| 6 | Stem | SS420/Ms 58/Bronze/SS304/SS316 |
| 7 | Gasket | EPDM/FRANZELİT/KLİGERİT/PTFE |
| 8 | Bonnet | GG 25 / GGG-40 |
| 9 | Bolt | 5 D / S.S |
| 10 | Packing nut | Ms 58/Bronze/S.S |
| 11 | O-Ring | EPDM |
| 12 | Handwheel | GG 20 |
| Nominal Pressure | Nominal Diameter | Valve Dimensions DIN EN 1171 | PN10 Flange Dimensions DIN 2501 - EN 1092-2 | Weight | |||
|---|---|---|---|---|---|---|---|
| PN | DN | L | H | D1 | D | k | kg |
| 6 | 40 | 140 | 157 | 160 | 130 | 100 | 7 |
| 50 | 150 | 190 | 160 | 140 | 110 | 8 | |
| 65 | 170 | 210 | 160 | 160 | 130 | 11,5 | |
| 80 | 180 | 230 | 160 | 190 | 150 | 15 | |
| 100 | 190 | 260 | 200 | 210 | 170 | 20 | |
| 125 | 200 | 365 | 250 | 240 | 200 | 33 | |
| 150 | 210 | 375 | 250 | 265 | 225 | 39 | |
| Design | : | EN 1171 |
| Face to Face | : | EN 558 Serie 14 (DN3202 F4) |
| Pressure Rate | : | PN4 |
| Size Range | : | DN40-DN200 |
| Temperature | : | -10....+120 ºc |
| Flange Ends | : | DIN EN 1092-2/B |
| Test | : | EN 12266 |
