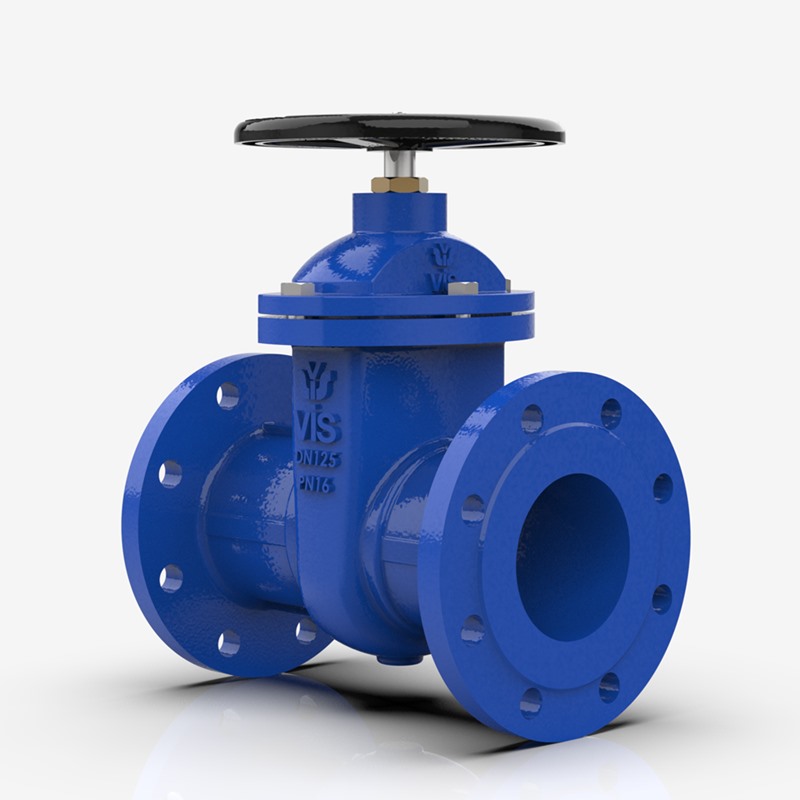

| Pressure Range | Cast Iron | Ductlle Iron |
|---|---|---|
| DN40-DN600 DN700-DN1000 | PN16 PN10 | PN25 PN16 |
| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | GG 25/GGG-40/GGG40.3/GSC25/Bronze RG5, RG7, RG10/SS304, SS316 |
| 2 | Body Seat | Ms58/Bronze/SS304, SS316 |
| 3 | Wedge | GG 25/GGG-40/GGG40.3/GSC25/ Bronze RG5, RG7, RG10/SS304, SS316 |
| 4 | Wedge Seat | Ms58 / Bronze / SS304, SS316 |
| 5 | Stem Nut | Ms 58 / Bronze /S.S |
| 6 | Stem | SS420/Ms58/Som59/CuZn35Ni/ CuSn8,CuSn10/SS304,SS316 |
| 7 | Gasket | EPDM / NBR / Klingerit / Graphite |
| 8 | Bonnet | GG 25/GGG-40/GGG40.3/GSC25/ Bronze RG5, RG7, RG10/SS304, SS316 |
| 9 | Bolt | 8.8 / A2 / A4 |
| 10 | Packing Nut | Ms 58/Bronze/S.S |
| 11 | O-Ring | EPDM |
| 12 | Packing | Graphite |
| 13 | Handwheel | GG 20 |

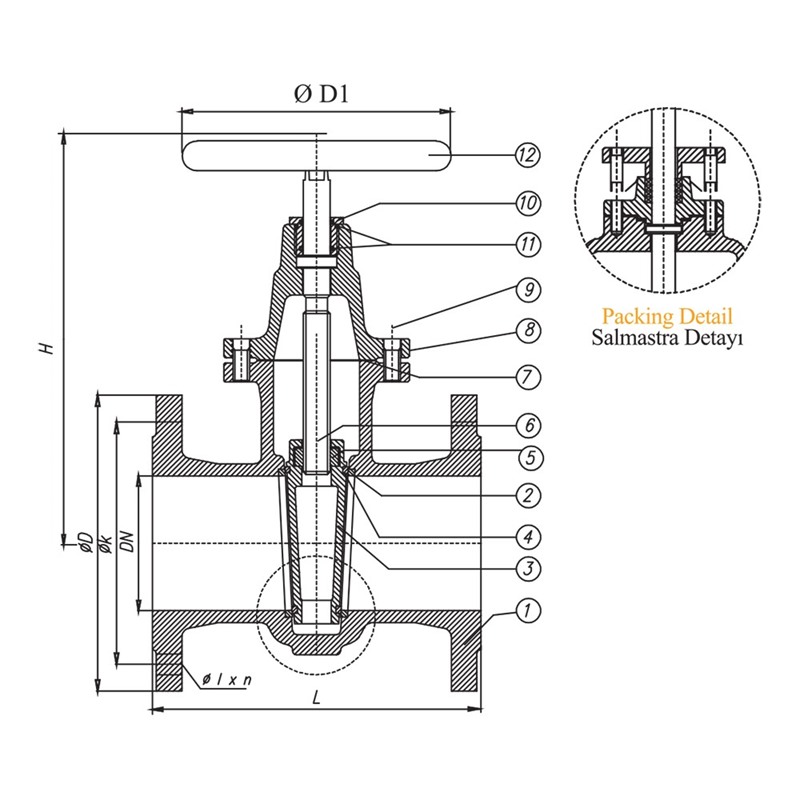

| Nominal Pressure | Nominal Diameter | Valve Dimensions TS EN 1071 DIN3352/2-F4 | PN16 Flange Dimensions EN 1092-2 | PN25 Flange Dimensions EN 1092-2 | PN40 Flange Dimensions EN 1092-2 | Weight | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PN | DN | L | H | D1 | Ølxn | D | k | Ølxn | D | k | Ølxn | D | k | Ølxn | kg |
| PN 10 / 16 / 25 / 40 | 40 | 240 | 215 | 200 | Ø19x4 | 150 | 110 | Ø18x4 | 150 | 110 | Ø18x4 | 150 | 110 | Ø18x4 | 13,3 |
| 50 | 250 | 220 | 200 | Ø19x4 | 165 | 125 | Ø18x4 | 165 | 125 | Ø18x4 | 165 | 125 | Ø18x4 | 15,3 | |
| 65 | 270 | 265 | 250 | Ø19x4 | 185 | 145 | Ø18x4 | 185 | 145 | Ø18x8 | 185 | 145 | Ø18x8 | 22,2 | |
| 80 | 280 | 300 | 250 | Ø19x8 | 200 | 160 | Ø18x8 | 200 | 160 | Ø18x8 | 200 | 160 | Ø18x8 | 26,8 | |
| 100 | 300 | 320 | 315 | Ø19x8 | 220 | 180 | Ø18x8 | 220 | 190 | Ø22x8 | 235 | 190 | Ø22x8 | 36 | |
| 125 | 325 | 370 | 315 | Ø19x8 | 250 | 210 | Ø18x8 | 250 | 220 | Ø26x8 | 270 | 220 | Ø26x8 | 47 | |
| 150 | 350 | 415 | 315 | Ø23x8 | 285 | 240 | Ø22x8 | 285 | 250 | Ø26x8 | 300 | 250 | Ø26x8 | 59 | |
| 200 | 400 | 590 | 400 | Ø23x8 | 340 | 295 | Ø22x12 | 340 | 310 | Ø26x12 | 375 | 320 | Ø30x12 | 141 | |
| 250 | 450 | 675 | 500 | Ø23x12 | 395 | 350 | Ø26x12 | 400 | 370 | Ø30x12 | 450 | 385 | Ø33x12 | 285 | |
| 300 | 500 | 750 | 500 | Ø23x12 | 445 | 400 | Ø26x12 | 455 | 430 | Ø30x16 | 515 | 450 | Ø33x16 | 371 | |
| 350 | 550 | 870 | 500 | Ø23x16 | 505 | 460 | Ø26x16 | 520 | 490 | Ø33x16 | 580 | 510 | Ø36x16 | 460 | |
| 400 | 600 | 950 | 620 | Ø31x16 | 565 | 515 | Ø30x16 | 580 | 550 | Ø36x16 | 660 | 585 | Ø39x16 | 751 | |
| 500 | 700 | 1200 | 800 | Ø34x20 | 670 | 620 | Ø22x16 | 715 | 660 | Ø36x20 | 755 | 670 | Ø42x20 | 1143 | |
| 600 | 800 | 1330 | 800 | Ø37x20 | 780 | 725 | Ø33x20 | 840 | 770 | Ø39x20 | 890 | 795 | Ø48x20 | 1330 | |
| 700 | 900 | 1530 | 800 | Ø37x24 | 895 | 840 | Ø36x20 | 910 | 875 | Ø42x24 | 995 | 900 | Ø48x24 | 195 | |
| 800 | 1000 | 1690 | 800 | Ø41x24 | 1015 | 950 | Ø36x24 | 1025 | 990 | Ø48x24 | 1140 | 1030 | Ø56x24 | 2300 | |
| 900 | 1100 | 1925 | 800 | Ø41x28 | 1115 | 1050 | Ø39x24 | 1125 | 1090 | Ø48x28 | 1250 | 1140 | Ø56x28 | 3400 | |
| 1000 | 1200 | 2160 | 800 | Ø44x28 | 1230 | 1160 | Ø42x28 | 1255 | 1210 | Ø56x28 | 1360 | 1250 | Ø56x28 | 4300 | |
| Design | : | EN 1171 |
| Face to Face | : | EN 558 Serie 15 (DN3202 F5) |
| Pressure Range | : | PN10-PN16-PN25-PN40 |
| Size Range | : | DN40-DN1000 |
| Temperature | : | -20....+120 oC |
| Flange Ends | : | DIN EN 1092-2/B |
| Tests | : | EN 12266 |
