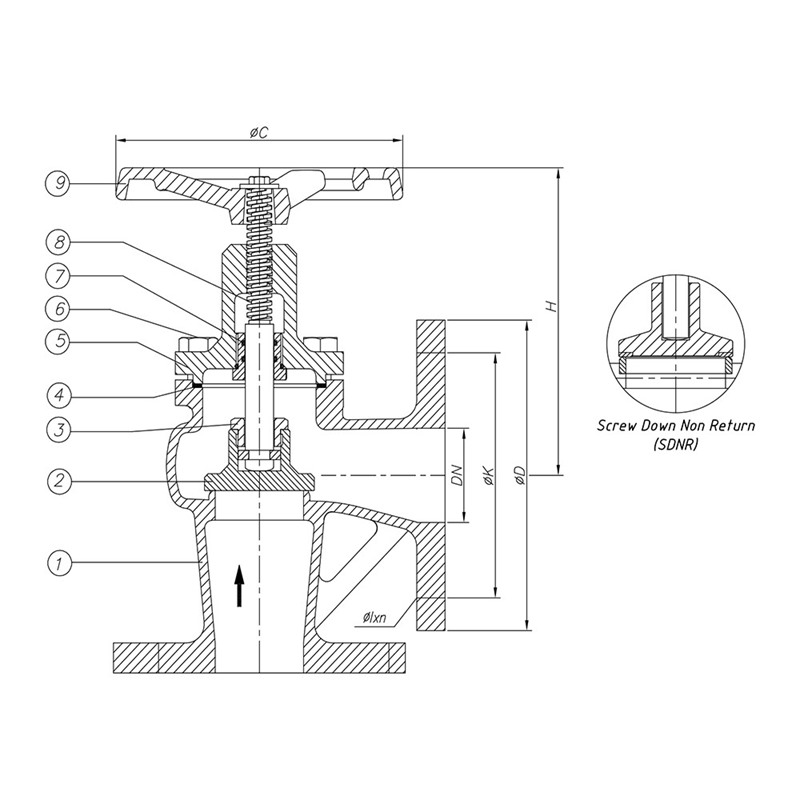

| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | Aluminum Alloy |
| 2 | Disc | Aluminum Alloy |
| 3 | Disc Nut | SS 304 |
| 4 | Gasket | Klingerite |
| 5 | Bonnet | Aluminum Alloy |
| 6 | Bolt | A2 (SS304) |
| 7 | O-Ring | NBR |
| 8 | Stem | SS304 |
| 9 | Handwheel | Aluminum Alloy |
| DN | L | H | C | D | K | Øxn |
|---|---|---|---|---|---|---|
| 15 | 65 | 130 | 120 | 95 | 65 | 14x4 |
| 20 | 65 | 135 | 120 | 105 | 75 | 14x4 |
| 25 | 70 | 150 | 140 | 115 | 85 | 14x4 |
| 32 | 90 | 170 | 140 | 140 | 100 | 18x4 |
| 40 | 90 | 170 | 140 | 150 | 110 | 18x4 |
| 50 | 105 | 185 | 160 | 165 | 125 | 18x4 |
| 65 | 115 | 240 | 180 | 185 | 145 | 18x4 |
| 80 | 125 | 260 | 200 | 200 | 160 | 18x8 |
| 100 | 145 | 280 | 225 | 220 | 180 | 18x8 |
| Design | : | Short Pattern |
| Face to Face | : | VisVana |
| Design Pressure | : | PN 16 |
| Size Range | : | DN15-DN100 |
| Flange Ends | : | EN 1092 |
| Options | : | SDNR Type |
| Tests | : | EN12266 |
