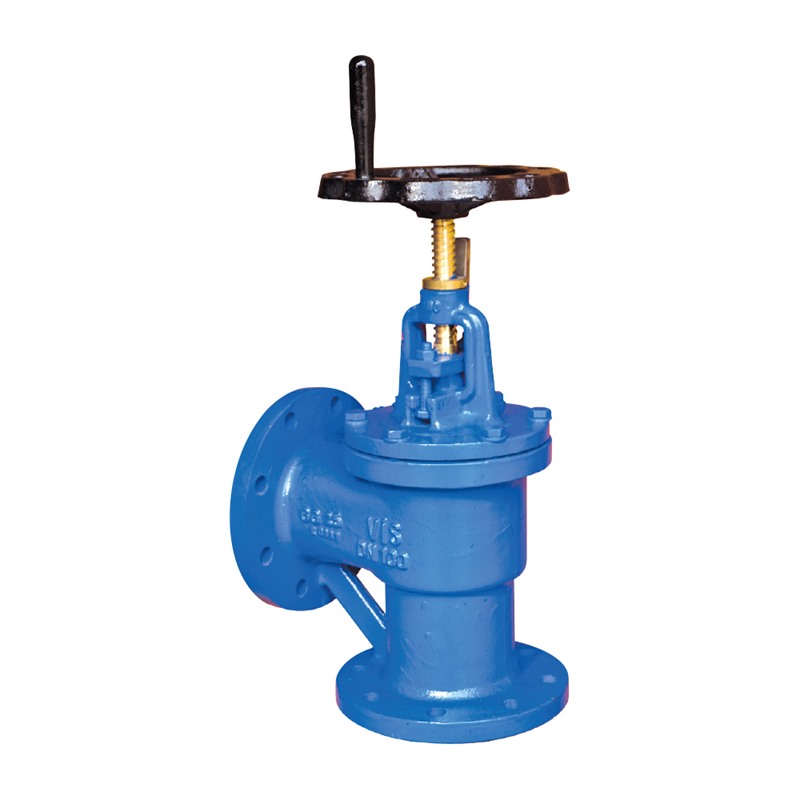

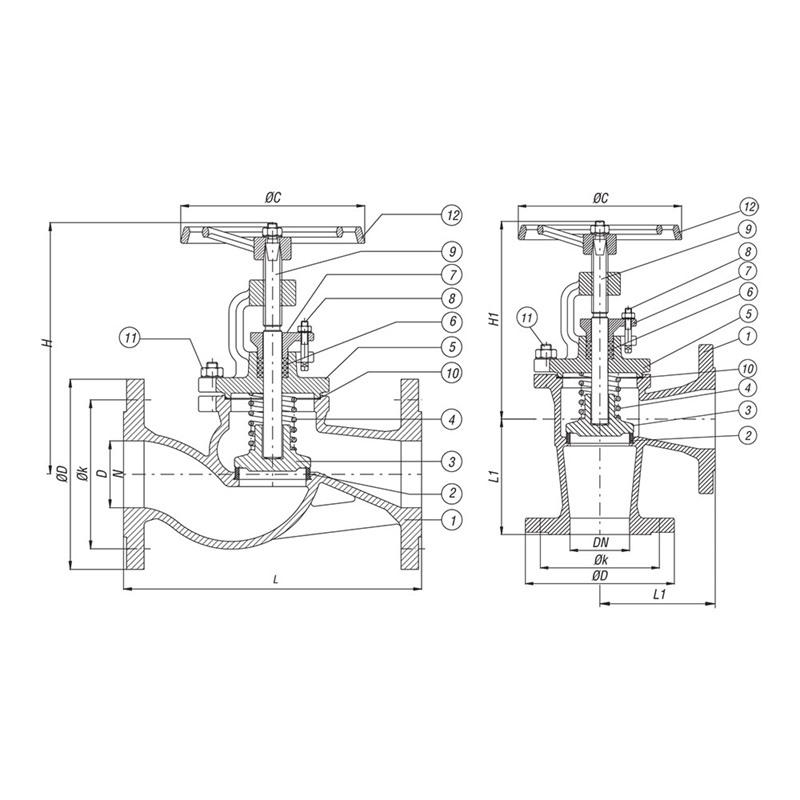

| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | GG 25/GGG40/GGG40,3/GSC25/Bronze/ RG5/RG7/CuSn10/304/316/Dublex |
| 2 | Seat Ring | 304 / 316 / 13Cr /Bronze / RG5 |
| 3 | Disc | 304 / 316 / 13Cr / Bronze / RG5 |
| 4 | Spring | 1.4301 SS |
| 5 | Bonnet | GG25/GGG40/GGG40,3/GSC25/Bronze/ RG5/RG7/CuSn10/304/316/Dublex |
| 6 | Packing | Graphite |
| 7 | Gland | GG 25/GGG40/GGG40,3/GSC25/Bronze/ RG5/RG7/CuSn10/304/316/Dublex |
| 8 | T Stud, Nut | 5,6-8 |
| 9 | Stem | 1.4021/Cu Sn8 |
| 10 | Gasket | Klingerite/Graphite |
| 11 | Stud, Nut | 5,6-8 |
| 12 | Handwheel | GG 25 |
| Nominal Diameter | Valve Dimensions | PN16 Flange Dimensions | Weight | PN40 Flanş Ölçüleri | Weight | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| DN | L1 | H1 | Strok | ØC | ØD | Øk | kg | ØD | Øk | kg |
| 15 | 90 | 155 | 7 | 120 | 95 | 65 | 4 | 95 | 65 | 4 |
| 20 | 95 | 155 | 7 | 120 | 105 | 75 | 4 | 105 | 75 | 5 |
| 25 | 100 | 170 | 9 | 140 | 115 | 85 | 5 | 115 | 85 | 6 |
| 32 | 105 | 175 | 11 | 140 | 140 | 100 | 7 | 140 | 100 | 8 |
| 40 | 115 | 195 | 15 | 160 | 150 | 110 | 11 | 150 | 110 | 13 |
| 50 | 125 | 205 | 18 | 160 | 165 | 125 | 13 | 165 | 125 | 15 |
| 65 | 145 | 225 | 23 | 180 | 185 | 145 | 19 | 185 | 145 | 23 |
| 80 | 155 | 250 | 28 | 200 | 200 | 160 | 24 | 200 | 160 | 27 |
| 100 | 175 | 305 | 35 | 225 | 220 | 180 | 33 | 235 | 190 | 39 |
| 125 | 200 | 315 | 43 | 250 | 250 | 210 | 48 | 270 | 220 | 58 |
| 150 | 225 | 380 | 50 | 300 | 285 | 240 | 62 | 300 | 250 | 75 |
| 200 | 275 | 425 | 68 | 400 | 340 | 295 | 128 | 375 | 320 | 155 |
| 250 | 325 | 470 | 80 | 520 | 405 | 355 | 135 | 450 | 385 | 162 |
| 300 | 375 | 675 | 100 | 520 | 460 | 410 | 270 | 515 | 450 | 320 |
| Nominal Diameter | : | DN15-DN300 |
| Nominal Pressure | : | PN16 |
| Ends | : | DIN 2533 (Flanş) |
| Dimensions | : | DIN 3356/2-F1 (Straight) DIN 3356/2-F32 (Angle) TS 10873 |
