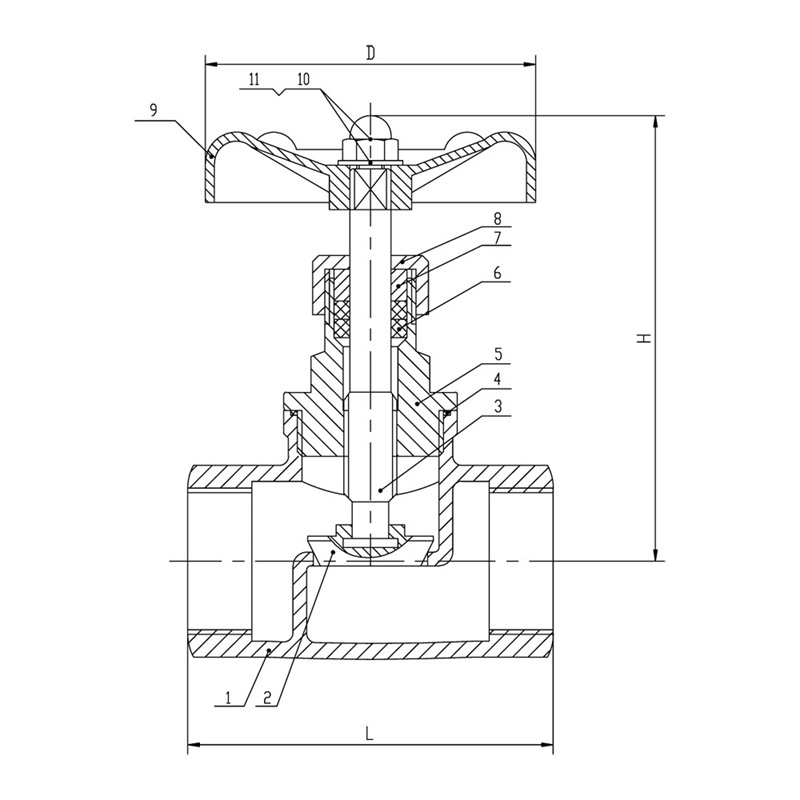

| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | CF8 / CF8M |
| 2 | Disc | CF8 / CF8M |
| 3 | Stem | SS 304 / SS 316 |
| 4 | Gasket | PTFE |
| 5 | Bonnet | CF8 / CF8M |
| 6 | Packing | PTFE |
| 7 | Gland | SS |
| 8 | Gland Nut | SS |
| 9 | Handwheel | GG 25 |
| 10 | Nameplate | SS |
| 11 | Nut | SS |
| Dimensions | |||||
|---|---|---|---|---|---|
| DN | L | D | H | Rc | Stock Code |
| 15 | 59 | 64 | 90 | 1/2" | |
| 20 | 69 | 64 | 95 | 3/4" | |
| 25 | 79 | 73 | 105 | 1" | |
| 32 | 98 | 76 | 125 | 1-1/4" | |
| 40 | 104 | 98 | 135 | 1-1/2" | |
| 50 | 119 | 98 | 145 | 2" | |
| Pressure Rate | : | 20 Bar |
| Size Range | : | DN15-DN50 |
| Ends | : | BSPT |
| Temperature | : | -20~180 °C |
| Application | : | Water, Oil and Gas. |
