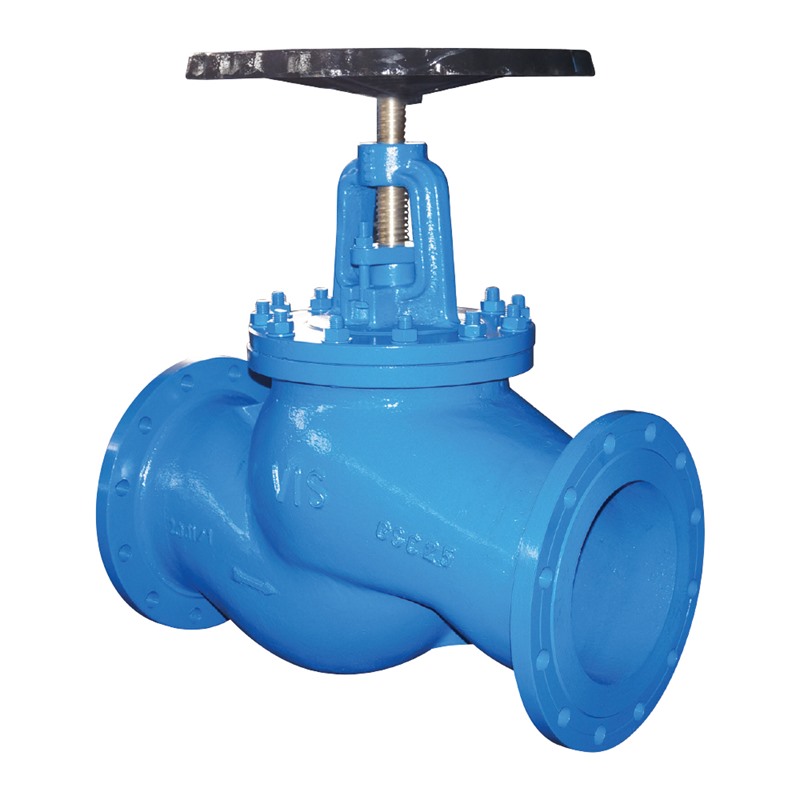

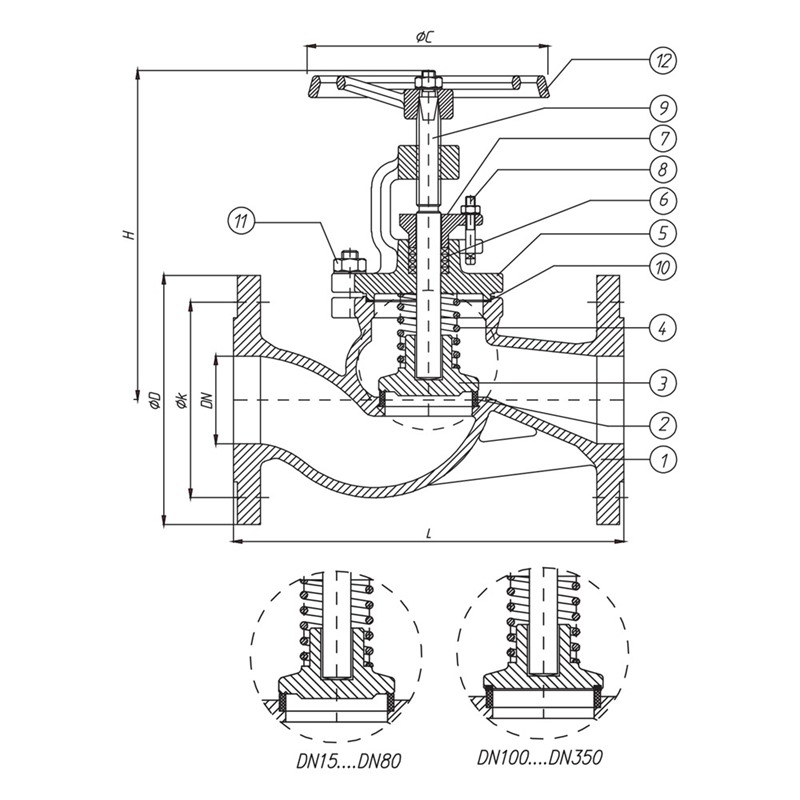

| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | GG 25/GGG40/GGG40,3/GSC25/Bronze/RG5/RG7/CuSn10/304/316/Dublex |
| 2 | Seat Ring | 304/316/13Cr/Bronze/RG5/Dublex |
| 3 | Disc | 304/316/13Cr/Bronze/RG5/Dublex |
| 4 | Spring | 1.4301 SS |
| 5 | Bonnet | GG 25/GGG40/GGG40,3/GSC25/Bronze/RG5/RG7/CuSn10/304/316/Dublex |
| 6 | Packing | Graphite |
| 7 | Gland | GG 25/GGG40/GGG40,3/GSC25/Bronze/RG5/RG7/CuSn10/304/316/Dublex |
| 8 | T Stud,Nut | 5.6/8 |
| 9 | Stem | Ms-58 Brass |
| 10 | Gasket | Klingerite/Graphite |
| 11 | Stud, Nut | 5.6/8 |
| 12 | Handwheel | GG 25 |
| Nominal Pressure | Nominal Diameter | Valve Dimensions DIN 3356/2 DIN EN 558-1 | PN10 Flange Dimensions DIN EN 1092 | Weight | PN16 Flange Dimensions DIN EN 1092 | Weight | PN25 Flange Dimensions DIN EN 1092 | Weight | PN40 Flange Dimensions DIN EN 1092 | Weight | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PN | DN | L | ØC | H max. | D | k | ØC | kg | D | k | ØC | kg | D | k | ØC | kg | D | k | ØC | kg |
| 10 - 16 - 25 - 40 | 15 | 130 | 120 | 185 | 95 | 65 | Ø14X4 | 3,6 | 95 | 65 | Ø14X4 | 4 | 95 | 65 | Ø14X4 | 4 | 95 | 65 | Ø14X4 | 4,7 |
| 20 | 150 | 120 | 185 | 105 | 75 | Ø14X4 | 4,25 | 105 | 75 | Ø14X4 | 4,25 | 105 | 75 | Ø14X4 | 4,5 | 105 | 75 | Ø14X4 | 5,1 | |
| 25 | 160 | 140 | 195 | 115 | 85 | Ø14X4 | 5,15 | 115 | 85 | Ø14X4 | 5,15 | 115 | 85 | Ø14X4 | 5,75 | 115 | 85 | Ø14X4 | 6,2 | |
| 32 | 180 | 140 | 205 | 140 | 100 | Ø18X4 | 6,75 | 140 | 100 | Ø18X4 | 6,75 | 140 | 100 | Ø18X4 | 6,85 | 140 | 100 | Ø18X4 | 7,2 | |
| 40 | 200 | 160 | 230 | 150 | 110 | Ø18X4 | 9,6 | 150 | 110 | Ø18X4 | 9,6 | 150 | 110 | Ø18X4 | 10,2 | 150 | 110 | Ø18X4 | 11,5 | |
| 50 | 230 | 160 | 240 | 165 | 125 | Ø18X4 | 12 | 165 | 125 | Ø18X4 | 12 | 165 | 125 | Ø18X4 | 12,5 | 165 | 125 | Ø18X4 | 13,2 | |
| 65 | 290 | 180 | 275 | 185 | 145 | Ø18X4 | 16,4 | 185 | 145 | Ø18X4 | 16,4 | 185 | 145 | Ø18X8 | 18,5 | 185 | 145 | Ø18X8 | 21,3 | |
| 80 | 310 | 200 | 290 | 200 | 160 | Ø18X8 | 23,2 | 200 | 160 | Ø18X8 | 23,2 | 200 | 160 | Ø18X8 | 25 | 200 | 160 | Ø18X8 | 26,5 | |
| 100 | 350 | 225 | 350 | 220 | 180 | Ø18X8 | 33 | 220 | 180 | Ø18X8 | 33 | 235 | 190 | Ø22X8 | 35 | 235 | 190 | Ø22X8 | 36,3 | |
| 125 | 400 | 250 | 410 | 250 | 210 | Ø18X8 | 55 | 250 | 210 | Ø18X8 | 55 | 270 | 220 | Ø26X8 | 58 | 270 | 220 | Ø26X8 | 60,5 | |
| 150 | 480 | 285 | 430 | 285 | 240 | Ø22X8 | 87,5 | 285 | 240 | Ø22X8 | 87,5 | 300 | 250 | Ø26X8 | 92 | 300 | 250 | Ø26X8 | 101 | |
| 200 | 600 | 320 | 525 | 340 | 295 | Ø22X8 | 130 | 340 | 295 | Ø22X12 | 136 | 360 | 310 | Ø26X12 | 150 | 375 | 320 | Ø30X12 | 164 | |
| 250 | 730 | 400 | 630 | 400 | 350 | Ø22X12 | 204 | 400 | 355 | Ø26X12 | 212 | 425 | 370 | Ø30X12 | 230 | 450 | 385 | Ø33X12 | 235 | |
| 300 | 850 | 460 | 700 | 455 | 400 | Ø22X12 | 280 | 455 | 410 | Ø26X12 | 290 | 485 | 430 | Ø30X16 | 300 | 515 | 450 | Ø33X16 | 315 | |
| 350 | 980 | 460 | 760 | 505 | 460 | Ø22X16 | 370 | 520 | 470 | Ø26X16 | 380 | 555 | 510 | Ø33X16 | 395 | 580 | 510 | Ø36X16 | 410 | |
| 400 | 1100 | 640 | 840 | 565 | 515 | Ø26X16 | 505 | 580 | 525 | Ø30X16 | 515 | 620 | 550 | Ø36X16 | 530 | 660 | 585 | Ø39X16 | 550 | |
| 450 | 1200 | 640 | 915 | 615 | 565 | Ø26X20 | 705 | 640 | 585 | Ø30X20 | 715 | 670 | 600 | Ø36X20 | 730 | 685 | 610 | Ø39X20 | 750 | |
| 500 | 1250 | 640 | 980 | 670 | 620 | Ø26X20 | 915 | 715 | 650 | Ø33X20 | 925 | 730 | 660 | Ø36X20 | 950 | 755 | 670 | Ø42X20 | 970 | |
| 600 | 1450 | 640 | 1200 | 780 | 725 | Ø30X20 | 1110 | 840 | 770 | Ø36X20 | 1125 | 845 | 770 | Ø39X20 | 1150 | 890 | 795 | Ø48X20 | 1200 | |
| Size | : | DN 15- DN600 |
| Pressure | : | PN 16-25-40 |
| Ends | : | DIN EN 1092 (Flange) |
| Dimensions | : | DIN3356/2-F1-(Straight) |
| DIN EN 558-1-FTF1 | ||
