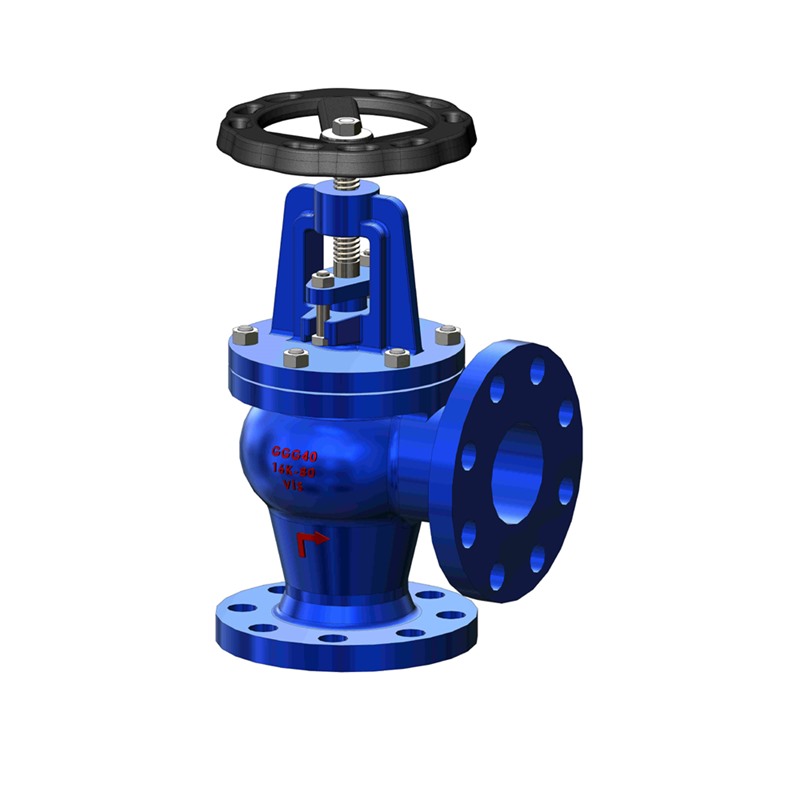

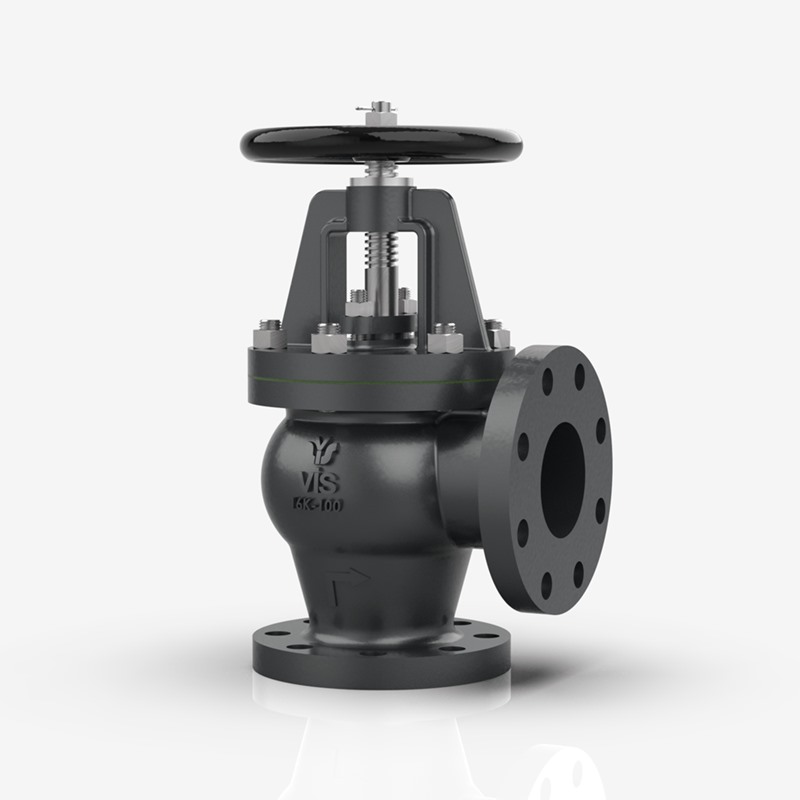

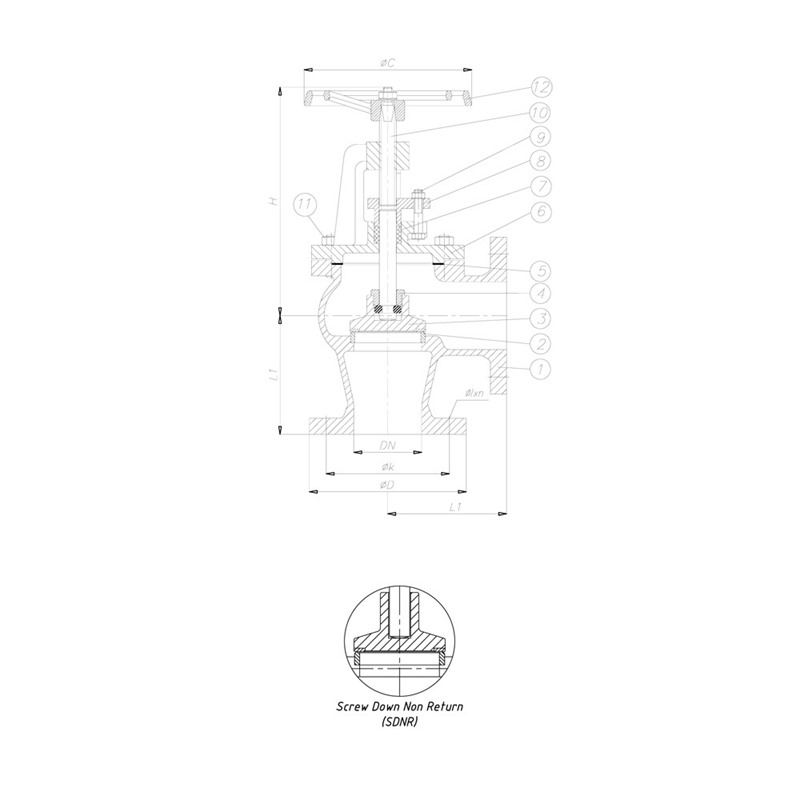

NO | PART NAME | MATERIAL |
|---|---|---|
1 | Body | GG 25 / GGG 40 / GS-C25 |
2 | Seat | Bronze Rg5 / 13Cr / SS 304 |
3 | Disc | GG 25 / GGG 40 / GS-C25 |
4 | Disc Nut | Brass / 13 Cr |
5 | Gasket | Klingerite |
6 | Bonnet | GG 25 / GGG 40 / GS-C25 |
7 | Packing | Graphite |
8 | Gland | GG 25 / GGG 40 / GS-C25 |
9 | Bolt/Nut | Galvanized Steel |
10 | Stem | CuZn35Ni / 13Cr / SS 304 |
11 | Studt/Nut | Galvanized Steel |
12 | Handwheel | GG 25 |
| Nominal Pressure | Nominal Diameter | Valve Dimensions | Weight | IMPA Code | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| JIS | DN | L | H | C | D | K | Øxn | kg | IMPA STOP | IMPA SDNR |
| JIS | 50 | 120 | 230 | 160 | 155 | 120 | Ø19x8 | 11,1 | 750271 | 751161 |
| 65 | 130 | 270 | 180 | 175 | 140 | Ø19x8 | 15,6 | 750272 | 751162 | |
| 80 | 150 | 280 | 200 | 200 | 160 | Ø23x8 | 22,5 | 750273 | 751163 | |
| 100 | 170 | 305 | 220 | 225 | 185 | Ø23x8 | 29,5 | 750274 | 751164 | |
| 125 | 200 | 355 | 250 | 270 | 225 | Ø25x8 | - | 750275 | 751165 | |
| 150 | 225 | 390 | 300 | 305 | 260 | Ø25x12 | - | 750276 | 751166 | |
| 200 | 250 | 485 | 400 | 350 | 305 | Ø25x12 | - | 750277 | - | |
| Design | : | JIS F7310 STOP - JIS F7378 SDNR |
| Pressure Rate | : | 16 K |
| Size Range | : | DN50 - DN200 |
| Flange Ends | : | JIS F7400 |
| Application | : | Aboard ships for hot and cold Water, Oil and Steam. |
