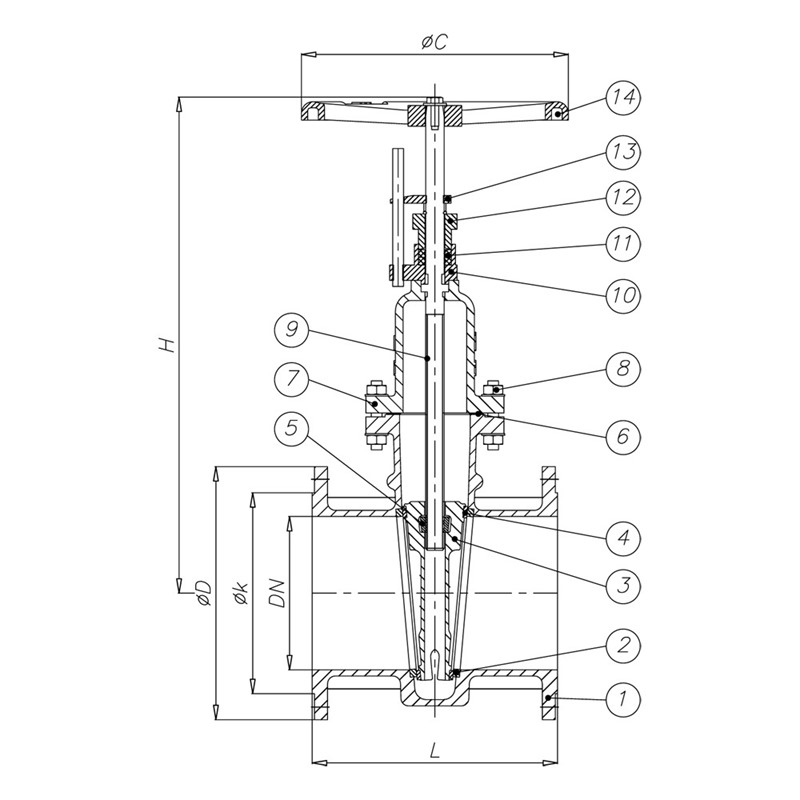

| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | GG25 / GGG40 |
| 2 | Body Seat | SS420 / Bronze |
| 3 | Wedge | GG25 / GGG40 |
| 4 | Wedge Ring | SS420 / Bronze |
| 5 | Stem Nut | GGG40 / Bronze |
| 6 | Gasket | Non - Asbestos |
| 7 | Bonnet | GG25 / GGG40 |
| 8 | Stud, Nut | Galvanized Steel |
| 9 | Stem | SS420 / Brass |
| 10 | Stuffing Box | GG25 / GGG40 |
| 11 | Packing | Graphite |
| 12 | Gland | GG25 / GGG40 |
| 13 | Indicator | Bronze |
| 14 | Handwheel | GG25 |
| Nominal Pressure | Nominal Diameter | Valve Dimensions | |||||
|---|---|---|---|---|---|---|---|
| JIS | DN | L | H | C | D | K | Øxn |
| 16K | 300 | 490 | 815 | 400 | 480 | 430 | Ø27x16 |
| 350 | 540 | 925 | 520 | 540 | 480 | Ø33x16 | |
| 400 | 610 | 1030 | 520 | 605 | 540 | Ø33x16 | |
| Design | : | JIS F7369 |
| Pressure Rate | : | 16K |
| Size Range | : | DN300-DN400 |
| Flange Ends | : | JIS B2240-16K |
| Inspection | : | JIS F7400 |
| Application | : | Water, Air, Gas, Oil |
